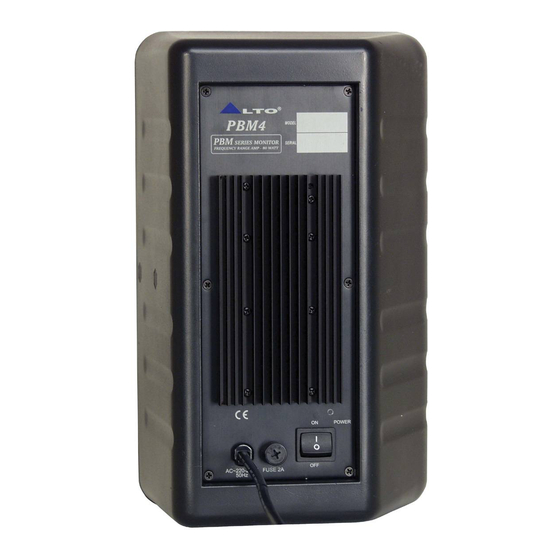

MODEL: PBM4
MODEL: PS 4LA
www.altoproaudio.com
Version 2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PBM4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alto PBM4

Summary of Contents for Alto PBM4

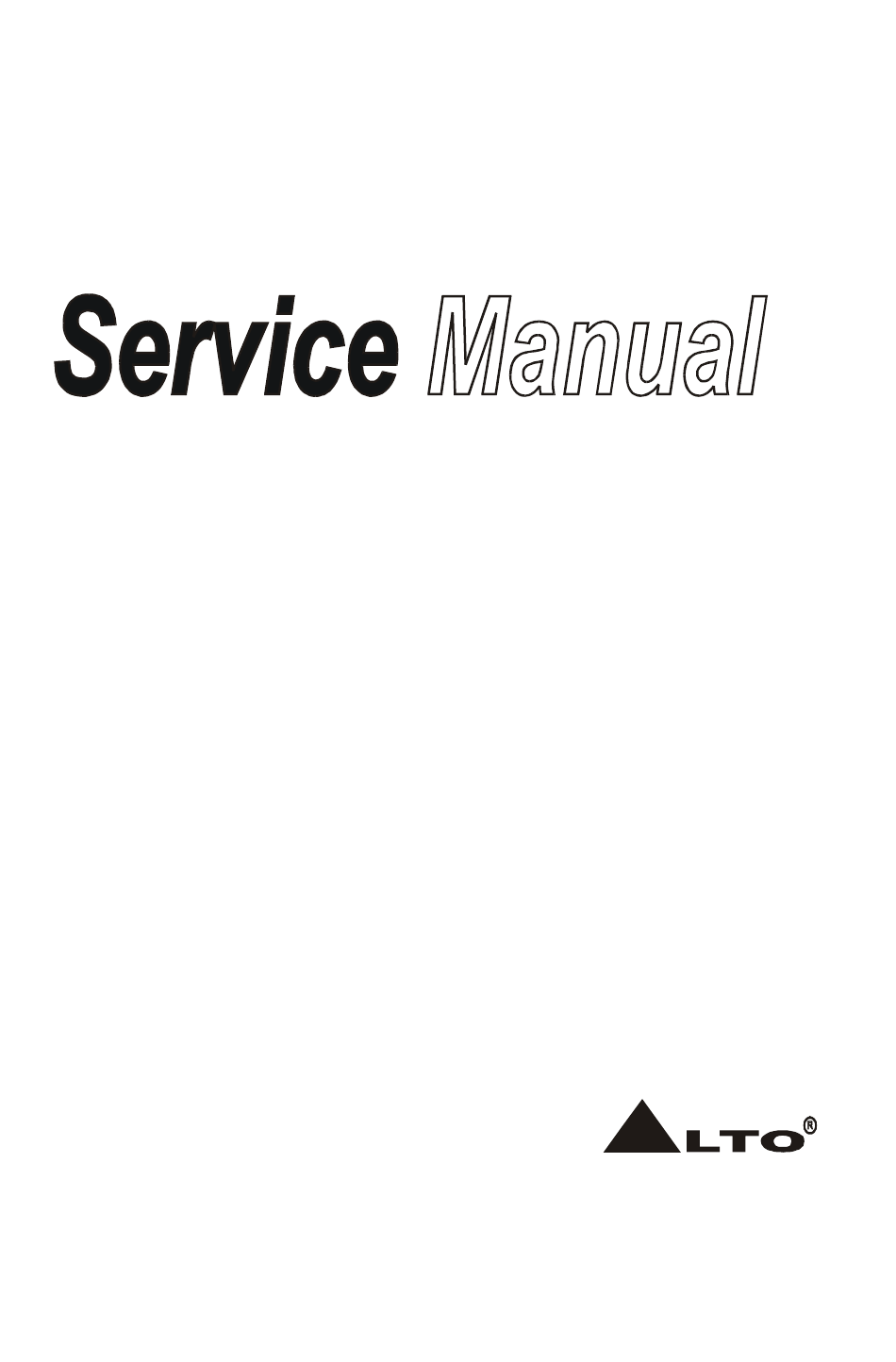

  • Page 1 MODEL: PBM4 MODEL: PS 4LA www.altoproaudio.com Version 2.0...

  • Page 2: Table Of Contents

    CONTENT 1. Function Introduction… … … … … … … … … … … … … … … … … … … … … … … .2 2. Specification… … … … … … … … … … … … … … … … … … … … … … … … … … … .2 3.

  • Page 3: Function Introduction

    1. Function Introduction The PBM4 is professional monitor. It is packed with some key features. For example: there is four MIC/LINE inputs which provided with ultra low noise microphone pre-amplifiers and phantom power at +15V, each of them features a 2-band equalizer, one AUX send and level control. FX MAIN/MONITOR outputs,16-position multi-effect and soon.

  • Page 4: Block Diagram

    3. Block Diagram...

  • Page 5: Schematic Diagram

    4. Schematic Diagram...
  • Page 6 7 BAND EQ MAIN SECTION DSP SECTION PBM4-MX_4.SCH PBM4-MX_2.SCH PBM4-MX_3.SCH Titel 100N 100N 100N 100N 100N 100N 100N 100N PBM4 INPUT SECTION -VCC Size Model No: Revision PBM4 V1.0 8-Jan-2005 Date: Sheet 1 of File: PBM4-MX_1.Sch Drawn By: SHUNG LIN...
  • Page 7 C122 MAIN-BUS R151 4U7/63V(NP) VR17 3K9/0805 100P 100P W50K CGND CGND CGND R181 +PHANTOM Titel 470R 1/2W PBM4 MAIN & OUTPUT SECTION SCJ-0658-1-Y C146 FOOTSW 470uF/50V 6P-SL2020 CGND Size Model No: Revision CGND PBM4 8-Jan-2005 CGND Date: Sheet 2 of File: PBM4-MX_2.Sch...
  • Page 8 U16B C133 10UF/25V 220U/16V 10UF/25V U18F NE555 74HC14 4580M 4580M 74HC14 C110 C112 R162 100N 100N DGND DGND DGND -VCC Titel PBM4 DSP SECTION Size Model No: Revision PBM4 8-Jan-2005 Date: Sheet 3 of File: PBM4-MX_3.Sch Drawn By: SHUNG LIN...
  • Page 9 MON_EQ_SOURCE 100N RF9_1 UF2C UF3C UF4C MON_EQ_OOL_2 RF9_4 4580V 4580V 4580V RF9_3 C137 100N -VCC RF9_7B W100K RF9_2 CF9_2 Titel PBM4 7 BANE EQ Size Model No: Revision PBM4 Date: 8-Jan-2005 Sheet 4 of File: PBM4-MX_4.Sch Drawn By: SHUNG LIN...

  • Page 10: Wiring Diagram

    5. Wiring Diagram...

  • Page 11: Pcb Layout

    6. PCB Layout (1) PCB: PBM4-MX BOTTOM LAYER PCB: PBM4-MX BOTTOM LAYER...
  • Page 12 PCB: PBM4-MX BOTTOMOVERLAY...
  • Page 13 0 0 0 0 0 0 0 0 0 0 0 00 0000 0000 PCB: PBM-MX TOP LAYER...
  • Page 14 PCB: PBM-MX TOPOVERLAY...
  • Page 15 (2) PBM4-AMP PCB: PBM4-AMP BOTTOMOVERLAY PCB: PBM4-AMP BOTTOM LAYER...
  • Page 16 PCB: PBM4-AMP TOP LAYER PCB: PBM4-AMP TOPOVERLAY...
  • Page 17 (3) 313123/2 PCB: 313123/2 TOP LAYER PCB: 313123/2 BOTTOM LAYER PCB: 313123/2 TOPOVERLAY...

  • Page 18: Test Procedure

    7. Test Procedure...
  • Page 19 (1) AP output: 0dBu 1KHz SINE(sine wave), load out 600Ω Bal-Float. (2) AP input: Load 100KΩ BNC-Unbal. BW: 22Hz~22KHz. Fltr: A-weighting(12017) 3. Visual check Inspect the appearance of PBM4. Ensure it is ok; the knob of the potentiometer should be no friction. 4. Test function (1) Test the Phantom power The power indicator lights up when you switch on PBM4.
  • Page 20 MAIN OUT: –7dBu(±3dBu), distortion <0.05%. MONTOR OUT LEFT: -2dBu(±3dBu), distortion <0.05% FX SEND: –7dBu(±3dBu), distortion <0.003% TAPE OUT: –7dBu(±3dBu), distortion <0.05% (4) Test the output signal of CH5/6, when input mono signal to LEFT IN. A. Set the LEVEL knobs of CH5~CH6 to the middle position MAIN OUT: –21dBu(±3dBu), distortion <0.1%.
  • Page 21 A. Input the signal of 1KHz,-20dBu from MIC jack with Balanced. Output level data is similar to LINE IN input . B. When press the DSP switch, MUTE CHIP lamp should be up or down. Connect FOOT switch. MUTE CHIP should be up or down. C.
  • Page 22 Turn the EQ knob of all channels to the middle position after finishing test. (9) Test the curve of MAIN EQ A. Respectively input signal 0dBu, 1KHz to a channel from CH1~CH4. Set all slide potentiometers of MAIN EQ to the middle position. Adjust LEVEL of the corresponding channel to make MAIN ON is 0dBu.
  • Page 23 repeat twice or thrice, eliminate unwanted noise during test and the output should be changed accordingly. Turn on/off the switch twice, it should be no noise. Company preset: Turn all LEVEL knobs to the minimum. Set the PHANTOM switch to OFF position and other knobs to the middle position.
  • Page 24 SEKAKU ELECTRON INDUSTRY CO., LTD. PAGE: 1 Test Result JFM-1006-5.0 Model No:PBM4-AMP Test Date: 2005/01/17 Test Item Test Conditions Spec Test Result Remark Power Source AC: 240 V； 50 Hz Motionless State DC______V Load_____Ω ________A ________A Current _______A _______A Power Rated Output.
  • Page 25 SEKAKU ELECTRON INDUSTRY CO.,LTD PAGE: 2 Test Result JFM-1006-5.0 Model No:PBM4 Test Date:2005/01/17 Tester： 4. Distortion at 5. Frequency Test Item 1. Input Sensitivity 2. Signal/Noise 3. Distortion at 1W Rated Response Test Conditions FLAT Rated FLAT Rated FLAT Output...

  • Page 26: Exploded Views & Mechanical Parts List

    8. Exploded Views & Mechanical Part List...
  • Page 27 Part No. Description Specification NI03241 Panel 318*194*30 black_V1.0 NI01957 Rear cover PAM5 MG00550 Screw M4*35 MG00370 Screw M8*14.2*1.25PH ME00094 M8*1.25PH MF00097 Washer φ32*φ9*2t PAM-5 MG00387 Screw M3*20 MG00051 Screw M3*16 HK05013 Panel PBM4-MX HK05111 Panel PBM4_230V MG00465 Screw M8*9.5*1.25PH...

  • Page 30: Bom

    0.035*1M 17 MG00051 screw M3*16 18 NF00061 assurance card ALTO 19 NA00125 PE bag 0.04t*580*400mm 20 NB03358 gift carton PBM4 ALTO_V1.0 21 NB03246 carton PAM5;PAM5A;PAM5T_V1.0 22 NB03374 cushion PBM4 down_V1.0 23 NB03375 cushion PBM4 up_V1.0 24 HJ00006 desiccant 25 HK05013...
  • Page 31 W50KΩ RD09F113A224-50K4BT(SAS1);30F-C VR3,VR4,VR7,VR8,VR11,VR12,VR15,VR16,VR21,VR22 65 SA00054 L.E.D 3m/m round(yellow)long foot 26 66 NI01786 LED spacer support LEDS-12 12mm 67 HK05039 PC board P-PBM4-MX-AI 100Ω 68 RA01112 fixed resistor 1/4W R32,R149,R150 100uF/25V φ6*11mm 69 CB00235 electrolytic capacitor C135 10uF /25V φ4*7mm...
  • Page 32 No. Part No. Description Specification Remark 1.2KΩ ±5% 0603 92 RD00084 RF2-2 SMD fixed resistor 1/10W 1.5KΩ ±5% 0603 93 RD00085 SMD fixed resistor 1/10W R129 1.8KΩ ±5% 0603 94 RD00086 SMD fixed resistor 1/10W RF4-2 95 RD00125 1.0MΩ ±5% 0603 SMD fixed resistor 1/10W R105,R106,R107,R108,R109,R110, R111,R156 96 CI00065...
  • Page 33 RLS4148 0.5A (LL-34) 158 SG00068 SMD integrated circuit 74HC14DT(SO-14)/(PHI) 159 SG00410 SMD integrated circuit IC41LV16256-35KG(SOJ40)/(ICSI) 160 SG00166 SMD integrated circuit TY-2 ALTO(GMCODE:105022) 161 SG00147 SMD integrated circuit CHEF DSP(GMCODE:105022) 162 SG00037 SMD integrated circuit LD1117DT33C(TO-252) 163 HC00233 IC socket (PCB) PLCC32 (D03-32T.A.4)
  • Page 34 0.0047uF/100V 5% CASE01 C39,C40,C41,C42,C43,C44,C45,C46 metal-film capacitor MSC 186 NI02957 knob 9.8*5.5*11.2mm black_V1.0 187 HK05111 PC board PBM4_230V 188 MA05448 panel PBM4 230V 50/60Hz CHINA ALTO_V1.2 189 MA00440 panel PBM4S 4.0t*242.5*95.5 190 MA00437 panel PBM4S 4.0t*242.5*95.5_V1.2 191 MJ00218 panel 4.0t*242.5*95.5 PAM5A 192 HI00021...
  • Page 35 263 NE05267 label 264 NH00025 bond paper 0.065*1M 265 NI00018 membrane 0.06*1M 266 MG00465 screw M8*9.5*1.25PH 267 NF02055 instruction PBM4 ALTO_V1.0 268 NH00231 paper 889*554mm 269 NE02717 label MADE IN CHINA 270 NH00038 paper 0.115*1M 271 NI00028 membrane 0.110*1M...
