Mighty Mule FM130 Installation Manual

Wireless vehicle sensor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Wireless Vehicle Sensor
Installation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FM130 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mighty Mule FM130

Summary of Contents for Mighty Mule FM130

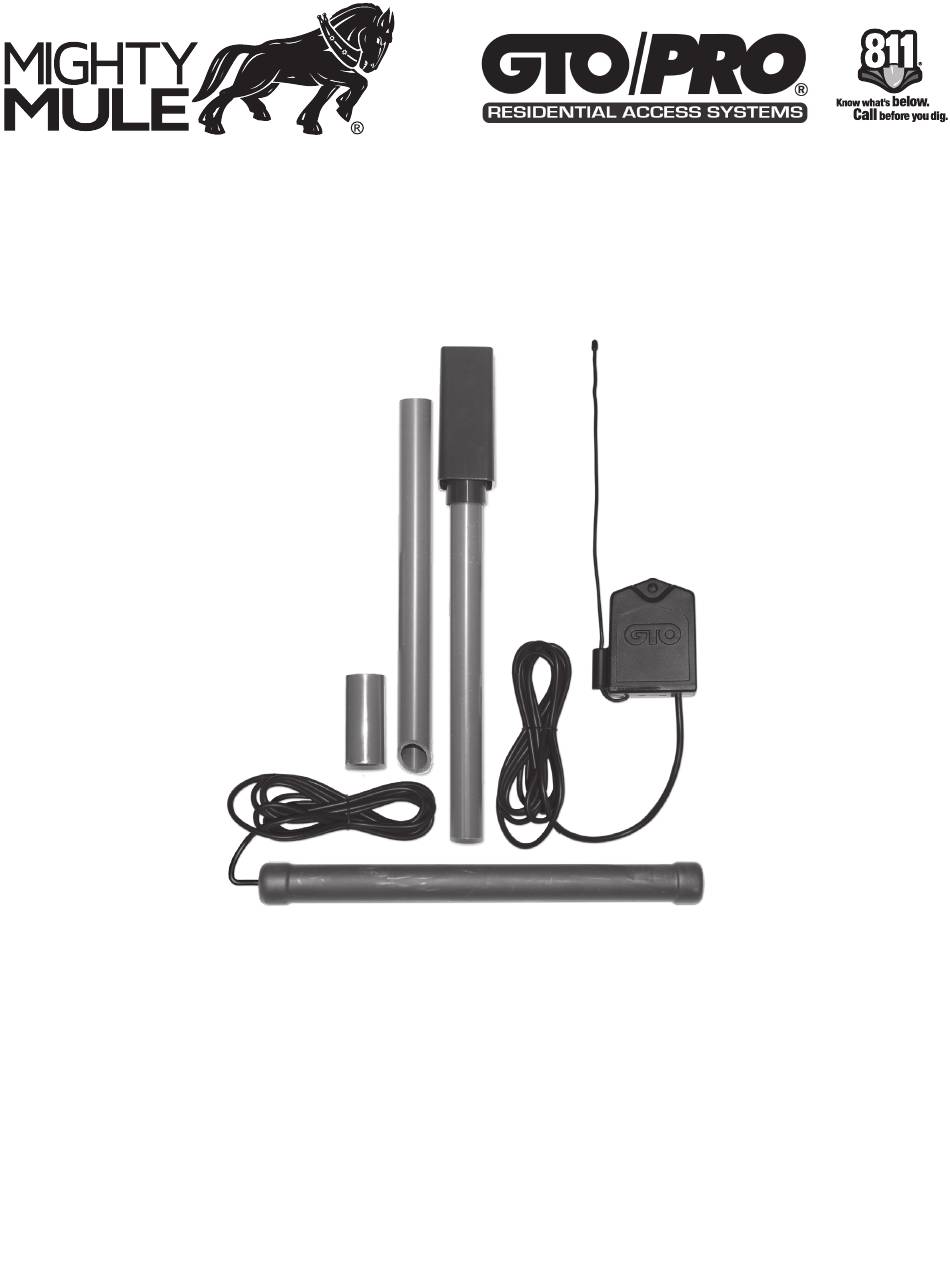

  • Page 1 Wireless Vehicle Sensor Installation Manual...

  • Page 2: Table Of Contents

    Learning an FM130 to an MM371, MM372, MM571 or MM572 Automatic Gate Opener..8 Learning an FM130 to an MM271 or MM272 Automatic Gate Opener ....8 Instructions for Installing the Optional RB709U-NB Receiver .

  • Page 3: Kit Contents

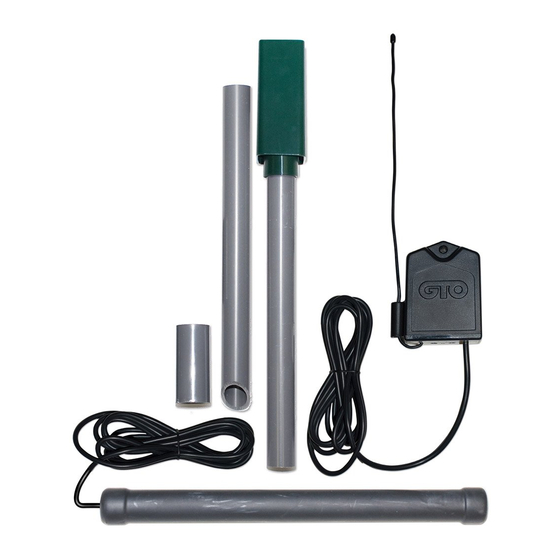

    Kit Contents Kit Includes: A. Transmitter Module B. Sensor C. Mounting Post (3 pieces) D. 2 “AA” Batteries (Note: lithium-alkaline batteries are required for extreme cold climates.) E. Receiver (RB709U-NB)

  • Page 4: How It Works

    How it Works The electromagnetic sensor detects vehicles in motion and automatically activates your gate. This “hands free” device allows friends, family and delivery personnel to exit your property without the need of an Entry Transmitter, or you, to operate the gate. When a VEHICLE SENSOR is in use, the automatic gate opener could be activated by a child on a bicycle, tricycle or other metal play equipment.

  • Page 5: Program Dip Switch Settings

    1. Program DIP Switch Settings (This step is only for systems that are not code-safe capable.) Step 1: Verify that your Entry Transmitter operates the gate opener. Step 2: Remove the cover (A) from your gate opener Entry Transmitter (B). Remove the cover (C) from the Transmitter Module (D).

  • Page 6: Determine Location For Sensor And Transmitter Module

    2. Determine Location for Sensor and Transmitter Module NOTE: Install Transmitter Module and Sensor on the same side of the driveway as your automatic gate opener/receiver. Placement of SENSOR: • No more than 2 ft. from edge of driveway. • Same side of driveway as the gate opener control box. •...

  • Page 7: Install Sensor And Transmitter Module

    3. Install Sensor and Transmitter Module Leave 2" of wire slack inside post. Transmitter Module approximately 12" above ground. Coil extra wire. Place Sensor 10-12" deep and parallel to driveway. To Gate DRIVEWAY IMPORTANT: Clear an area 25 ft. in all directions of metal tools, toys and automobiles that may move to prevent magnetic disturbance during testing and installation.

  • Page 8: Learning An Fm130 To An Mm371, Mm372, Mm571 Or Mm572 Automatic Gate Opener

    To forget the FM130, simply follow steps 1-5 above then test the sensor to verify that it no longer activates the AGO. NOTE for MM271: The gate must be in the closed position with the arm extended to delete the FM130. The gate can be in any position to learn it.

  • Page 9: Instructions For Installing The Optional Rb709U-Nb Receiver

    Instructions for Installing the Optional RB709U-NB Receiver CAUTION: The “Learn” process may activate the gate. Please use caution when programming the Receiver. *RB709U-NB Receiver is only required for installations on MM360 systems and select legacy systems. Please call technical support for details. Step 1: The RB709U-NB will replace the gate opener receiver;...

  • Page 10: Test The System

    GREEN Control Boards Gate Opener Battery Gate Opener Battery RED WIRE to POSITIVE RED WIRE to POSITIVE BLACK BLACK WIRE to NEGATIVE BLACK BLACK WIRE to NEGATIVE STALL FORCE SEQ1 SEQ2 LEARN COM COM RECEIVER ALARM ACCESSORY RCVR CH 1 (Green Wire to Com CH 1 (Green Wire to Grn) CH 1 (Blue Wire to Cycle) CH 1 (Blue Wire to Wht)

  • Page 11: Troubleshooting Guide

    Troubleshooting Guide If your Wireless Vehicle Sensor is not operating properly, please follow this checklist: IMPORTANT: If you make any of the following adjustments, you will need to recalibrate the Transmitter Module before retesting (see page 10, Test the System). A .

  • Page 12: Fcc Warning

    NOTE: Verification of the warranty period requires copies of receipts or other proof of purchase. Please retain these records. Mighty Mule Sales: 800-543-4283 | Mighty Mule Technical Support: 800-543-1236 Mon-Fri 8am - 7pm EST • Saturday 10am - 6:30pm EST 5919 Sea Otter Place, Carlsbad, CA, 92010 For more information on Mighty Mule’s full line of Automatic Gate Operators, Gate Openers and Access Controls visit...
