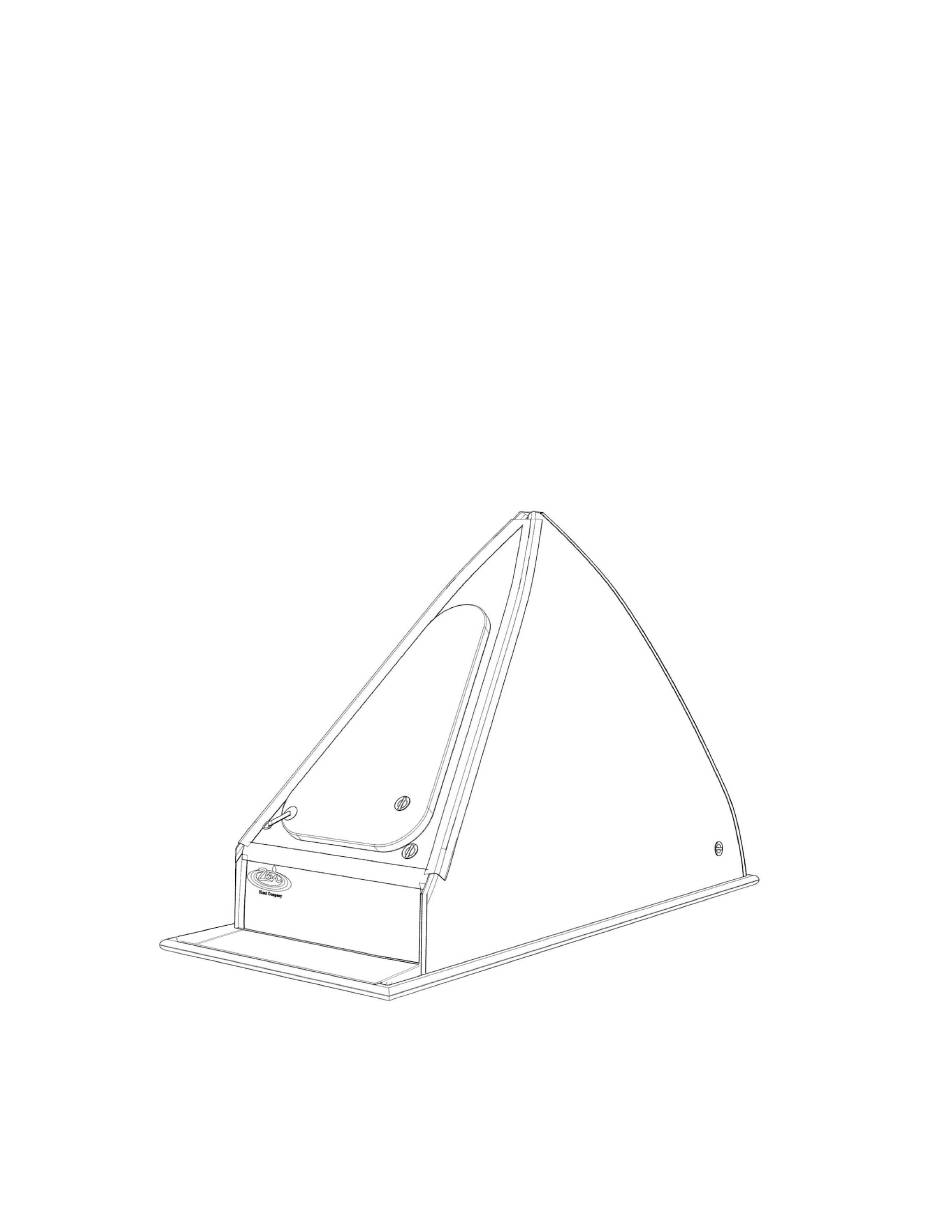

ZEN FLOAT TANK​
TM
ASSEMBLY INSTRUCTIONS
VIDEO INSTRUCTIONS: https://www.youtube.com/zenfloatco
Version 2.5, updated 09/31/2020.
For help with watercare maintenance go to: zenfloatco.com/water-care/
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tank and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Zen Float Tank

  • Page 1 ZEN FLOAT TANK​ ASSEMBLY INSTRUCTIONS VIDEO INSTRUCTIONS: https://www.youtube.com/zenfloatco Version 2.5, updated 09/31/2020. For help with watercare maintenance go to: zenfloatco.com/water-care/...
  • Page 2: Important Safety Instructions & Warnings

    OCCUPIED. CALCULATE AT APPROXIMATELY 75 LBS (34 KG) PER SQUARE FOOT WHICH IS BASED ON A HUMAN FLOATING IN THE TANK THAT WEIGHS UP TO 300 LBS. TOTAL FLOAT TANK WEIGHT WITH WATER AND SALT IS APPROXIMATELY 2200 LBS (998 KG).
  • Page 3: Fire Hazard

    IF PLACED IN CONTACT WITH ANY FLAME OR OTHER HEAT SOURCE. DRUGS AND ALCOHOL USE DO NOT USE DRUGS OR ALCOHOL BEFORE OR DURING USE OF THE FLOAT TANK. THE USE OF DRUGS OR ALCOHOL MAY INCREASE THE RISK OF INJURY, UNCONSCIOUSNESS, AND POSSIBLE DROWNING.
  • Page 4: Property Damage

    USING SHARP OBJECTS WHEN NEAR THE FLOAT TANK AS THIS COULD PUNCTURE THE FLOAT TANK AND CAUSE FLOODING. ALWAYS DRAIN THE FLOAT TANK AS DIRECTED BEFORE MOVING THE FLOAT TANK TO PREVENT FLOODING. ALWAYS DETACH THE TANK FROM THE TUB BEFORE DISASSEMBLING THE TANK.
  • Page 5: Risk Of Electrical Shock

    RISK OF ELECTRICAL SHOCK PLUG AND INSTALL THE FLOAT TANK AT LEAST THREE FEET FROM ALL ELECTRICAL OUTLETS AND METAL SURFACES. DO NOT ALLOW ANY ELECTRIC APPLIANCES WITHIN THREE FEET (ONE METER) OF THE FLOAT TANK, AND NEVER INTRODUCE ELECTRIC APPLIANCES INTO THE WATER, AS THIS MAY RESULT IN SERIOUS BODILY INJURY OR DEATH.
  • Page 6: Package Contents

    If you have any concerns please contact our support team before starting assembly. 1 x Air Inflation 1 x Base Drip Mat 1 x Tank Body Pump 2 x Heating Pads 15 x Foam Tiles 1 x Temperature Controller...
  • Page 7 1 x Water Pump & 1 x UV 1 x Grounding Probe 1 x GFCI Adapter Water Filter *Pre-plugged to Temperature *120V models only Controller *Pre-connected #7a & #7b 1 x Filter Bag 1 x T Fitting 1 x 90 Degree Fitting *Additionals incl.
  • Page 8 2 x Water Filtration Hose 4 x Vent Caps 1 x Pump Manifold *T & 90 Deg. fittings pre-inserted *Pre-assembled with Water Pump Fittings 1 x Hydrometer 1 x Inline Carbon Filter 1 x Water Test Strips *Additionals incl. w/ Float Ready Package 1 x Step Drip Mat 1 x Air Valve Wrench...
  • Page 9 ★ Choose a preferred location that will stay between 70° and 90° Fahrenheit (21° to 32° Celsius). ★ Allow at least 1 ft (30 cm) of space between the Float Tank and the room’s walls to allow for maintenance and cleaning.
  • Page 10 2. “This Side Up” sticker identifies proper side is facing up 3. Orient Heating Pads( #4a & #4b) on top of the Foam Tiles (#5) so the electrical cords face the rear side of the Tank (opposite the Door Side)
  • Page 11 4 to 5 zones. ● Do not leave Heating Pads plugged into the wall outlet for more than 30 seconds without water in the Tank. ● If a Heating Pad does not heat up please contact our support team before continuing assembly.
  • Page 12 2. Position the Base Drip Mat (#2) over the Foam Tiles (#5) and the Heating Pads (#4a & #4b) Step 4 - INFLATE & PLACE TANK BODY There are seven different air valves on the Float Tank Body you will need to inflate to complete the process: ● Left wall valve #1 ●...
  • Page 13 Move the string that connects the air valve protective cap to the air valve body so it is not trapped under the air valve protective 7. Place the Tank Body (#3) on the Drip Mat (#5) by lining up the Tank Body over the Heating Pads (#4a & #4b) 8.
  • Page 14 The Vent Caps (#5) are designed to allow fresh air to circulate through the Tank while helping to block direct light from entering. Installation of the Vent Caps is optional, but installing two on the inside of the air holes is recommended (some owners prefer installing two inside and two outside, but this can lead to condensation gathering outside of the Tank).
  • Page 15 #13 - Water Filtration Hoses #10 - Filter Bag 1. Set the Water Pump and UV Water Filter (#7a & #7b) in the back left corner of the Tank 2. Screw the Pump Manifold (#15) the top of the the Water Pump (#7a)
  • Page 16 4. Feed Filter Bag (#10) through loops located on the rear wall to hold the bag in place 5. Route the plug wires through the neoprene sock to the outside of the Tank 6. Connect the Water Filtration Hoses (#13) together with the T Fitting (#11) 7.
  • Page 17 2. Run 5 gallons (20 liters) of water through the Inline Carbon Filter (#17) into a drain or until water runs clear, to make sure no excess carbon from the Inline Carbon Filter is deposited into the Tank 3. Add 3 inches (7.5 cm) of water to the Tank: a.
  • Page 18 Mix all salt into the water before using the provided Water Pump (#7a) NOTE:​ If you bought your salt from Zen Float Co, you received 800 lbs (363 kg) of Epsom salt and you will use all of it for the first fill of your Tank.
  • Page 19 Either Heating Pad plug can be used for either of the two available Temperature Controller plugs - operation is not affected by this selection 3. Insert the Grounding Probe (#8) into the Tank through the access port 4. Submerge the Grounding Probe (#8) and insert the tip into the built-in holder at the left rear of the Tank Interior 5.
  • Page 20 ● The Temperature Controller display will now display a temperature detected by the attached temperature sensor. ● For safety, the Tank’s water should be electrically grounded. Please contact a licensed electrician if you have any questions or concerns about your home’s electrical system being properly grounded.
  • Page 21 Set the target Tank temperature with the Temperature Controller (#6)​ : 1. Single click bottom button to set the temperature, and use the top and middle buttons to adjust 2. To change the setting to Celsius hold the top and middle (up and down) buttons simultaneously for three seconds 3.
  • Page 22 Air Valve Wrench (#20) to adjust the air valve following these steps: ● Deflate the affected panel ● With one hand, hold the backside of the air valve from the inner side of the Tank panel ● Place the Air Valve Wrench (#20) ●...
  • Page 23 Zen Float Co. 5947 S 350 W Murray, UT 84107 Tel: 801.871.5140 Email: info@ZenFloatCo.com...
