- Page 1 Softcontrol Smart Instruction Manual Version 2.2...
-
Page 3: Table Of Contents
Index: Manufacturer ......................... 5 Correct Usage in Accordance with Regulations ............5 Warranty ........................5 Liability ......................... 5 License Conditions ....................... 6 General Safety Instructions ................... 6 6.1. Symbols ........................6 6.2. Operating personnel ...................... 6 6.3. Safety Requirements ..................... 7 General Overview of the Device .................. -
Page 5: Manufacturer
2. Correct Usage in Accordance with Regulations Softcontrol Smart monitors increased concentrations of residual hardness in soft water of a connected water softening plant on cation exchange base. It offers a continuous, safe thres- hold value monitoring with alerting on exceeding. With a fixed hardness threshold value of 10% based on the input water hardness, the device triggers an alarm. -
Page 6: License Conditions
5. License Conditions On purchase, the user acquires an exclusive non-transferable right of use for the installed software. The use is permitted for the operation of the purchased device only. Any other use, transmission, copying or recompilation of the software is prohibited. Equal conditions apply for software updates. -
Page 7: Safety Requirements
The device must be protected against liquids and unauthorized mechanical or electrical intervention. Softcontrol Smart must be operated continuously earthed with a 230 volt 50 Hz power supply via an earthed electrical power point respectively with the wall power supply 100 ... 240 volt provided by the manufacturer. -
Page 8: General Overview Of The Device

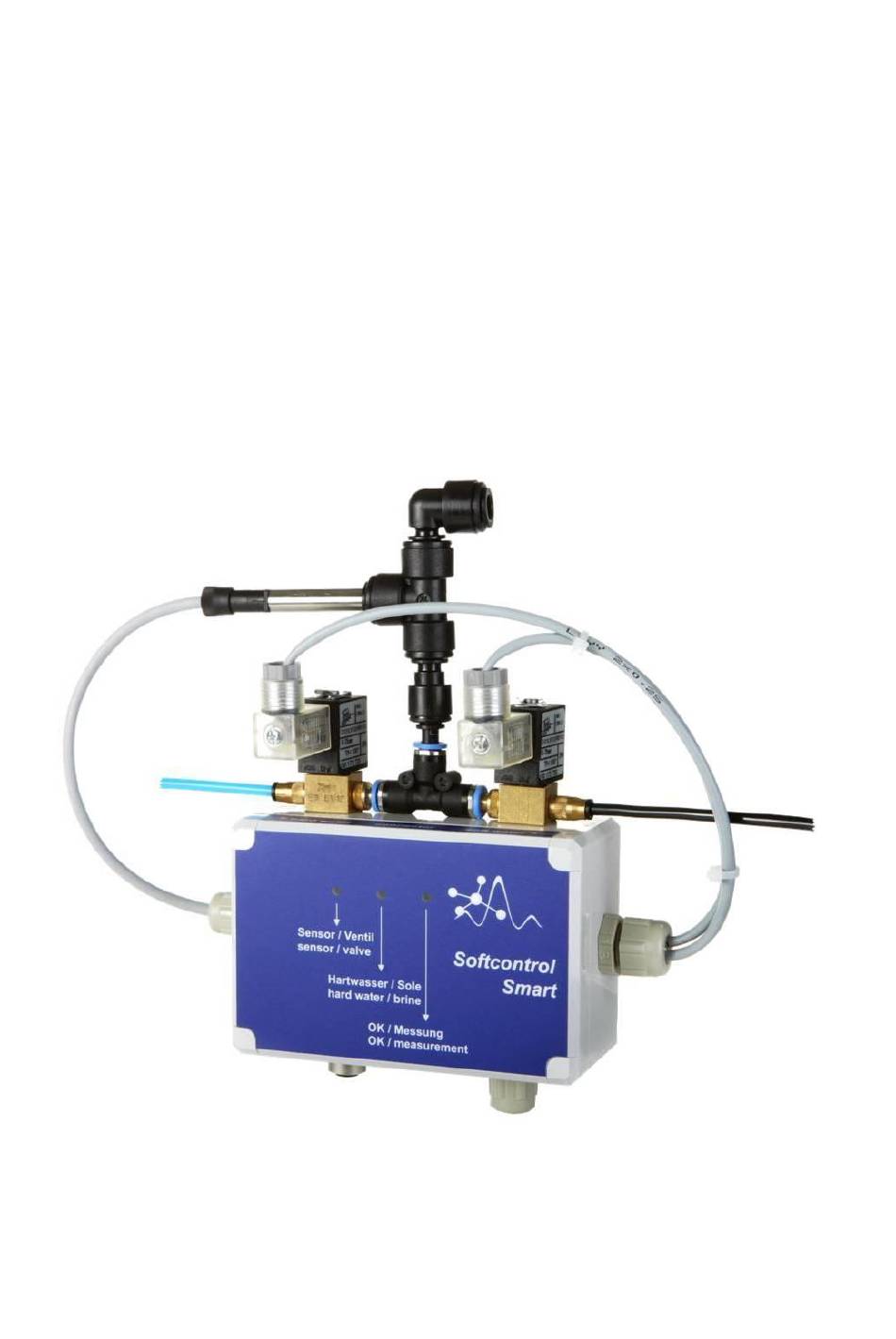

7. General Overview of the Device Softcontrol Smart is an online water hardness measuring system for continuously monitoring of in- creased concentrations of residual hardness in soft water hardness of a connected water softening plant on cation exchange base. By using of bypass technology the device extracts time controlled or flow rate depending minimal amounts of raw or soft water from the process, evaluates the residual hardness and alerts on detected hardness breakthroughs. -
Page 9: Operational Mode
8. Operational Mode Time controlled or flow rate controlled measurement / active operation If the device is not connected to a water meter it operates time controlled and measures con- tinuously every 15 minutes. Optional it is possible to connect an external water meter. If the device is recognizing water meter impulses it changes automatically to a continuous flow rate controlled measurement. -
Page 10: Installation
9. Installation 9.1. Mechanical Installation Softcontrol Smart is to install very close to the softening system to be monitored. Installation is possible as wall or frame mounted device. For sampling of raw and soft water branch pipes with preferable ¼” internal thread and pre-filter of ≤ 0.1mm should be installed at the process inlet and process outlet of the softening system. -
Page 11: Scheme Hydraulic Installation
9.2.1. Scheme hydraulic Installation sensor cable drain (pressure free) sensor raw water soft water valve valve soft water raw water optional optional power supply external connection 240V / 50 Hz signal-output water meter raw water soft water softener... -
Page 12: Electrical Installation
9.3. Electrical Installation After realizing the above described installation and succesful hydraulic installation Softcontrol Smart is ready for operation. An optional connection of a water meter or an external signal output is possible by using the provided 5-pin plug adapter. -
Page 13: External Signaling By Potential Free Contact
9.3.1. External Signaling by potential free contact The alarm signal will put out at the terminals 1 and 2 of the external 5-pin plug adapter. The following external electrical requirements must be fulfilled absolutely: External Requirements: Contact positions in alarm conditions: Maximum connection voltage: 24 Volt Maximum current:... -
Page 14: Led-Status And Displays Of Functional Status
10. LED-status and displays of functional status The functional status and the measuring results are shown by luminescent or flashing LEDs: LED „OK/measurement“ lights up: passive operation mode no increased water hardness recog- nized = good soft water quality LED „OK/measurement“ is flashing: aktive operational mode measurement or calibration is activated... -
Page 15: Service
Service 11.1. Delivery/Transport/Storage of hardness sensor Each hardness sensor is clearly identifiable by its sensor number. Prior to delivery each sensor has to pas an extensive quality check, where the sensor quality will be checked and docu- mented. The sensible part of the sensor is tightly closed with a protective cap to protect the sensor membrane against interferences and to keep it in a sterile and humid climate. -
Page 16: Operating Conditions Of The Sensor
11.2. Operating conditions of the sensor The quality of the sensor is influenced by water quality, especially contents of precipitation of iron, high chlorine or brine concentrations and growing bacteria cultures. The sensor must be replaced not later than signaling „sensor alarm“ by the device. Required water conditions: Natural raw water with a hardness value between 0.18 mmol/l to 10.8 mmol/l Water temperature: 5 ... -
Page 17: Malfunction/Breakdown Of The Sensor
11.4. Malfunction/Breakdown of the sensor 1. Deposits on the sensor Precipitations and deposits on the sensor prevent an adequate monitoring. Examples: Rust- and iron deposits form a light red/brown coating in the flow chamber and the sensor system Up streamed filters should prevent from precipitations of iron, copper or aluminium. Bio film growth in consequence of to high microbial count in the water Bio films appear highly when the softening plant or the device has been out of operation for some days or weeks and water was kept in the chamber. -
Page 18: Malfunctions And Possible Causes
12. Malfunctions and possible causes Problem To do 1. Signalization of threshold value exceeding without there being any excessive water hardness water through put through measuring check, that by switched valve water must chamber to low flow out of the drain raw water valve does not close correctly, (usually due to deposits in valve seat) leading to small amounts of raw water in... -
Page 19: Decommissioning
13. Decommissioning For decommissioning of the device the following steps are to realize: 1. Unplug the power supply unit / disconnect operating voltage 2. Close raw and soft water supply manually by the stop valves) 3. If the device should be decommissioned for more than 2 days, remove the sensor. Protect the sensible sensor part by a protective cap filled with approx. -
Page 20: Sensor System
15. Sensor System selective sensor for calcium and magnesium ions type 670 16. Accessories 1 supply unit for connection of water flow meter and external signalling 1 m drainage hose ø 6 mm o.d., ø 4 mm i.d. ... -
Page 21: Technical Data
17. Technical Data Dimension of case 120 x 80 x 55 mm (W x H x D) 220 x 300 x 65 mm (W x H x D), Mounting area (wall/frame mounted) Weight approx. 500 g 5°C … 50°C Surrounding temperature 20% …... -
Page 23: Eu-Declaration Of Conformity
EG-Richtlinien. Ein in den Richtlinien vant EC directives. A conformity assessment method as vorgesehenes Konformitätsbewertungsverfahren wurde provided for in the directives has been performed. durchgeführt. Firma OFS Online Fluid Sensoric GmbH Company: Heidelbergweg 9 D - 07580 Ronneburg Deutschland Gerätebezeichnung Online-Control... - Page 24 OFS Online Fluid Sensoric GmbH Heidelbergweg 9 07580 Ronneburg Germany Manual Softcontrol Smart Version 2.2 Issue 06/2016 Subject to technical changes...
