Summary of Contents for Bissell CLEAN VIEW 68Z3

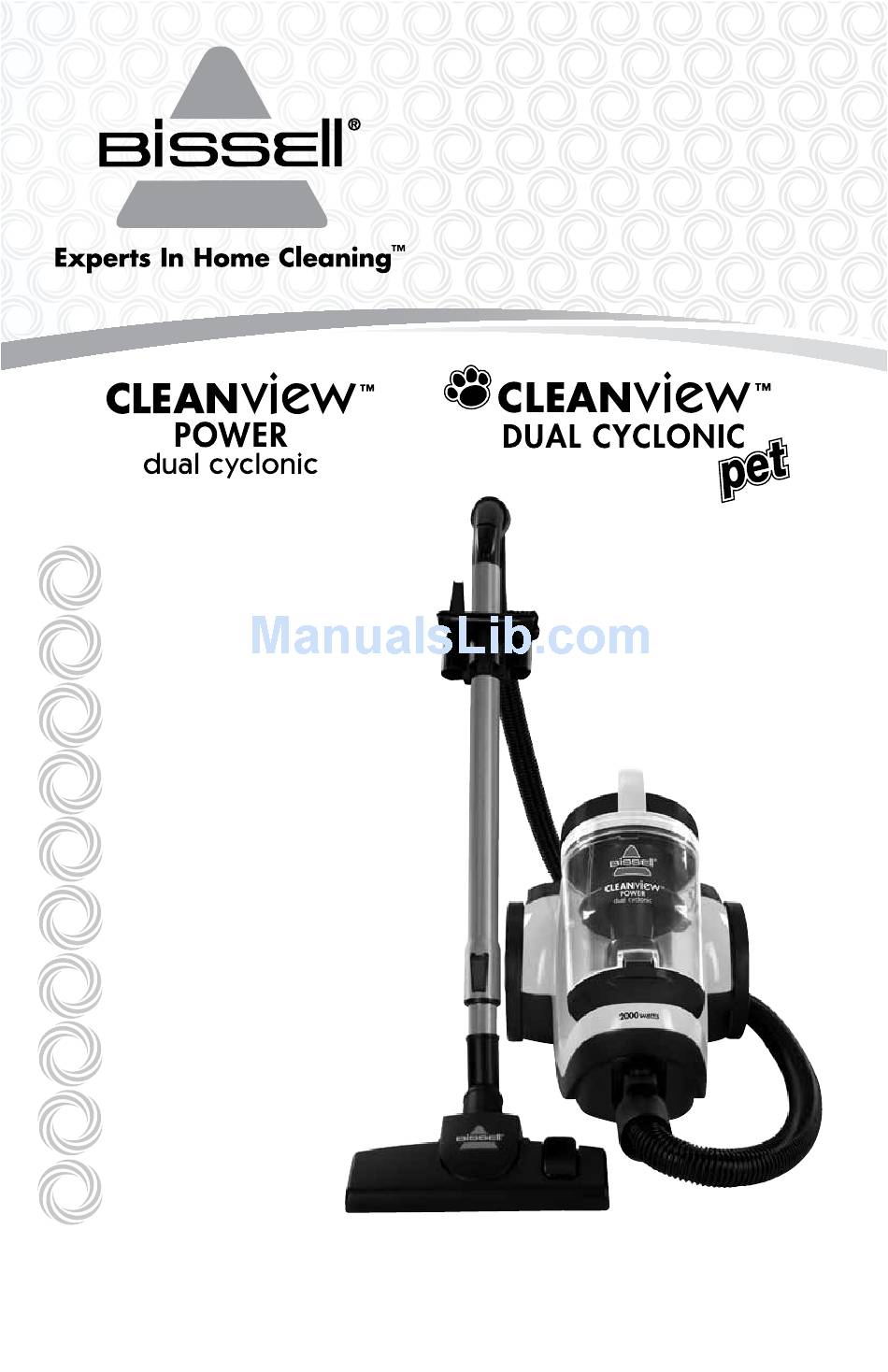

- Page 1 USER'S GUIDE 68Z3, 78E9 SERIES 220-240V Thank You Safety Instructions Product View Assembly Operations Maintenance and Care 9-12 Troubleshooting Replacement Parts Warranty Consumer Services...
- Page 2 Everything we know about floor care went into the design and construction of this complete, high-tech home cleaning system. Your BISSELL CleanView Dual Cyclonic canister vacuum is well made, and we back it with a limited one year warranty. We also stand behind it with a knowledgeable, dedicated Consumer Services department, so, should you ever have a problem, you’ll receive fast, considerate assis-...
-
Page 3: Important Safety Instructions
1362) fuse is fitted in the carrier contained in the plug. (Spares may be obtained from your BISSELL supplier). If for any reason the plug is cut off, it must be disposed of, as it is an electric shock hazard should it be inserted... -
Page 4: Product View
roduct view Air Flow Regulator Telescoping Extension Wand Easy Empty™ Dirt Cotainer Multi-Surface Floor Nozzle Brush Switch Upholstery Tool Crevice Tool w w w . b i s s e l l . c o m Handle Hose Connector CAUTION: Do not plug in your vacuum until you are familiar with all... - Page 5 ssembly Connect the hose to the vacuum by inserting the hose connector into the suction opening on the bottom front of the vacuum. Push in until it clicks into the locked position. Connect the telescoping extension wand to the handle end of the hose. Connect the floor nozzle foot onto the telescoping extension wand.
-
Page 6: Power Cord
perations Power cord The power cord is located at the rear of the vacuum. Gently pull out the power cord, watching for the yellow line. Stop pulling the power cord once the yellow line is visible. There is also a red line, which indicates the end of the usable cord. -
Page 7: Power Button
perations Power button Turn the power ON or OFF by pressing lightly downward on the power button Variable suction power control The variable suction power control is located on the back of the vacuum. Turn the control toward the larger dots for maximum suction. -
Page 8: Special Tools
Special tools Your BISSELL CleanView Dual Cyclonic is not only a powerful carpet and rug vacuum cleaner, it’s also a versatile bare floor and above floor vacuum cleaner when you select one of the special tools. 1. Floor nozzle: Use to vacuum carpets, rugs and bare floors. -
Page 9: Maintenance And Care
Cleaning the inner cyclone & screen Filters protect the motor from dirt and dust particles. Use only BISSELL replacement filters in your CleanView Dual Cyclonic. 1. Unplug the vacuum from the electrical outlet. 2. Remove the dirt container from the vacuum. -
Page 10: Cleaning The Pre-Motor Filter
Cleaning the pre-motor filter The pre-motor filter protects the motor from dirt and dust particles. Use only BISSELL replacement filters in your CleanView Dual Cyclonic. 1. Turn the power OFF. Unplug the vacuum from the electrical outlet. - Page 11 aintenance and care Cleaning the Post-motor HEPA media filter* The post-motor filter is a H13 HEPA media filter*, which assists in the fil- tration process to return clean air to the room. 1. Turn the power OFF. Unplug the vacuum from the electrical outlet.
-
Page 12: Thermal Protector
3. The thermal protector automatically resets after approximately 1 hour. If the thermal protector does not reset, call BISSELL Consumer Services. w w w . b i s s e l l . c o m... -
Page 13: Troubleshooting
Other maintenance or service not included in the manual should be performed by an authorized service representative. Thank you for selecting a BISSELL product. Please do not return this product to the store. w w w . b i s s e l l . c o m... -
Page 14: Replacement Parts
eplacement parts - Item Part No. 203-1578 203-1579 203-1536 203-1583 203-1581 203-1580 203-1582 203-1290 203-1598 203-1569 203-1557 *The Filter Media, not the vacuum as a whole, complies with the High Efficiency Particulate Air (HEPA) filter specification (EN 1822-1:2009). w w w . b i s s e l l . c o m Part Name Hose Telescoping Extension Wand... -
Page 15: Limited One Year Warranty
Limited One Year Warranty Subject to the *EXCEPTIONS AND EXCLUSIONS identified below, BISSELL Homecare, Inc., will replace (with new or remanufactured components), at BISSELL’s option, free of charge from the date of purchase by the original purchaser, for one year any defective or malfunctioning part do to manufacturers defect. - Page 16 ISSELL consumer services If your BISSELL product should require service: Call BISSELL Consumer Services at the numbers below and we will give you the location of a BISSELL Authorized Service Center in your area. For all other countries, contact your local in country distributor for questions, service, or repair.
