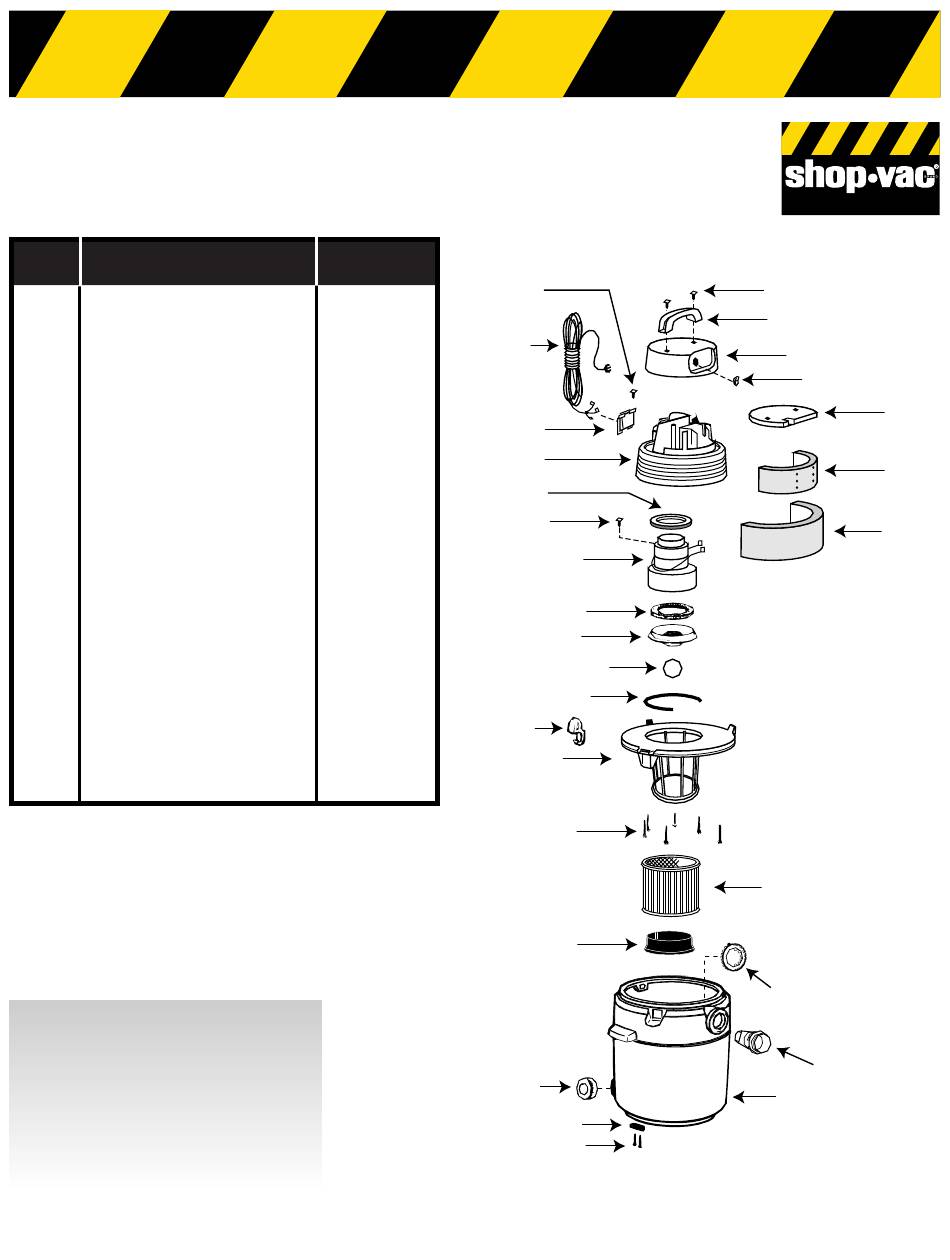

Shop-Vac QXL30ATS Assembly Instructions

Model QXL30ATS
ITEM DESCRIPTION
1 Screw truss head
2 Screw #8 x 1 / Ph pan hd., type AB
2
3 Top handle
4 Motor housing cover
5 Power cord
6 Foam insert cover
7 Cord retainer
8 Switch
9 Motor housing
10 Inner housing, acoustical foam
11 Upper motor gasket
12 #10 - 24 x 1 / " lg. Ground screw
2
13 Outer housing, acoustical foam
14 Motor
15 Lower motor gasket
16 Grid plate
17 Ball float
18 Strip gasket
19 Latch
20 Lid cage assembly
21 #10 x 3 / " Screw
4
22 Cartridge filter
23 Filter retainer
24 Tank assembly
25 Tank bracket
26 Locking inlet
27 Inlet lock ring
28 Drain cap
29 #10 x 1" Screw
Standard Accessories:
12' (3.66m) x 1 1 / " (3.81cm) Hose
2
(2) 1 1 / " (3.81cm) Metal extension wands
2
14" (35.56 cm) Deluxe master nozzle
14" (35.56 cm) Double-blade squeegee insert
14" (35.56 cm) Floor brush insert
14" (35.56 cm) Carpet insert
87529-38
PART NO.
1 / " x 3 / ", type AB 15146-99
4 4
15007-99
24105-00
24108-02
25800-27
24125-00
24111-22
82319-00
24109-05
12904-00
20700-00
17008-99
12905-03
19400-46
20716-00
88607-00
00811-00
20711-00
85501-01
89657-24
15039-99
90304-00
30080-00
10457-97
20839-00
64510-10
64511-00
10620-20
15096-99
2
5
7
9
11
12
14
15
16
17
18
19
20
21
23
28
25
29
1
3
4
8
6
10
13
22
27
26
24
