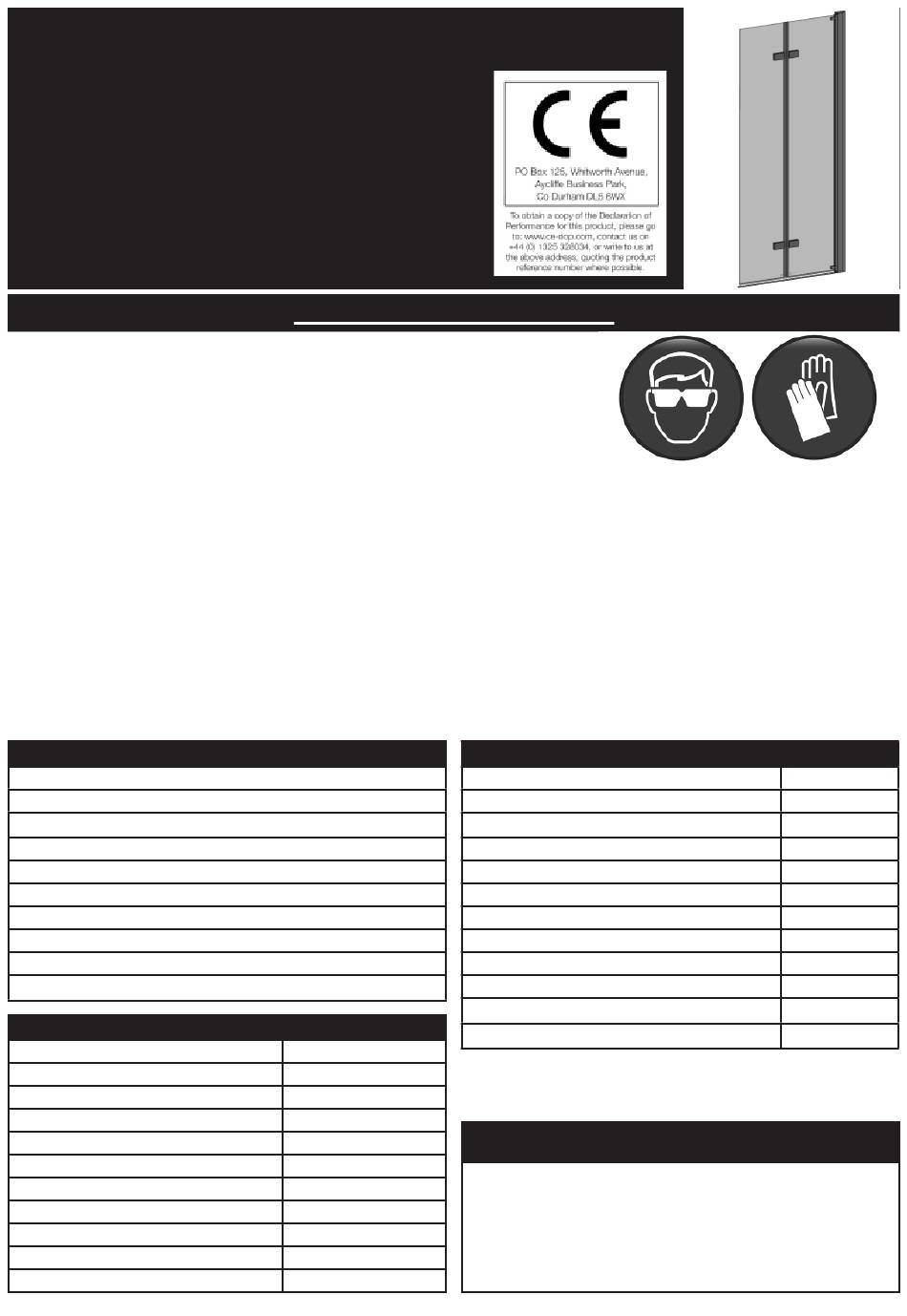

Wet Room Panel
Instruction Manual
N2VC
Be aware toughened glass can shatter if not handled correctly. It should not
be subjected to any sharp impact and it is essential to protect the glass by
resting it on a soft protective surface during installation such as cardboard
or carpeting. It is recommended to wear PPE at all times during installation.
PRE-INSTALLATION CHECKS
1.
Check you have the correct product. Please look at the labels on the side of the product packaging.
2.
Check all the product components are in the box and the fixing kits.
3.
Unpack your product and handle it with care.
4.
Please check the product for defects or damage, once the installation has commenced we cannot accept responsibility for any defects or damage.
5.
Please take time to read these instructions prior to installing your product.
6.
Before you commence any drilling check there are no hidden electrical cables and/or water pipes.
7.
No attempt should be made to re-work the toughened safety glass.
8.
The installation of the product should be performed by two persons.
9.
It is strongly recommended that the walls the product is going to be installed on are vertical.
10. It is strongly recommended the product is fitted on a tiled surface or similar waterproof surface.
11. It is strongly recommended the walls are tiled and grouted before the product is installed.
12. If the walls and/or the tray are not level you will not achieve maximum adjustment of the product.
13. Pictures used are for illustration purposes only, product designs may alter slightly as a result of continuing product development.
14. We do not stipulate where the European Standard Kite Mark should be positioned on the glass when being factory assembled.
15. Please note that some natural misting may occur when you remove this product from its packaging, due to the addition of the glass protection pre-
coating. If this does occur this can easily be removed with a soft, dry cloth.
Equipment Check List: Not Supplied
Description
Electric / Battery Drill
Screwdrivers
Sealant Gun
Bathroom Sealant
Spirit Level
6mm Masonry Drill Bit
Tape Measure
Pencil
Stanley Knife / Snips
Fixing Kit Components
Description
2.5mm Drill Bit
Wall Plugs
40mm screws
9mm Screws
Top Cap
3mm Allen Key
4mm Allen Key
Door Setting Block
Branding Badge
IMPORTANT INFORMATION
Quantity
1
3
3
5
1
1
1
2
1
Component Check List: Supplied
Description
Wall Profile
Panel Assembly
Screw Cover with Adhesive Tape
Dam Mouldings (Left and Right Hand)
Bottom Rail
Bottom Rail End Cap
Bottom Seal
CONSUMER GUARANTEE
Please make sure the purchaser/end user
completes and returns the guarantee card
which is enclosed with this product. Failure
to validate the Guarantee will mean only the 1
Year Statutory Guarantee will apply.
Quantity
1
1
1
1 of each
1
1
1
Ref: N2VC REV3 - SEPT 2020
Advertisement
Related Manuals for ROMAN Innov8 800
Summary of Contents for ROMAN Innov8 800
- Page 1 Wet Room Panel Instruction Manual N2VC IMPORTANT INFORMATION Be aware toughened glass can shatter if not handled correctly. It should not be subjected to any sharp impact and it is essential to protect the glass by resting it on a soft protective surface during installation such as cardboard or carpeting.
- Page 2 Step 1 - Pre-Installation Checks and Tray Sizes 1. Check the tray is level on all sides (the bubble on the spirit level must be in the centre of the 2 lines). 2. Stand in the tray and check that there is no adverse movement (correct if necessary). 3.
- Page 3 Step 2 - Fitting the Wall Profile IMPORTANT: This product features two different length Wall Profiles. See notes below. ① ① Short Leg Long Leg ③ ④ 1. Place the Wall Profile 15mm in from the outside of the tray. The longer leg of the Wall Profile must be on the outside of the enclosure, towards the front of the tray.
- Page 4 Step 3 - Fixing the Panel to the Wall Profile NOTE: 2 people will be required to carry out these operations. Some parts are hidden for clarity reasons. ① Ensure the the block is fitted with the “A” on the glass ①...
- Page 5 Step 4 - Fitting the Dam and the Bottom Rail ② ③ ④ ⑤ ④ ⑥ ↕ ↕ Place the Dam so that it sits Keep against the Parallel Vertical Frame Remove the release paper ⑦ ⑦ ↓ 1. Choose the correct Dam for your installation and discard the other. 2.
- Page 6 Step 5 - Fitting Seals and Sealing ① ① ② ③ Deflector to face inward towards the shower INSIDE VIEW Bottom Seal cut in half to meet here INSIDE Centre Magnets to VIEW sit on top of the Seals to join in the Bottom Seals middle when door closed Angled rebate...
- Page 7 Step 6 - Fitting Screw Cover and Cap Adhesive Tape ①② Cover Strip INSIDE VIEW Cover Strip to sit on top of the tray ③ Cut off here 1. Remove the release paper from the Adhesive Tape supplied and place the Tape on the face of the Vertical Door Frame, ensuring the Tape is positioned to one side of the screw heads.
-
Page 8: Spare Parts
Spare Parts If you need to replace any damaged parts please see illustration below for parts list then call Customer Relations on 01325 328033 Part No. Description Part No. Description Part No. Description Folding Panel Glass Setting Block Magnet Seal Bottom Seal Hinge Assembly End Cap... -
Page 9: Troubleshooting Guide
TROUBLE SHOOTING GUIDE Problem Solution 1. Check that the inside gap between the Tray and Wall Profile has been sealed correctly. Leaking 2. Ensure the tray is sealed along the tiled walls prior to installation. 3. Ensure the Wall Profile is sealed vertically inside and outside. 4. - Page 10 The information contained hereon may not be copied in whole or part without prior written consent Drawing detail Projection Third Angle Part number N2VC813# Description Innov8 800 Corner Bi-fold Panel Scale R.Morton 15.09.20 Sheet 1 of 1 Rev No. Description Sign...
