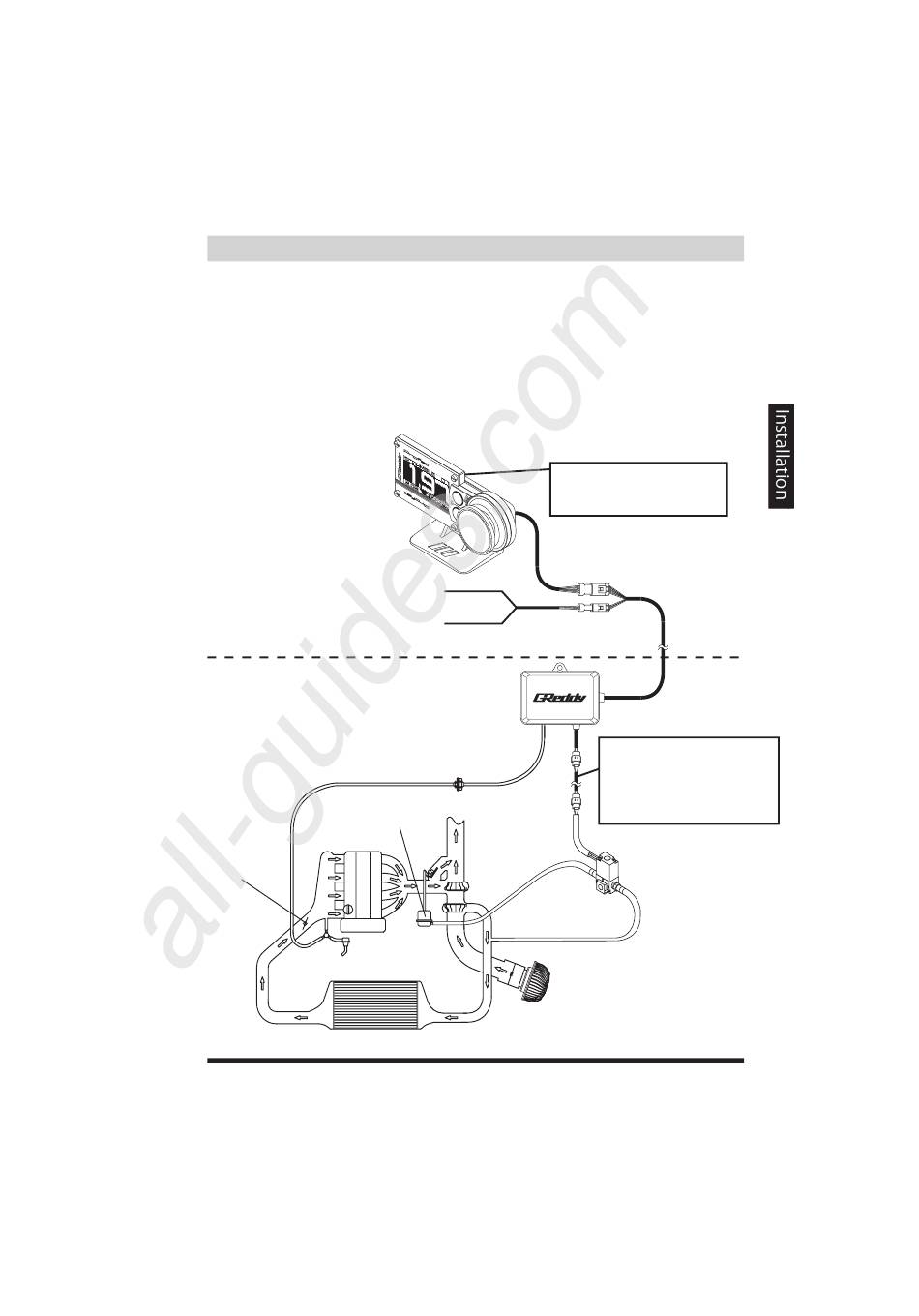

Installation Overview (Actuator type)
The Profec Sensor unit is waterproof and can be safely mounted in the engine bay.
Only one main harness line is required to be routed through the firewall to the
driverʼs compartment. The control unit is only water resistant. Therefore, do not
install it in a location, where it could get wet or be in excessive heat.
Control unit
+12V ACC (Accessory) Power
Chassis Ground
Driverʼs compartment
Engine Bay
4Φhose
Actuator
Engine
Throttle
Fuel Pressure Regulator
Intercooler
IInstall in a cool place
avoiding direct sunlight.
Sensor unit
I t i s p o s s i b l e t o c o n n e c t t h e
Filter
Solenoid valve unit directly to the
Sensor unit, without using the
solenoid valve harness.
Turbine
Air cleaner
Solenoid Valve Unit
