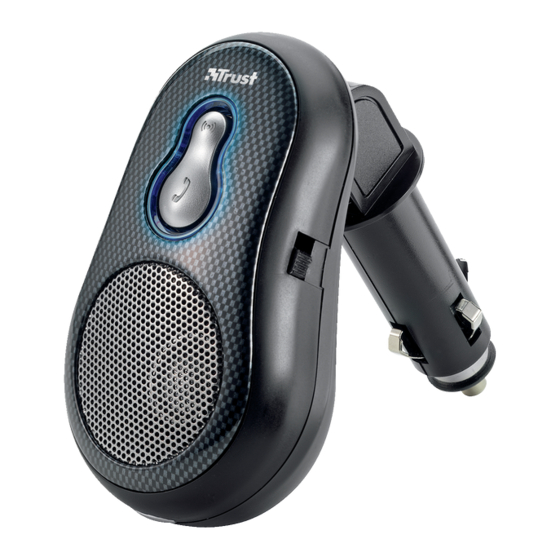

HS-8100 BLUETOOTH CAR KIT
Product information
Car kit
1 12 V plug
2 Microphone connection
3 Link button
4 Function indicator (blue/red)
5 Call button
6 + Volume button
Use
1
2
Microphone
Short microphone
7
- Volume button
8
Speaker
9
On/Off switch
10
Microphone holder (with double-sided adhesive
tape)
Microphone
11
Microphone plug
12
Insert the car kit into the car cigarette lighter. The car
kit can be carefully turned in the desired direction.
Press the car kit firmly into the cigarette lighter.
Position the microphone
preferably in front
(10+11),
of your face and not too close to the car kit (to
prevent an echo).
Short microphone: easier to use, but the separate
microphone has a better sound quality.
Insert the microphone plug (12) into the connection
(2).
1
UK
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Trust HS-8100
Summary of Contents for Trust HS-8100
- Page 1 HS-8100 BLUETOOTH CAR KIT Product information Car kit Microphone Short microphone 1 12 V plug - Volume button 2 Microphone connection Speaker 3 Link button On/Off switch 4 Function indicator (blue/red) Microphone holder (with double-sided adhesive tape) 5 Call button...
- Page 2 HS-8100 BLUETOOTH CAR KIT Turn the car kit on using the On/Off switch (9). First use -> Step 4 Normal use -> Step 8 Once only (steps 4-7): Activate the pairing mode: press the Link button (3) for 7 seconds until the red indicator (4) flashes continuously (4 times per second).
- Page 3 HS-8100 BLUETOOTH CAR KIT Pin code = 1234 It may be possible to enter or alter the name of the car kit. Press Connect. Good connection: the red indicator will stop flashing. Go to step 9. For normal use: after turning the car kit on (step 3), press the Link button (3) for 3 seconds ->...
- Page 4 HS-8100 BLUETOOTH CAR KIT Button functions and indicators (The numbers between brackets refer to the product information diagrams.) Action Button Indicator Speaker Turn on On/Off (9) -> On Blue on Link (3) After 3 sec: flashes red. After 3 sec:...
- Page 5 • The other BT device has a smaller range (e.g. BT class 3: max. 1 metre). • There is another wireless device close by (such as a wireless video or wireless network). Go to www.trust.com/14271 for up-to-date FAQs, instruction manuals and more information on Bluetooth.
- Page 6 R&TTE Directive 1999/5/EC. It is a Class 1 wireless device and may be used in all EU countries. See www.trust.com/14271 for an up-to-date list of countries where the use of this product is permitted. (Note: this class indication is not the BT class).
