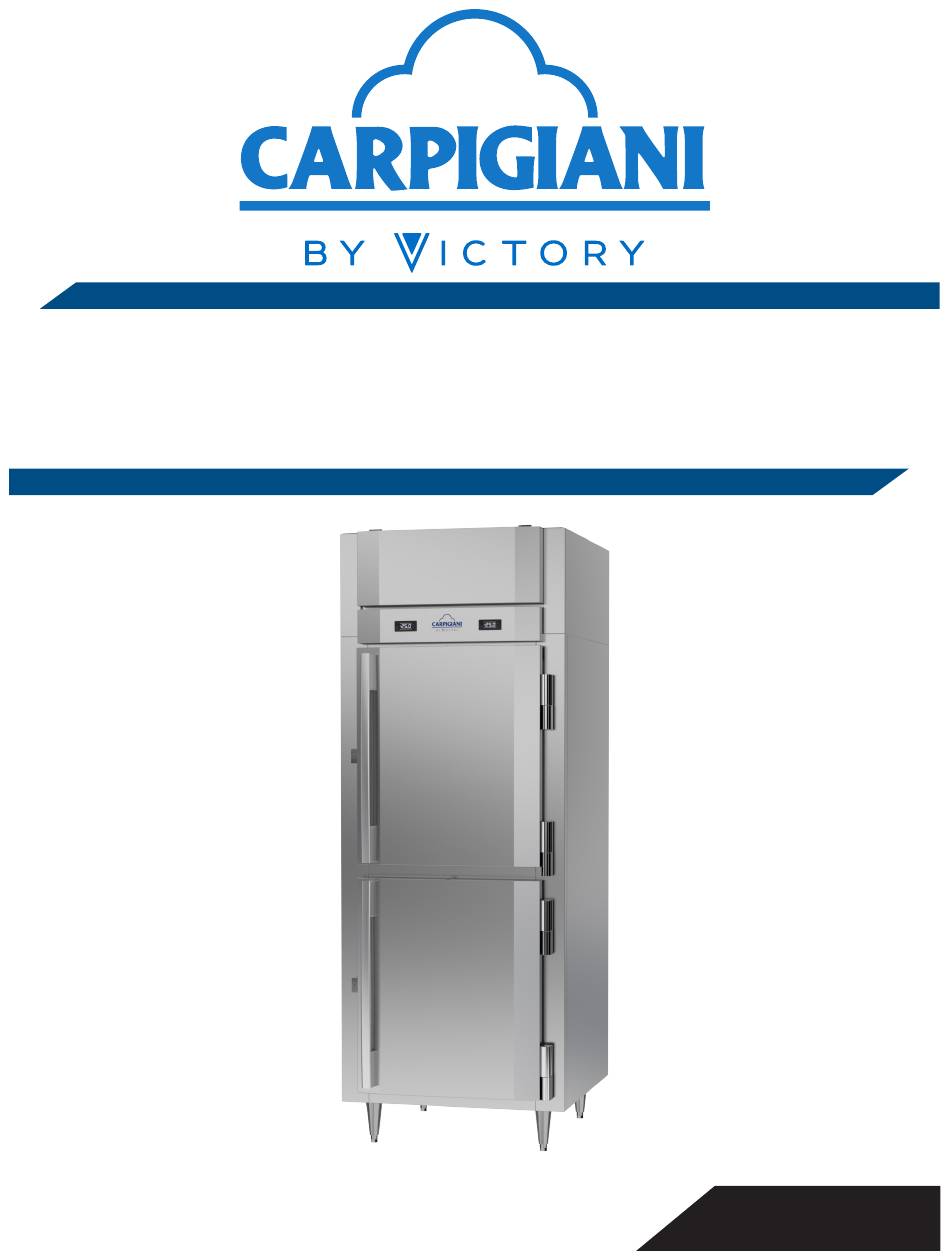

- Page 1 INSTALLATION AND OPERATING INSTRUCTIONS for all Hydrocarbon Ice Cream Hardening Freezers ICHA-1D-S1-EW-HD-HC 809-232A 9/29/2021 SEE BACK COVER FOR 3779 CHAMPION BLVD, WINSTON-SALEM, NC 27105 WARRANTY REGISTRATION Phone: (888) 845-9800 | Fax: (800) 253-5168 | Web: victoryrefrigeration.com...
-
Page 2: Table Of Contents
If you the high standards set by Victory! You have made a have any questions, Please call our Technical Service quality investment that with proper maintenance will give Department at (800) 684-1195. -
Page 3: Safety
R290 equipment. • Clean a dirty condenser with a sharp object. • Use ONLY Victory factory service parts. Use of non • Store gasoline, kerosene or any other flammable OEM parts can be dangerous because of the design material near the cabinet. -
Page 4: Safety
User Manual for ICHA Freezers Victory SAFETY CAUTION: If it is necessary to move the Freezer after removal from the skid, remove CAUTION all doors and carefully push the unit at a point of no more than 36” from the bottom to avoid damage. -
Page 5: Important Information
User Manual for ICHA Freezers Victory IMPORTANT INFORMATION This unit is intended to be used in a commercial The manufacturer has designed and produced this application. That includes bars and restaurants. machine with the finest in materials. The manufacturer assumes no liability for units that have been altered in If installed in a residence some commercial service any way. -
Page 6: Product Information
User Manual for ICHA Freezers Victory PRODUCT INFORMATION Half Glass Full Cabinet Dimensions Refrigerant Type / Model Sections or Full or Solid Load Charge (g) / Charge (oz.) w x d x h (Inches) Door Door Amps ICHA-1D-S1-EW-HD-HC 31 1/4 x 35 x 84 1/8... -
Page 7: Clearance And Placement
User Manual for ICHA Freezers Victory CLEARANCE AND PLACEMENT REAR AT SIDES Placement Consider the following when selecting a location for your Freezer: Clearance: • 12 in. at the top • 0.0 in. at the rear, • 0.0 in. at the left side •... -
Page 8: Unpacking And Set Up
User Manual for ICHA Freezers Victory UNPACKING AND SET UP Carefully inspect the shipping carton for damage. This is the only time that shipping damage may be claimed. If damage is suspected, open the carton immediately and, if there is damage, retain the carton and contact the shipper to make a claim. -
Page 9: Shelf Installation
9. Do NOT overload the shelves. The unit is designed to need to be squeezed slightly during installation. use all shelves that are supplied in an equally spaced manner. Contact Victory customer service if fewer 4. Install all remaining clips. shelves or a different configuration to ensure shelf overloading will not occur. -
Page 10: Electrical
GFCI circuit protection, minimum1” clearance between product and side walls, 4” Victory recommends using a HUBBELL Model Number clearance between product and ceiling, and 1” clearance GFRST83W 20A Heavy Duty Hospital Grade Self-Test from the bottom of the unit. -
Page 11: Using The Unit
User Manual for ICHA Freezers Victory USING THE UNIT Operation is simple, just keep it connected to the correct The freezer will automatically defrost as needed, there is power supply and the refrigerator will maintain the no set time for defrost. Push and immediately release the internal temperature it has been set to. -
Page 12: Sequence Of Operations
User Manual for ICHA Freezers Victory SEQUENCE OF OPERATIONS The freezer operates based on the air temperature measured by the probe located at the return air. OPERATION CONTROLLER ACTION OPERATION CONTROLLER ACTION Compressor turns Compressor turns The Compressor Contact The Compressor Contact... -
Page 13: Control Panel Display
User Manual for ICHA Freezers Victory CONTROL PANEL DISPLAY Condition Cabinet Temp > Set point + 2.5 ON or OFF Cabinet Temperature <= Set point - 2.5 ON or OFF Defrost ON or OFF Electronic Controller DEFROST (ESC) DOWN SELECT (OK) - Page 14 User Manual for ICHA Freezers Victory Note: When the controller is in a Standby Mode, a blue dot will be displayed as shown here. To switch out of Standby Mode, push and hold the Defrost button until the display changes.
- Page 15 User Manual for ICHA Freezers Victory Electronic Controller Alarms The alarm condition is always signaled by the alarm icon . To turn off the relative icon will continue flashing. NOTE: If alarm exclusion times are in progress (ALA folder of the parameter table), the alarm is not signaled.
-
Page 16: Cleaning And Maintenance
User Manual for ICHA Freezers Victory CLEANING AND MAINTENANCE Cleaning Schedule: Cabinet Condenser coil Gaskets Routine maintenance Daily wipe down Monthly inspection, Daily inspection, check Annually cleaning as required that hinges are tight to Weekly interior the cabinet. Daily Exterior Cleaning It is much easier to clean on a regular basis than to have 3. -
Page 17: Condenser Cleaning
User Manual for ICHA Freezers Victory CONDENSER CLEANING Keeping the condenser coil clean is critical to efficient 4. Remove the panel stand from its clip and secure into operation. the notch in the front right corner of the raised panel 1. -
Page 18: Methods For Cleaning Stainless Steel
User Manual for ICHA Freezers Victory METHODS FOR CLEANING STAINLESS STEEL Cleaning Needed Cleaning Agent Method of Application Affect on Finish Satisfactory for use on all Areal 20, Lac-O-Nu, Lumin Wash Rub with cloth as directed finishes. Smears and fingerprints O’Cedar Cream Polish, Stainless... -
Page 19: Help
User Manual for ICHA Freezers Victory HELP Trouble Diagnosis for the User Malfunction Possible Cause Likely Solution Connect to proper voltage circuit Unit not plugged in. Replace fuse or reset breaker. No cooling - unit is silent Fuse or circuit breaker tripped. -
Page 20: For The Service Tech - R290
User Manual for ICHA Freezers Victory FOR THE SERVICE TECH - R290 Other Information: Refrigeration service should only be attempted by a trained trade professional certified to work on R290 Evacuation: It is critical that a refrigeration system be systems. -
Page 21: For The Service Tech - Wiring Diagram - Same For Either System
User Manual for ICHA Freezers Victory FOR THE SERVICE TECH - WIRING DIAGRAM - SAME FOR EITHER SYSTEM 115VAC 60 HZ *SEE CONTROLLER DETAIL COMPRESSOR DETAIL CONDENSER FAN START RELAY S.C. COMP R.C. *SEE CONTROLLER DETAIL FACE HEATER (1) DOOR HEATER (1) -
Page 22: Limited Warranty
In no other consequential damage, and it excludes components that are event shall Victory be liable for a sum in excess of the purchase price removable without tools. Our obligation under this warranty shall be of the item. - Page 23 User Manual for ICHA Freezers Victory Warranty Registration Register your product online at Victory.com/parts-service or fill out and mail the form below. Cabinet Model Number: _____________________________________________ Date Of Installation: _________________ Cabinet Serial Number: _____________________________________________ Location Of Product Business Name: ____________________________________________________...
