Winston Wall Spotlight
Please read the entire instruction manual before using the product
and then save it for future reference. We reserve the right for
any errors in text or images and any necessary changes made
to technical data. In the event of technical problems or other
queries, please contact our Customer Services.

Safety

•
This product must only be installed by a qualified electrician.
•
The product is intended for fixed wall installation.
Warning: Before beginning any
electrical installation always
disconnect the power to the circuit
you are working on, either by
turning off the main circuit breaker
or by removing the fuse from
the consumer unit.

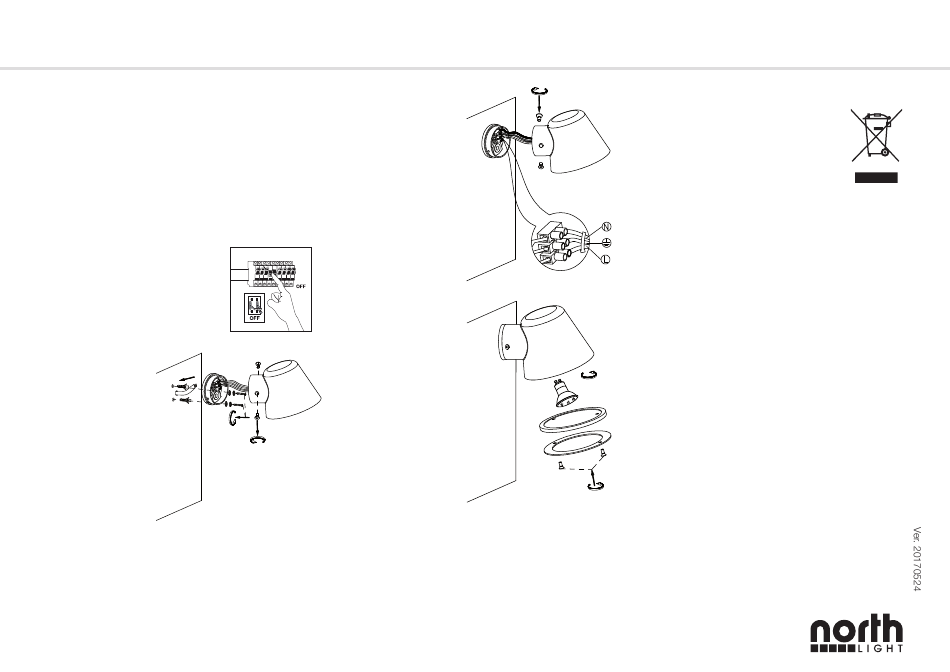

1. Unscrew the wall
bracket from
the spotlight,
pass the power
lead through
the bracket's
rubber grommet
and screw
the wall bracket
onto the wall.
Use fasteners
suitable for
the surface
material and
ensure that there
are no electrical
wires or water
pipes in the wall
where you intend
to drill/screw.
GREAT BRITAIN • CUSTOMER SERVICE
tel. 020 8247 9300
e-mail: customerservice@clasohlson.co.uk internet: www.clasohlson.co.uk postal: 10 – 13 Market Place, Kingston Upon Thames, Surrey, KT1 1JZ
Art.no 36-6759-1
36-6759-2
2. Connect the power
cable to the terminal
block and then screw
the spotlight onto
the wall bracket.
3. Screw in a bulb
of your choice.
1 × GU10, max 35 W
(sold separately).
Model
WG-481-WH
WG-481-BK

Responsible disposal

This symbol indicates that this product
should not be disposed of with general
household waste. This applies throughout
the entire EU. In order to prevent any harm to
the environment or health hazards caused by
incorrect waste disposal, the product must
be handed in for recycling so that the material
can be disposed of in a responsible manner.
When recycling your product, take it to your
local collection facility or contact the place of
purchase. They will ensure that the product is
disposed of in an environmentally sound manner.

Specifications

Rated voltage
220–240 V AC, 50 Hz
1 × GU10, max 35 W (sold separately)
Bulb
IP rating
IP44
Size
Height: 9 cm. Diam: 11.5 cm
ENGLISH
