North Light Elsa Quick Start Manual

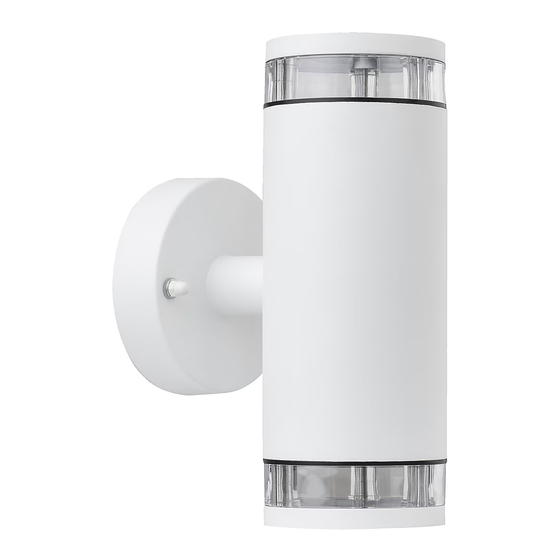

Elsa/Telma Wall Spotlight
Please read the entire instruction manual before using the product
and then save it for future reference. We reserve the right for
any errors in text or images and any necessary changes made
to technical data. In the event of technical problems or other
queries, please contact our Customer Services.
Safety
• This product must only be installed by a qualified electrician.
• The product is intended for fixed wall installation.
Installation
Warning: Before beginning any
electrical installation always
disconnect the power to the circuit
you are working on, either by
turning off the main circuit breaker
or by removing the fuse from
the consumer unit.
1. Screw the wall bracket screws into
the wall bracket.
2. Connect the power cable to the terminal block and screw
the wall bracket into the wall. Use fasteners suitable for
the surface material and ensure that there are no electrical
wires or water pipes in the wall where you intend to drill/screw.
GREAT BRITAIN • CUSTOMER SERVICE
tel. 020 8247 9300 e-mail: customerservice@clasohlson.co.uk internet: www.clasohlson.co.uk postal: 10 – 13 Market Place, Kingston Upon Thames, Surrey, KT1 1JZ
Art.no
Model EL-419D-WH/BK, EL-419D-2-WH/BK
3. Mount the spotlight
to the wall bracket.
Don't forget
the seal that sits
between the wall
bracket and
spotlight.
4. Screw in a bulb of your
choice (sold separately).
For art.no 36-6761-1, -2:
1 × GU10, max 35 W.
For art.no 36-6762-1, -2:
2 × GU10, max 35 W.
36-6761-1,36-6761-2,36-6762-1,36-6762-2
Responsible disposal
This symbol indicates that this product
should not be disposed of with general
household waste. This applies throughout
the entire EU. In order to prevent any harm to
the environment or health hazards caused by
incorrect waste disposal, the product must
be handed in for recycling so that the material
can be disposed of in a responsible manner.
When recycling your product, take it to your
local collection facility or contact the place of
purchase. They will ensure that the product
is disposed of in an environmentally sound
manner.
Specifications
36-6761-1, -2
Rated voltage
Bulb
IP rating
Height
36-6762-1, -2
Rated voltage
Bulb
IP rating
Height
ENGLISH
220–240 V AC, 50/60 Hz
1 × GU10, max 35 W (sold separately)
IP44
17.5 cm. Diam: 9 cm
The bulb must be no less than 50 cm from
the illuminated surface
220–240 V AC, 50/60 Hz
2 × GU10, max 35 W (sold separately)
IP44
23.5 cm. Diam: 9 cm
The bulb must be no less than 50 cm from
the illuminated surface
