Summary of Contents for VonHaus 3500113

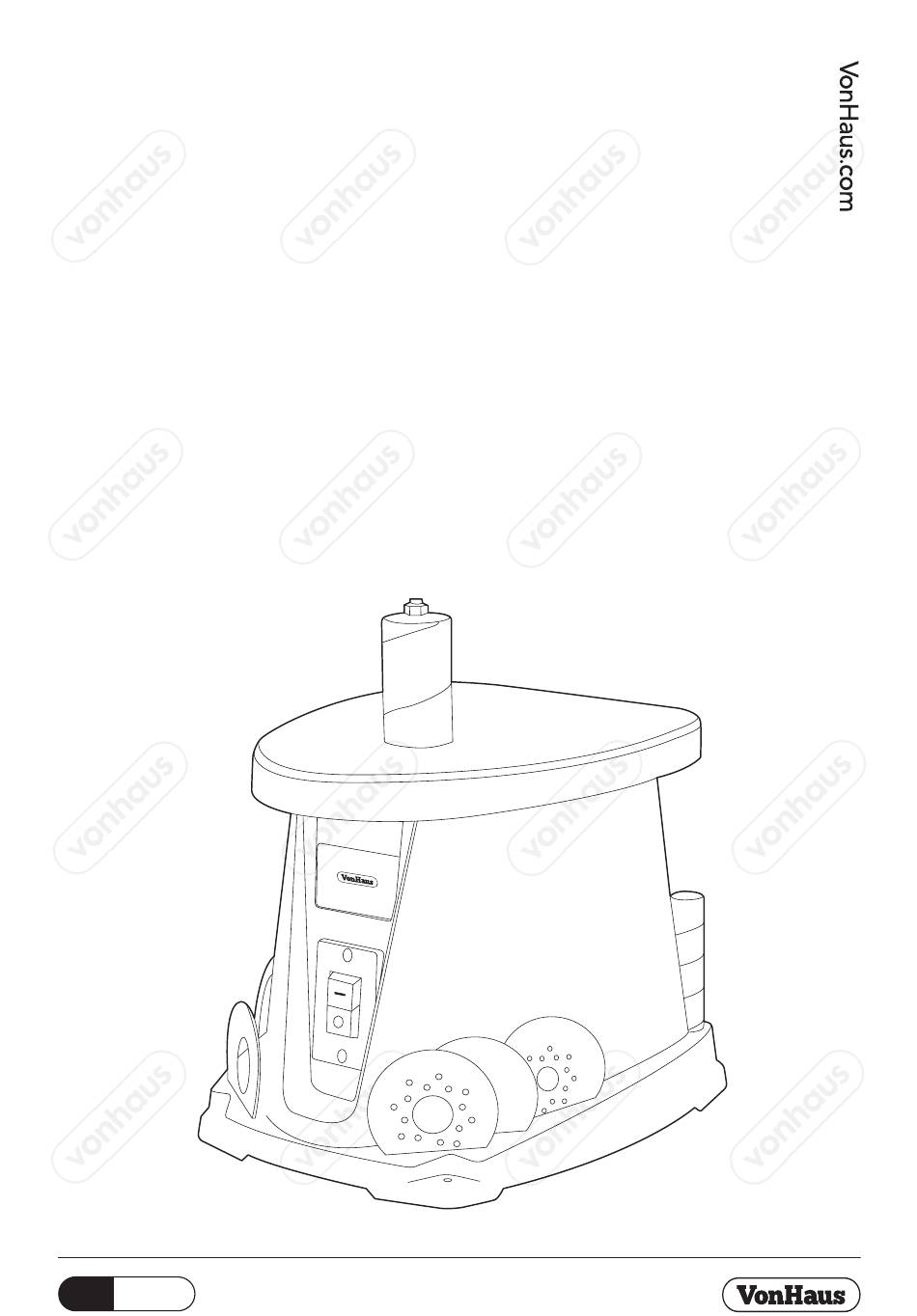

- Page 1 450W OSCILLATING BOBBIN SPINDLE SANDER 3500113 - Instruction Manual 0718...
- Page 2 CONTENTS Safety Instructions Safety Instructions Safety Instructions Safety Symbols Specification Bench Mounting, Dust Extraction...
- Page 3 Selecting a Table Insert, Selecting the Right Grade of Sanding Sleeve Fitting a Sanding Sleeve Operation, Cleaning Troubleshooting User Notes Warranty...
- Page 4 WARNING Please read and understand these Safety Warnings, Safety Symbols and Instructions carefully and retain for future use INTENDED USE. tools create sparks which may ignite the dust or fumes. Only use the Power Tool as described in this manual. The use of any accessory Keep bystanders, children and animals away while operating the power tool.
- Page 5 WARNING Please read and understand these Safety Warnings, Safety Symbols and Instructions carefully and retain for future use Always wear safety goggles (not glasses) accidents. that comply with ANSI safety standard POWER TOOL USE AND CARE. Z87.1. Use the power tool, accessories and Everyday glasses have only impact- tool bits etc.
- Page 6 WARNING Please read and understand these Safety Warnings, Safety Symbols and Instructions carefully and retain for future use immediately after operating the tool. Properly maintained sanding tools with They can become very hot. sharp sanding edges are less likely to bind and are easier to control.
- Page 7 SAFETY SYMBOLS The following safety symbols may appear on this product. Please ensure you understand their meanings before operating this product in order to prevent personal injury and avoid damage to the tool. WARNING! Read manual Wear eye Wear a Wear Pay attention before use...
- Page 8 SPECIFICATION RATED NO LOAD STROKE POWER VOLTAGE SPEED LENGTH 220-240V, ~ 50/60Hz 2000 1. On-Board Table Insert Storage 8. On-Board Spindle Storage 2. On/Off Switch 9. Upper Spindle Washers (x3) 3. Motor Housing 10. Table Insert (x6) 4. Table Top 11.
- Page 9 BENCH MOUNTING NOTE: Use nylon insert lock nuts or spring washers If the Spindle Sander is to be used in a permanent position, it is recommended that you secure it to a in the fixings to prevent vibration from loosening the rigid work surface.
- Page 10 SELECTING A TABLE INSERT Failure to use the correct table insert with its Sanding Sleeve Table Insert Upper Spindle matching sanding sleeve could result in pinched Diameter Size Washer (9) Size fingers or the workpiece being pulled down between the table insert and the sanding sleeve. 13mm / 1/2”...
- Page 11 FITTING A SANDING SLEEVE NOTE: All of the Sanding Sleeves (11), except the smallest 13mm (1/2”) Sanding Sleeve fit over a matching Rubber Fig 1. Drum (12). The Smallest Sanding Sleeve fits over the Spindle alone and uses the Small Washer. NOTE: Ensure there is no contact between the Sanding Sleeve and the Table Insert before turning the machine on.
- Page 12 OPERATION POWERING ON AND OFF The On/Off Switch (2) is located on the front of the Spindle Sander. To turn the Spindle Sander ON: Press the green button marked (-). To turn the Spindle Sander OFF: Press the red button marked (O).
- Page 13 TROUBLESHOOTING PROBLEM SOLUTION Ensure the tool is connected to mains power. THE TOOL WILL NOT START Activate the ON/OFF Switch. Check the fuse and replace if required. Spindle Lock Nut (6) is not tight enough. SANDING SLEEVE DOES NOT ROTATE Tighten Spindle Lock Nut in small WITH RUBBER DRUM increments until the Rubber Drum secures...
- Page 14 USER NOTES...
- Page 15 5th Floor The Tower Deva City Office Park Manchester M3 7BF Declare under our sole responsibility that the product: SKU: 3500113 Description: VonHaus 450W Oscillating Bobbin Spindle Sander. To which this declaration relates is in conformity with the following directives: 2006/42/EC, 2014/30/EU, 2011/65/EU.
- Page 16 Thank you for purchasing the 450W Oscillating Bobbin Spindle Sander. VonHaus is a registered trademark of DOMU Brands Ltd Made in China for DOMU Brands Ltd M24 2RW.
