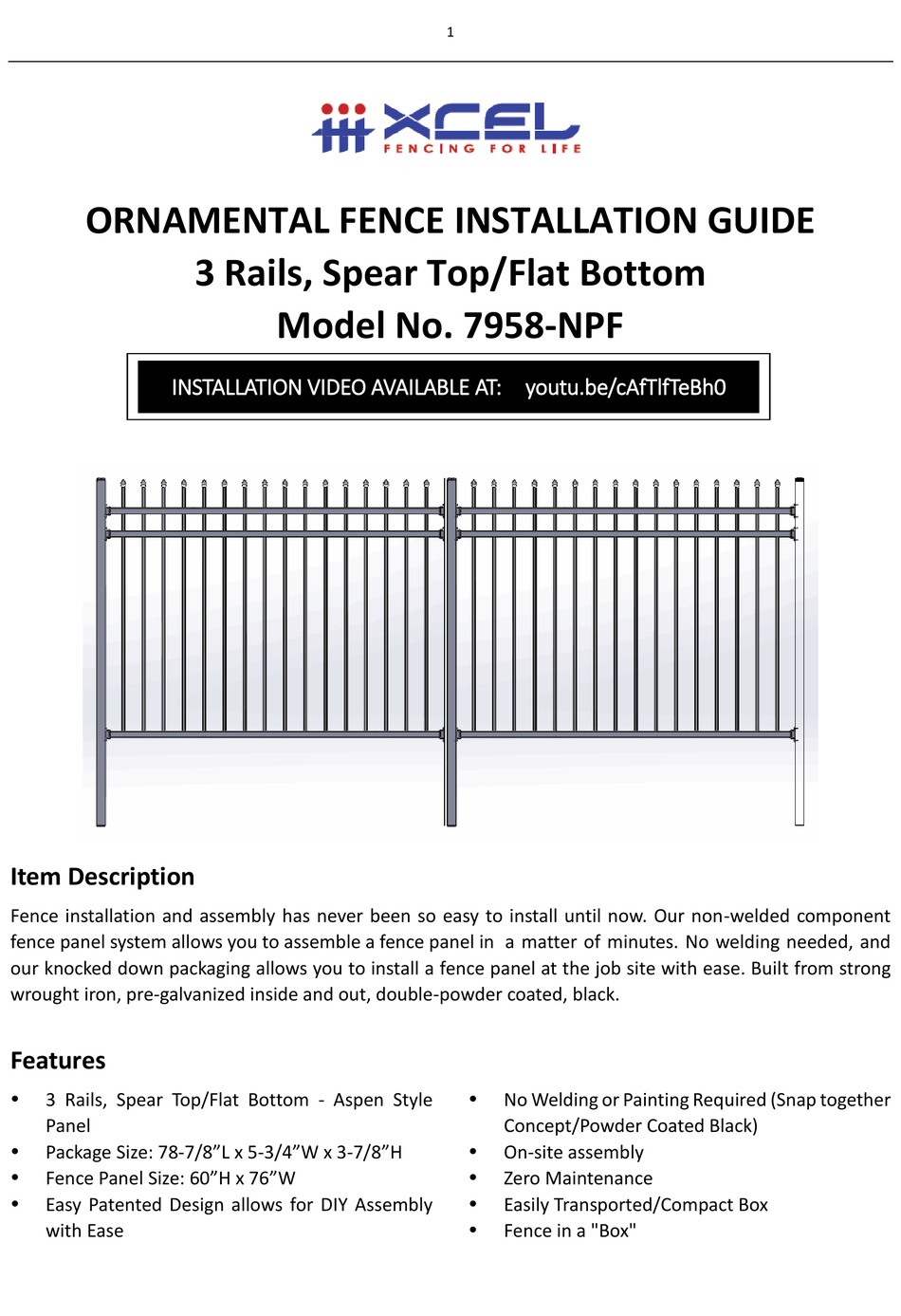

ORNAMENTAL FENCE INSTALLATION GUIDE
INSTALLATION VIDEO AVAILABLE AT: youtu.be/cAfTlfTeBh0
Item Description
Fence installation and assembly has never been so easy to install until now. Our non-welded component
fence panel system allows you to assemble a fence panel in a matter of minutes. No welding needed, and
our knocked down packaging allows you to install a fence panel at the job site with ease. Built from strong
wrought iron, pre-galvanized inside and out, double-powder coated, black.
Features
3 Rails, Spear Top/Flat Bottom - Aspen Style
Panel
Package Size: 78-7/8"L x 5-3/4"W x 3-7/8"H
Fence Panel Size: 60"H x 76"W
Easy Patented Design allows for DIY Assembly
with Ease
3 Rails, Spear Top/Flat Bottom
Model No. 7958-NPF
1
No Welding or Painting Required (Snap together
Concept/Powder Coated Black)
On-site assembly
Zero Maintenance
Easily Transported/Compact Box
Fence in a "Box"
Advertisement
Related Manuals for XCEL 7958-NPF
Summary of Contents for XCEL 7958-NPF
- Page 1 ORNAMENTAL FENCE INSTALLATION GUIDE 3 Rails, Spear Top/Flat Bottom Model No. 7958-NPF INSTALLATION VIDEO AVAILABLE AT: youtu.be/cAfTlfTeBh0 Item Description Fence installation and assembly has never been so easy to install until now. Our non-welded component fence panel system allows you to assemble a fence panel in a matter of minutes. No welding needed, and our knocked down packaging allows you to install a fence panel at the job site with ease.
-
Page 2: Installation Tips
- 2 - Please read these instructions carefully before installing your XCEL Fence. If you have any questions or issues installing the fence, please contact us at 866-392-0808 for assistance. Before You Begin … Sketch Plan and confirm materials Draw and sketch out your fence plan. Plan Check your local zoning laws. - Page 3 Package Contents ATTENTION: 1 pc. 6.5' Post (Soil Use) or Cut to 5’ for Concrete Use PLEASE MAKE SURE ALL CONTENTS ARE IN 1 pc. Top Rail THE FENCE KIT. 1 pc. Middle Rail DO NOT ATTEMPT TO ASSEMBLE THE FENCE IF ...
-
Page 4: Product Overview
Required Tools & Materials for Assembly Power/Hammer Drill Post Hole Digger Tape Measure Concrete Mix String & Stakes Socket & Wrench Level Hacksaw Product Overview Brackets Gate Sold Separately... -
Page 5: Layout Installation
Layout Installation Using the image as a guide, establish your fence line by staking out the areas you wish to enclose. Mark every 6.5’ section to identify location of the posts. NOTE: If you are left with a space less than a full size panel, the rails can be cut down to fit the space by using a hacksaw. - Page 6 Fence Panel Assembly (on flat surface) 1. Locate top rail, middle rail, and bottom rail and begin to insert pickets thru top and middle rails 2. Place rails on the floor, facing up and begin inserting pickets a. Make sure the Spear Top (Spears) Pickets are facing you b.
- Page 7 Soil Installation Instructions (At Job Site) 1. Set posts (dig hole 18” deep) 2. Attach brackets on one side of the post with included tek screws Measure 5-3/8” from the top of the post and attach Bracket Measure 1-7/8” from first Bracket to set the second Bracket Measure 2”...
- Page 8 Concrete Floor Installation Instructions (At Job Site) 1. Use included Flange to drill holes on concrete floor. Hammer in anchor bolts to secure Flange. Attach brackets to one side of the post, starting from the top Make sure post is cut to 5’ long and insert/secure onto Flange with tek screws Measure 5-3/8”...
