DISPLAY TYPE PRESSURE SWITCH
PS30
marking
（Compliance with EMC Standards）
INSTRUCTION MANUAL
Important Information and Warnings
①Non-corrosive gases should be used as pressure media for PS30.
②The maximum applicable pressure for the PS30-102R at the time of vacuum break is 500kPa.
③Always carry out wiring work with the power off.
④For stability, use a regulated direct current power supply.
Surge absorbing devices (diodes, varistors, etc.) are necessary if inductive loads such as relays and solenoids are connected to the same
power line as the PS30. Do not wire in parallel to high voltage cables or power lines, or use the same cable ducts which contain high
voltage cables or power lines.
⑤Check fluctuations in power voltage so that the power input cannot exceed the rating.
⑥Be careful not to apply force to any wires during handling, or apply force to the display area of the main
body during piping.
⑦Use pH neutral detergents to clean the body. Do not use lacquer thinner and other solvents for cleaning.
⑧Do not use pointed objects such as pens to press the setting buttons on the display panel. Doing so may
damage the setting buttons by piercing them.
⑨Do not put a piece of wire or other long thin object from pressure port. Doing so may damage the
internal diaphragm to cause malfunctioning.
⑩Do not use the product in a place where much steams and/or dust exist or the product may be subjected
to direct water or oil splash.
⑪ ［Recommended measures against noise interference］
It is recommended to use noise absorbing components (line filter, surge absorber, etc.) in the power supply
terminal of the PS30.
Thank you for purchasing a
NIDEC COPAL ELECTRONICS CORP. product.
For proper and optimal use of the product, please read
this manual thoroughly before using.
Keep this manual for future reference.
For more detailed information please ask for the nearest
Ver.2.1a
Nishi-Shinjuku, Shinjuku-ku, Tokyo 160-0023 Japan Phone ： （ 03） 3364-7055
distributor or the following sales center.
Nishi-Shinjuku Kimuraya Bldg., 7-5-25

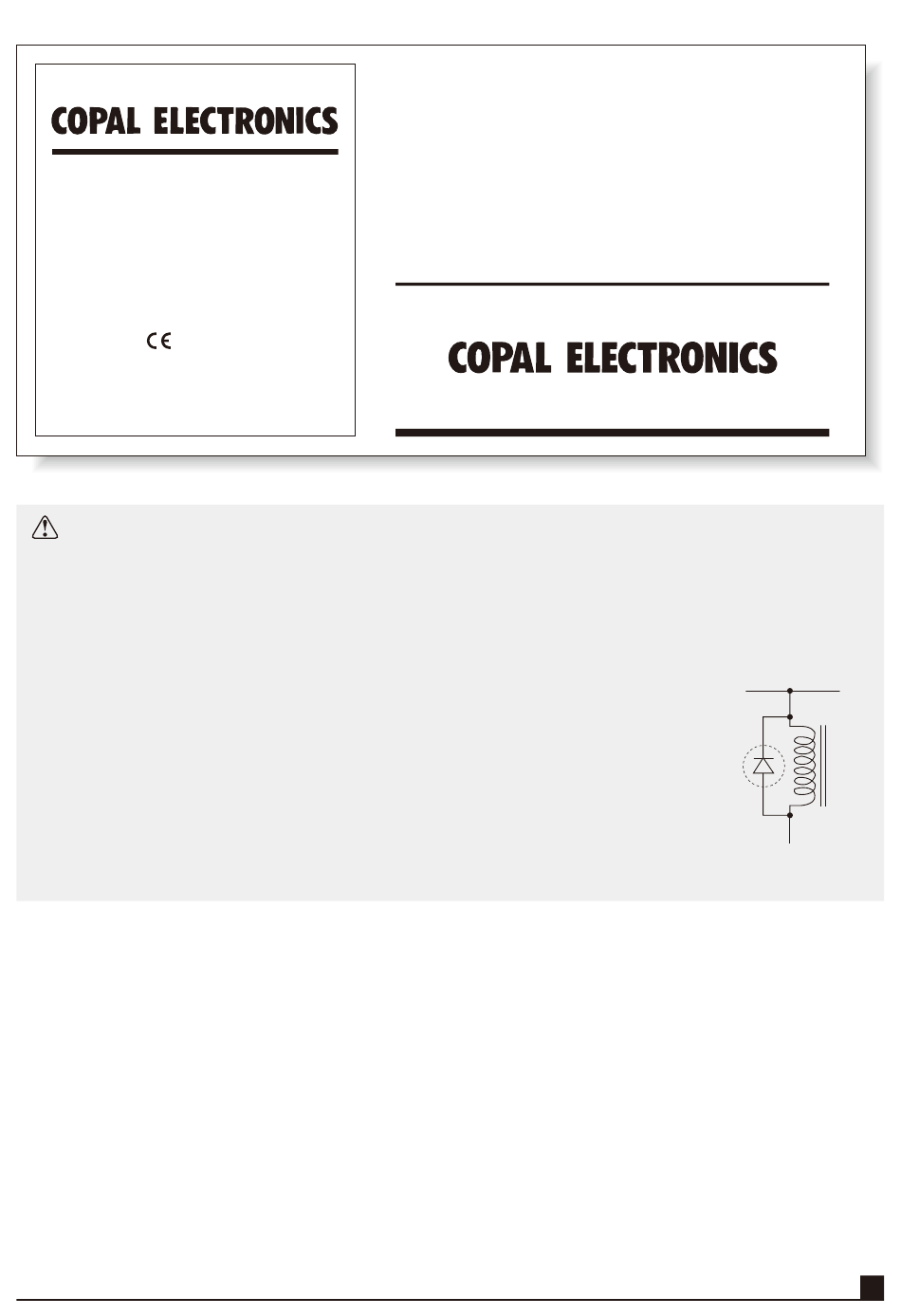

Surge absorbing circuit
1
Advertisement
Table of Contents
Related Manuals for Copal PS30
Summary of Contents for Copal PS30
- Page 1 Nishi-Shinjuku, Shinjuku-ku, Tokyo 160-0023 Japan Phone ： （ 03） 3364-7055 Important Information and Warnings ①Non-corrosive gases should be used as pressure media for PS30. ②The maximum applicable pressure for the PS30-102R at the time of vacuum break is 500kPa. ③Always carry out wiring work with the power off. ④For stability, use a regulated direct current power supply. Surge absorbing devices (diodes, varistors, etc.) are necessary if inductive loads such as relays and solenoids are connected to the same power line as the PS30. Do not wire in parallel to high voltage cables or power lines, or use the same cable ducts which contain high voltage cables or power lines. ⑤Check fluctuations in power voltage so that the power input cannot exceed the rating. ⑥Be careful not to apply force to any wires during handling, or apply force to the display area of the main body during piping. ⑦Use pH neutral detergents to clean the body. Do not use lacquer thinner and other solvents for cleaning. ⑧Do not use pointed objects such as pens to press the setting buttons on the display panel. Doing so may ...
-
Page 2: Specifications
Specifications PS30 Model 102R 103R Gauge pressure Type (Pressure reference) Rated pressure range −100〜100kPa −0.1〜1.0MPa Maximum pressure 200kPa 1.5MPa Break-down pressure 500kPa 2.0MPa Non-corrosive gases Acceptable media 12V〜24VDC±10%, ripple P-P 10% or less Power supply 40mA maximum Current consumption Two outputs: NPN/PNP Transistor, open collector Switch rating: 30VDC, 100mA maximum Residual voltage: 1.2V maximum （NPN） / 2.2V maximum （PNP） at 100mA Switch outputs Hysteresis 0〜30 count setting (adjustable) Repeatability ±0.3%F.S. 5ms maximum Response Included Short circuit protection Signed 2 1/2 digit, 7-segment-LED indication （ sampling cycle: approx. 4 times per second）... -
Page 3: Error Messages
Copal Electronics Corp. Pressure value exceeds 110% of the rating. （This error examples Check the applied pressure. when the pressure more than 111kpa is applied to the 102R modele.） Applied pressure is higher than the maximum value Check the applied pressure. of the pressure display range. Applied pressure is higher than the maximum value Check the applied pressure. of the pressure display range. （Note 1） No error messages will be shown when non-display mode is selected. （Note 2） When the applied pressure exceeds 110％ of rated pressure, the display indicate“flashing”or“−L−”or“−H−”. This displayed value is not accurate value, please use within the rated pressure range. Functions Non-display mode ●When you do not operate any buttons for about 10 seconds, the system will automatically select non-display mode PS30 and the LED indicator section will go off. Pressing any key willcause the LED indicator section to come on back again. （Note 1） The decimal point shown in the figure on the right blinks during non-display mode. （Note 2） Switch outputs and switch LEDs are operable even during non-display mode. （Note 3） No error messages will appear during non-display mode. ※For how to select non-display mode, see the description of the initial setting mode. Conversion factor ●You can select a conversion factor from the options shown in the table on the right. Pressure range （Note 1） Slashed box: No factors options are available due to inappropriate resolution 102R 103R Number and the number of digits for display. selected Factor Display range... -
Page 4: Operational Procedures
Switch working mode setting （ eight combinations） Mode Operations Press the button more than one second. Mode ▲ Press the and buttons simultaneously. SW1 setting Pressure SW2 setting Setting Hysteresis （ 0〜30 counts） Mode Press the button more than one second. Filter setting （ F0〜F2） Initial Setting Mode This mode is used to set non-display mode, magnification and switch outputs. Entering Initial Setting Mode PS30 ▼ Press the and buttons simultaneously in Operations Mode. After switched to Initial Setting Mode, the third digit will blink. （The values for the 102R model and for the 103R have been set in the factory.） Making initial setting Press the button to move to the next digit. The value of the digit PS30 may be set when the LED below the digit blinks. ▼ ▲ The number will change every time the or button is pressed. Press the button to move to the next digit. Display mode Factor Switch working mode 102R ▲... - Page 5 Pressure Setting Mode This mode is used to make Setting 1, Setting 2, hysteresis and digital filter setting. Entering Pressure Setting Mode PS30 ▲ Press the and buttons simultaneously in Operations Mode. After switched to Pressure Setting Mode, SW1 should be blinking to indicate the value for Setting 1. （The values for 102R and for 103R have been set in the factory.） Setting pressure value Setting 1 （P1） The SW1 LED should be blinking. ▼ ▲ Use the or button to select a value for Setting 1 （P1） . PS30 （The values for 102R and for 103R have been set in the factory.) （Note 1） The setting can only be made within the allowable display range. （Note 2） The setting should meet P1≦ P2 − 2H when Window Comparator Mode is selected. Press the button. Setting 2 （P2） The SW2 LED should be blinking. ▼ ▲ Use the or button to select a value for Setting 2 （P2） . PS30 （The values for 102R and for 103R have been set in the factory.） （Note 1） The setting can only be made within the allowable display range. （Note 2） The setting should meet P1≦ P2 − 2H when Window Comparator Mode is selected. Press the button. The SW1 and SW2 LEDs should be blinking.
-
Page 6: Zero Point Adjustment
If using the port block （ sold separately） , put the O-ring （ P8） in the O-ring groove located on the back of the main body as shown in the figure below, and install the port block by two M3×10 male Main body （ PS30） screws. When installing, hold the base section of the main body, then tighten the male screws. ... - Page 7 Panel Holder Set （ Option） If using the panel holder set （sold separately） , install the main body to the panel folder, and hold the main body by two panel stopper through the attachment panel. ＋0.5 Panel holder cover Panel holder panel cut dimentions （Panel thickness:1〜3.6mm） Main body （ PS30） ■Accessories （Sold separately） Attachment panel Holder Product name Model no. Description Applicable cover set model Angled bracket for wall Angled bracket Panel stopper PG-30 ACPG-001 attachment, two M3×4 for wall attachment /PS30 Panel （two） male screws holder set Angled bracket for floor Angled bracket PG-30 ACPG-002 attachment, two M3×4 ...
-
Page 8: Warranty
φ4.2×5.2Elliptical hole φ4.2×5.2 Material ： Spcc （ black chromate） Elliptical hole t=1.6 Panel holder set・Holder cover （sold separately） （□42.6） （5.7） □40.0 23.5 Warranty This product can be covered by one-year warranty. COPAL ELECTRONICS warrants that any part of the product which proves to be defective due to the design and/or manufacturing of COPAL ELECTRONICS within one year from the date of delivery will be repaired or replaced, free of charge. Note that the warranty will only be applied to the product alone, not to damages induced by any failure of the product. The warranty will not be applied in any of the following cases: ①Failure and damage caused by improper use not conforming to the instruction manual or negligent handling. ②Failure and damage caused by inappropriate modification, adjustment or repair. ③Failure and damage caused by natural disaster, fire or other act of God. Model Numbers P S 3 0 − 1 0 2 R − N Pressure range Switch output type 102 ：... - Page 9 Gate Drivers Click to view products by manufacturer: Nidec Copal Other Similar products are found below : 00028 00053P0231 8967380000 56956 CR7E-30DB-3.96E(72) 57.404.7355.5 LT4936 57.904.0755.0 5801-0903 5803-0901 5811-0902 5813-0901 58410 00576P0030 00581P0070 5882900001 00103P0020 00600P0005 00-9050-LRPP 00-9090-RDPP 5951900000 01-...
