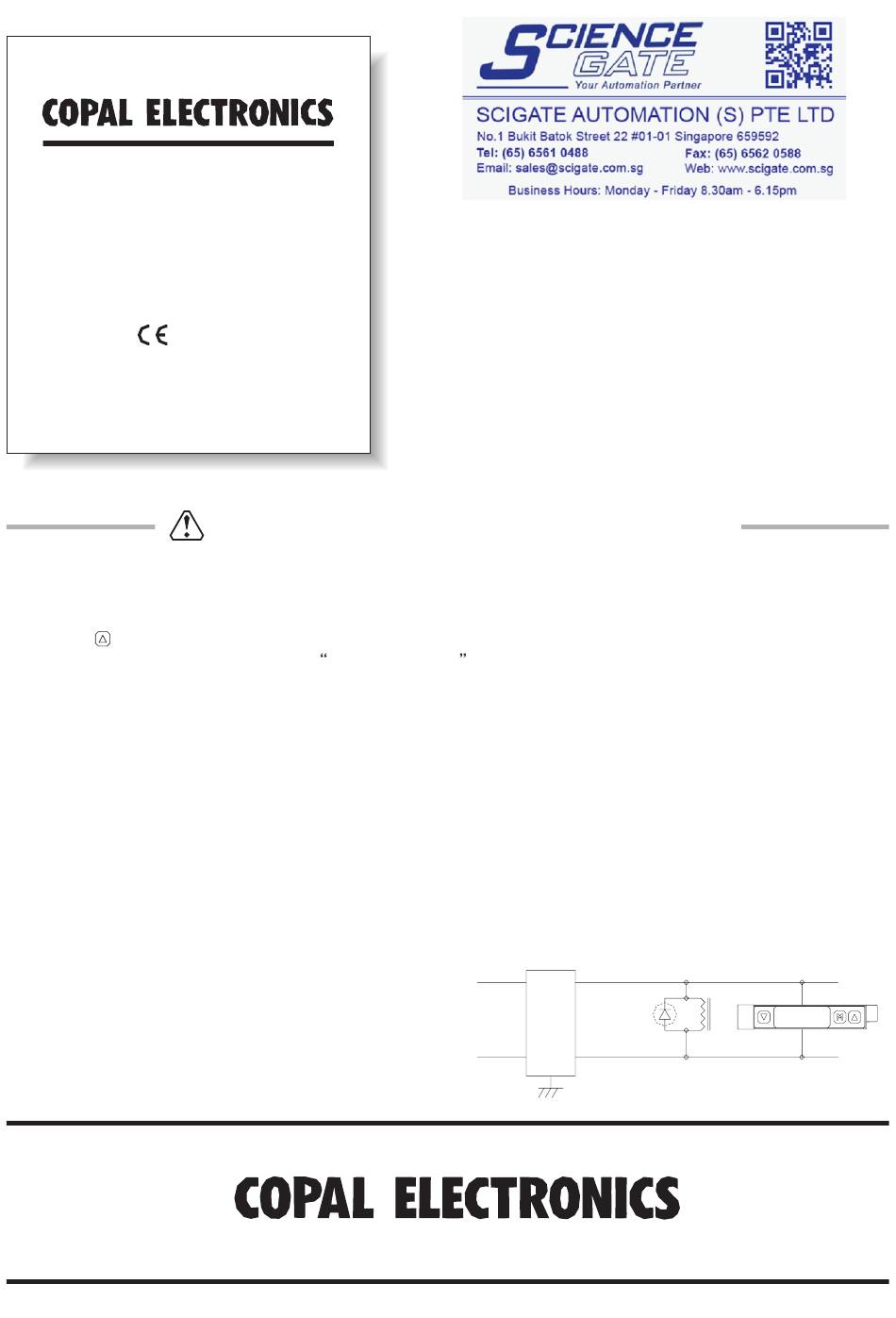

DISPLAY TYPE
CONPOUND PRESSURE SWITCH
PS60
marking
（Compliance with EMC Standards）
INSTRUCTION MANUAL
①Non-corrosive gases should be used as pressure media for PS60.
②The maximum applicable pressure for the PS60-102R/302R at the time of vacuum break is 500kPa.
③Always carry out wiring work with the power off.
④Press the button more than 3 seconds in the Operation Mode, the panel lock function will be completed and disable to the
key operation. Please refer to the following Panel lock function and cancel the pane lock function.
⑤For stability, use a regulated direct current power supply.
Surge absorbing devices （ diodes, varistors, etc.） are necessary if inductive loads such as relays and solenoids are connected to
the same power line as the PS60. Do not wire in parallel to high voltage cables or power lines, or use the same cable ducts
which contain high voltage cables or power lines.
⑥Check fluctuations in power voltage so that the power input cannot exceed the rating. Also please do not give a rapid voltage
fluctuation like intercepting the eenergization immediately after starting and during setting operation. Memory data may
disappear, and whitch results in a defect of operation/
⑦Be careful not to apply force to the display area of the main body during piping.
⑧Use pH neutral detergents to clean the body. Do not use lacquer thinner and other solvents for cleaning.
⑨Do not use pointed objects such as pens to press the setting buttons on the display panel. Doing so may damage the setting
buttons by piercing them.
⑩Do not put a piece of wire or other long thin object from pressure port. Doing so may damage the internal diaphragm to cause
malfunctioning.
⑪Do not use the product in a place where much steams
and/or dust exist or the product may be subjected to
direct water or oil splash.
⑫ 【Recommended measures against noise interference】
It is recommended to use noise absorbing components
（line filter, surge absorber, etc.） in the power supply
terminal of the PS60.
For more detailed information please ask for the nearest distributor or the following sales center.
Ver.2.1
Important Information and Warnings
Nishi-Shinjuku Kimuraya Bidg. , 7-5-25
Nishi-Shinjuku Shinjuku-ku Tokyo 160-0023 , Japan Phone.：(03) 3364-7055
Thank you for purchasing a
NIDEC COPAL ELECTRONICS CORP. product.
For proper and optimal use of the product, please read this
manual thoroughly before using.
Keep this manual for future reference.
Power supply unit
AC input
DC output
ＦＧ
Earthing of FG terminal
Surge absorbing circuit
PS60
＋Ｖ
Advertisement
Table of Contents
Related Manuals for Copal PS60
Summary of Contents for Copal PS60
- Page 1 DISPLAY TYPE CONPOUND PRESSURE SWITCH Thank you for purchasing a PS60 NIDEC COPAL ELECTRONICS CORP. product. For proper and optimal use of the product, please read this manual thoroughly before using. marking Keep this manual for future reference. （Compliance with EMC Standards） INSTRUCTION MANUAL Ver.2.1 Important Information and Warnings ①Non-corrosive gases should be used as pressure media for PS60. ②The maximum applicable pressure for the PS60-102R/302R at the time of vacuum break is 500kPa. ③Always carry out wiring work with the power off. ④Press the button more than 3 seconds in the Operation Mode, the panel lock function will be completed and disable to the key operation. Please refer to the following Panel lock function and cancel the pane lock function. ⑤For stability, use a regulated direct current power supply. Surge absorbing devices （ diodes, varistors, etc.） are necessary if inductive loads such as relays and solenoids are connected to the same power line as the PS60. Do not wire in parallel to high voltage cables or power lines, or use the same cable ducts which contain high voltage cables or power lines. ⑥Check fluctuations in power voltage so that the power input cannot exceed the rating. Also please do not give a rapid voltage fluctuation like intercepting the eenergization immediately after starting and during setting operation. Memory data may ...
-
Page 2: Specifications
Specifications PS60 Model 102R 302R 103R Gauge pressure Type （Pressure reference） -100〜100kPa -100〜300kPa -0.10〜1.00MPa Rated pressure range 200kPa 600kPa 1.5MPa Maximum pressure 500kPa 1.0MPa 2.0MPa Break-down pressure Non-corrosive gases Acceptable media 12V〜24VDC±10%, ripple P-P 10% or less Power supply 30mA maximum Current consumption NPN （Two outputs） ,PNP （Two outputs） Transistor, open collector ... - Page 3 Error Messages ■ If the following error messages are displayed, follow the procedures in the table: Error message Problem Solution Overload current. （Brinking of SW1 or SW2 indicates Disconnect the power, then check the load condition. excessive current on SW1 or SW2.） Press the button and reset the display. Release the applied pressure Pressure detected when adjusting the zero point. in the pressure port (opened to the atmosphere) and adjust the zero point again. Applied pressure is higher than the maximum value Check the applied pressure. of the pressure display range. Functions Initial LED Display PS60 PS60 ｋＰａ ｋＰａ Ｐ１ Ｐ１ Ｐ２ Ｐ２ All LED flash once. The Operations Mode （pressule detection） is activated. Non-display mode（Low power mode） ●When you do not operate any buttons for about 10 seconds, the system will automatically select non-display mode and the LED indicator section will go off. Pressing any key will cause the LED indicator section to come on back again. （Note 1） The decimal point shown in the figure on the right blinks during non-display mode. PS60 ｋＰａ Ｐ１ （Note 2） Switch outputs and switch LEDs are operable even during non-display mode. ...
-
Page 4: Operational Procedures
Switch working mode setting （eight combinations） Mode Press the button more than one second. Operations Mode Press the and buttons simultaneously. P1 setting Pressure P2 setting Setting Hysteresis （ 0〜30 counts） Mode Filter setting （F0〜F2） Press the button more than one second. Initial Setting Mode This mode is used to set non-display mode, magnification and switch outputs. Entering Initial Setting Mode PS60 ｋＰａ Press the and buttons simultaneously in OperationsMode. Ｐ１ Ｐ２ After switched to Initial Setting Mode, the third digit will blink. （The values for the 102R / 302R model and for the103R have been set in the factory.） Making initial setting PS60 ｋＰａ Press the button to move to the next digit. The value of the digitmay be set when the LED below Ｐ１ Ｐ２ the digit blinks. The number will change every time the or button is pressed. Press the button to move to the next digit. Display mode Factor Switch working mode... -
Page 5: Zero Point Adjustment
Pressure Setting Mode This mode is used to make Setting 1, Setting 2, hysteresis and digital filter setting. Entering Pressure Setting Mode PS60 ｋＰａ Press the and buttons simultaneously in Operations Mode. Ｐ１ After switched to Pressure Setting Mode, P1 LED should be Ｐ２ blinking to indicate the value for Setting 1. Setting pressure value The P1 LED should be blinking. Setting 1 （P1） Use the or button to select a value for Setting 1 （P1） . PS60 ｋＰａ Ｐ１ （The values for 102R and for 103R have been set in the factory.) Ｐ２ （Note 1） The setting can only be made within the allowable display range. （Note 2） The setting should meet P1≦ P2 - 2H when Window Comparator Mode is selected. The P2 LED should be blinking. Setting 2 （P2） Use the or button to select a value for Setting 2 （P2） . PS60 ｋＰａ Ｐ１ （The values for 102R and for 103R have been set in the factory.） Ｐ２ ... - Page 6 Panel Protection Panel lock function The panel lock function is used to lock the key operation in order to prevent preset values from being PS60 ｋＰａ accidentally changed. Ｐ１ Ｐ２ ・To enable the panel lock function, press button more than 3 seconds. Panel lock function is not erased even if blinks twice and the buttons are locked. the power supply is turned off. ・To disable the panel lock function, press button more than 3 seconds. blinks twice and the buttons are locked. Piping and Installation Piping When connecting a available joint to the pressure port, hold the base section of the main body and make sure that the tightening torque is 1.0N ・ m （M5 female） or less. Note） Please do not directly hold the case only when tightening. Also, do not use the wrench to any other part than the port section when tightening. Such handling may cause a breakage of the switch. DIN rail attachment PS60-103R-NMCN RANGE: -0.10 〜 1.00 MPa BLACK:SWITCH1(NPN 30V 100mAmax) WHITE:SWITCH2(NPN 30V 100mAmax) BROWN:POWER SUPPLY(DC12〜24V) BLUE :COMMON LOT.8M1 MADE IN JAPAN Stopper （ POM） ...
-
Page 7: Warranty
Four core cable （φ4） , AWG26 blue 0V Contact:JST （SXA-001T-P0.6L） Vinyl chloride, UL2844 Warranty This product can be covered by one-year warranty. COPAL ELECTRONICS warrants that any part of the product which proves to be defective due to the design and/or manufacturing of COPAL ELECTRONICS within one year from the date of delivery will be repaired or replaced, free of charge. Note that the warranty will only be applied to the product alone, not to damages induced by any failure of the product. The warranty will not be applied in any of the following cases: ① Failure and damage caused by improper use not conforming to the instruction manual or negligent handling. ② Failure and damage caused by inappropriate modification, adjustment or repair. ...
