Summary of Contents for Ripley Miller VIS400

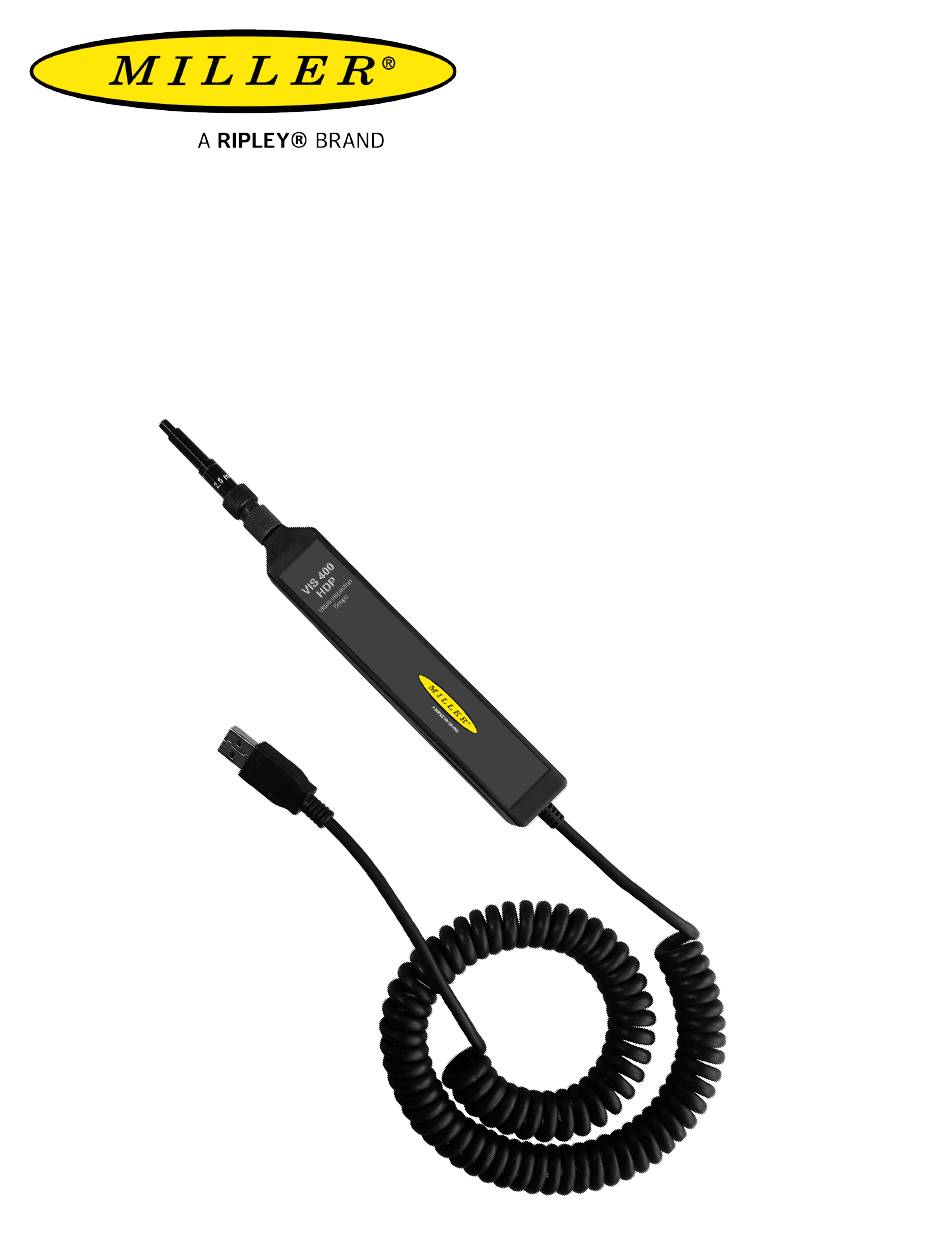

- Page 1 VIS400 Fiber Inspection Scope User Guide VIS400 User Guide Page 1...
-
Page 2: Table Of Contents
Contents Introduction Device Overview Basic Device Functionality Endface Cleaning and Inspection Procedure Integration with Windows InSpec Certifications and Contact Information VIS400 User Guide Page 2... -
Page 3: Introduction
Introduction The VIS400 Fiber Inspection Scope is a low cost, and compact Inspection scope for verrifying compliance with the IEC 61300-3-35 Specification. This document will serve as an overview of the major features and functions of the device as well as instructions for use with the Windows InSpec software. If you are looking for a standalone inspection system take a look at the VIS300C inspection system. -
Page 4: Basic Device Functionality
Basic Device Functionality Focusing There are two options for focusing the VIS400 camera to get a clear image of the fiber end. the focus methodused will largely depend on the type of connector being inspected, as well as the accessibility of the fiber end. 1). -
Page 5: Endface Cleaning And Inspection Procedure
Endface Cleaning and Inspection Procedure Intro Nearly 95% of all fiber optic system failures can be attributed to dirt on the fiber endface. Such situations are ofent entirely avoidable if proper cleaning procedures are followed. The International Electrotechnical Commision (IEC) has created a standard of fiber endface cleanliness, as well as a thorough fiber cleaning procedure used to achieve that standard. - Page 6 The appropriate, IEC-specified cleaning and inspecting procedure tasks the technician with examining the fiber endface with an inspection scope and performing the necessary cleaning actions. If a connector endface is particularly dirty, three dry cleanings must be performed, followed by two wet/dry cleanings. Connectors still contaminated with unmovable debris after the full procedure has been attempted may need to be replaced.
-
Page 7: Integration With Windows Inspec
Integration with Windows InSpec InSpec is a free software package from Ripley offering complete inspection, saving, and reporting of pertinent fiber endface images for fiber optic installations. This software is available for download at Ripley-tools.com/download. Connection To connect the VIS400 to the windows inspec software simply plug the USB cable into the PC while running the InSpec software. - Page 8 Once you have an image you want to save, weather it is analyzed or just a live image pressing the “Save” button will open the popup below. First you need to enter a name for the fiber, next you need to assign a location for the fiber.
- Page 9 “Reset to Defaults” to return to this arrangement of information. Enter all info as needed and click Save to have the information appear on reports. The Ripley Miller logo will appear on reports. Click Browse to choose a different logo to place on the report, if desired.
- Page 10 OPM readings you took on a Ripley power meter. if you want to rename any reading or inspection press them then press “Edit” or double click them to open the edit popup. once you have edited the name / comment simply press save again.
-
Page 11: Certifications And Contact Information
Certifications,Accessories, and Contact Info Warranty The VIS400 comes with a 2 year warranty for any manufacturer defects or damage due to reasonable use. To start the RMA process simply email or call technical support! Inspection Scope Accessories Inspection Tip Adapters Part Number Description AC 034B... - Page 12 • Consult the dealer or an experienced radio/TV technician for help. Contact Support ontact us with any questions pertaining to this or any other Ripley product. Call Us: Email Us: (603) 524-8350 tech.support@odm.ripley-tools.com Visit Us Online: www.ripley-tools.com...
