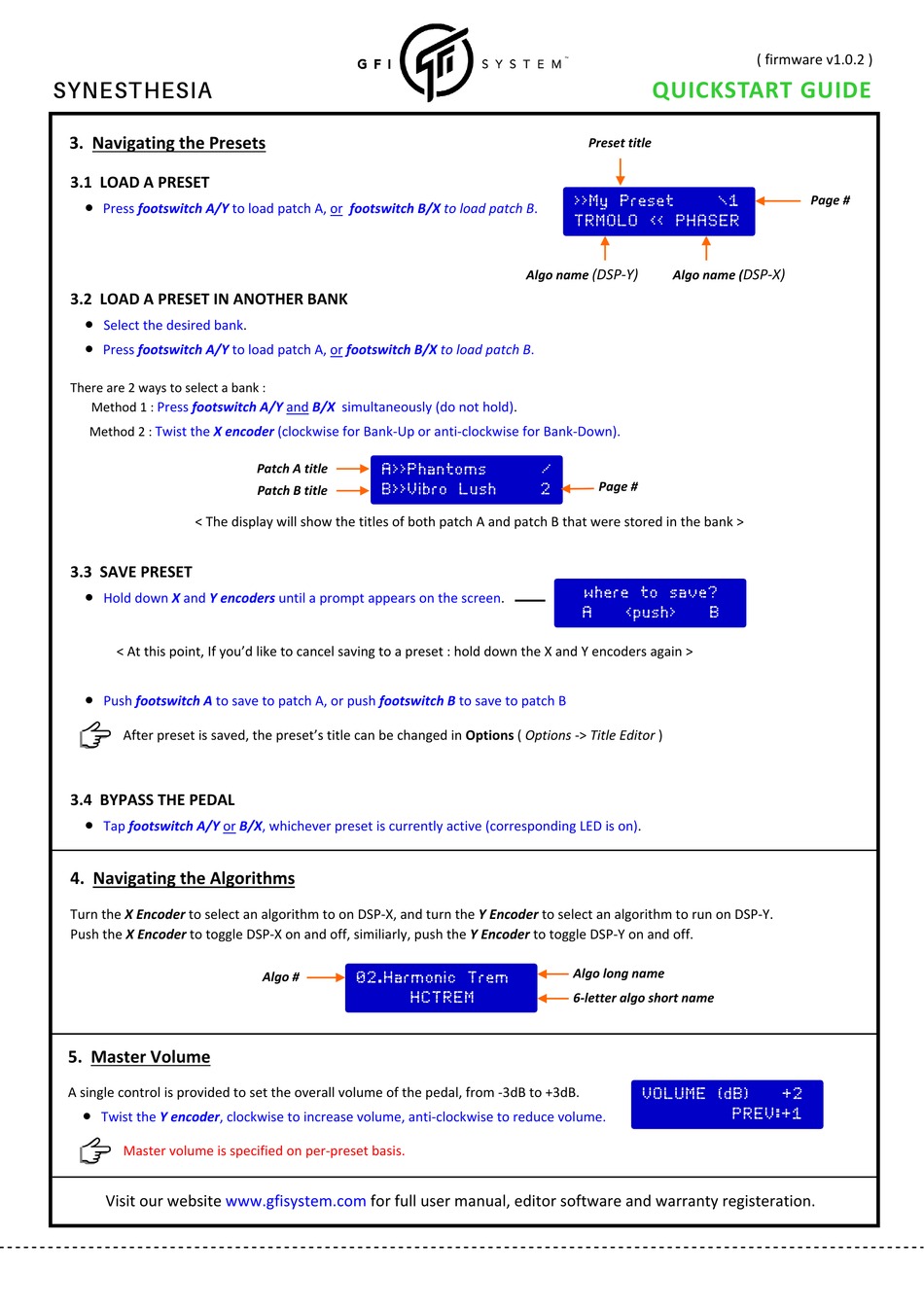

GFI System SYNESTHESIA Quick Start Manual page 2

SYNESTHESIA
3. Navigating the Presets
3.1 LOAD A PRESET

Press footswitch A/Y to load patch A, or footswitch B/X to load patch B.
3.2 LOAD A PRESET IN ANOTHER BANK

Select the desired bank.

Press footswitch A/Y to load patch A, or footswitch B/X to load patch B.
There are 2 ways to select a bank :
Method 1 : Press footswitch A/Y and B/X simultaneously (do not hold).
Method 2 : Twist the X encoder (clockwise for Bank‐Up or anti‐clockwise for Bank‐Down).
< The display will show the titles of both patch A and patch B that were stored in the bank >
3.3 SAVE PRESET

Hold down X and Y encoders until a prompt appears on the screen.
< At this point, If you'd like to cancel saving to a preset : hold down the X and Y encoders again >

Push footswitch A to save to patch A, or push footswitch B to save to patch B
After preset is saved, the preset's title can be changed in Options ( Options ‐> Title Editor )
3.4 BYPASS THE PEDAL

Tap footswitch A/Y or B/X, whichever preset is currently active (corresponding LED is on).
4. Navigating the Algorithms
Turn the X Encoder to select an algorithm to on DSP‐X, and turn the Y Encoder to select an algorithm to run on DSP‐Y.
Push the X Encoder to toggle DSP‐X on and off, similiarly, push the Y Encoder to toggle DSP‐Y on and off.
5. Master Volume
A single control is provided to set the overall volume of the pedal, from ‐3dB to +3dB.

Twist the Y encoder, clockwise to increase volume, anti‐clockwise to reduce volume.
Master volume is specified on per‐preset basis.
Visit our website www.gfisystem.com for full user manual, editor software and warranty registeration.
Patch A title
A>>Phantoms
B>>Vibro Lush
Patch B title
Algo #
02.Harmonic Trem
HCTREM
QUICKSTART GUIDE
Preset title
>>My Preset
TRMOLO << PHASER
(DSP‐Y)
Algo name Algo name (
/
Page #
2
where to save?
A <push>
Algo long name
6‐letter algo short name
VOLUME (dB)
( firmware v1.0.2 )
Page #
\1
DSP‐X)
B
+2
PREV:+1
