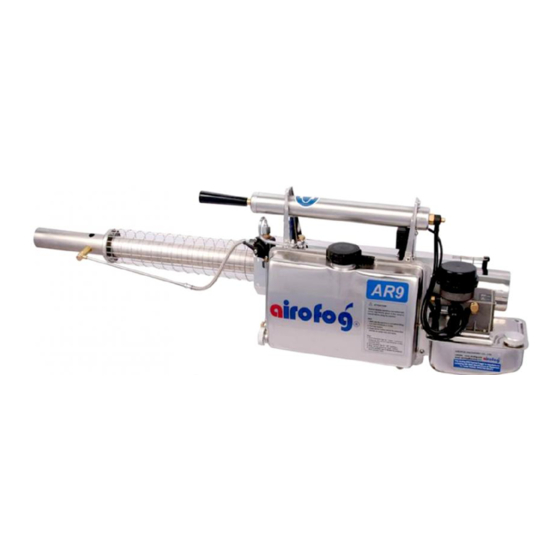

THERMAL FOGGER
Table of Content
(1).
GENERAL INFORMATION
(2).
(3).
(4).
(5).
(6).
(7).
(8).
(9).
(10).
(11).
(12).
10. Appliance Stops Unexpectedly
(13).
(14).
(15).
(16).
14. Touble Shooting
(17).
(18).
(19).
(20).
(21).
(22).
Thermal Fogger AR9/AR35 Explosion Drawing
(23).
"EC" Explosion Drawing
(24).
"EC" Spare Part List
V. 232126
GENERAL INFORMATION
Thank you for purchasing AIROFOG quality product. We wish you all the
success on the application and believe you will be fully satisfied with its
performance.
1
2
These instructions expatiate all the information necessary for the use of the
3
application by means of explosion drawings, receipt, start-up, operation,
maintenance, cleaning, trouble-shooting and etc. as well as all the safety
4
precautions to be taken throughout the lifetime of the appliance.
5
5
All Airofog pulse-jet thermal foggers are in conformity with the EC Council
6 - 7
Directive 2004/108/EC Electromagnetic Compatibility, the model AR9E &
8 - 10
AR35E are manufactured in accordance with the World Health Organization
11
"EQUIPMENT FOR VECTOR CONTROL SPECIFICTION GUIDELINES"
12
WHO/CDS/NTD/WHOPES/GCDPP/2006.5.
13
All data and information concerning in this instruction manual are based on
14
and given to the best of our experience and knowledge sofar. This manual
15
might change to meet our technical improvement without notice along with
16
the continuous technological development.
17 - 18
19 - 21
Please feel free to contact us for technical update.
22 - 23
24
Definition of the symbols used:
24
25
26 - 30
The CE mark indicates that the appliance conforms to the EC directive.
31
32
General warning, risk of danger or possibility of damaging the appliance,
!
33
pay particular attention to the words that follow this symbol.
☞
All other relevant advice.
~1~
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Airofog AR-9
Summary of Contents for Airofog AR-9
-
Page 1: Table Of Contents
THERMAL FOGGER GENERAL INFORMATION Table of Content Thank you for purchasing AIROFOG quality product. We wish you all the success on the application and believe you will be fully satisfied with its performance. (1). GENERAL INFORMATION (2). CERTIFICATE OF GUARANTEE These instructions expatiate all the information necessary for the use of the (3). -
Page 2: Certificate Of Guarantee
1. Mode of Operation CERTIFICATE OF GUARANTEE The Airofog pulse-jet thermal foggers operate on the principle of the one-sided open jet-tube (resonator) with a valve at the inlet side (carburetor) and an open AIROFOG MACHINERY CO., LTD. (called AIROFOG) guarantees all outlet (fog outlet). -
Page 3: Technical Specifications
3. Standard Accessories: 2. Technical Specifications: AR35 Technical specifications are also applicable for AR9E & AR35E. - Set of solution dosage nozzle AR35 √ √ Combustion chamber output, approx. 11 KW / 15 PS 18.7 KW / 25.4 PS - Solution suction tube - Fuel funnel with strainer √... -
Page 4: Safety Instructions
Safety Instructions: ● Follow the chemical supplier’s instructions for the safety and mixing of chemical. ● Please read carefully and understand this instruction manual before working on or operating the appliance to avoid potential problems. ● Never apply a pesticides, desinfectant or odor counteractant at application rates higher than what is the manufacturer’s specified. -
Page 5: To Prepare The Appliance Ready For Use
6. To Prepare the Appliance Ready for Use: The appliance comes packed in a cardboard box. Check that it is in undamaged condition Check ignition coil by pressing after removing it from the box. starter button (78). A buzzing sound is easily audible. It is only for packing purposes that the fog tube is not fitted. -
Page 6: Select Fog Solution Output And Fog Tube
Fill solution tank (1). Always use 7. Select Fog Solution Output and Fog Tube: solution funnel (143) with filter. (Fig. 8) Solution throughput of the available dosage nozzle (measured with water). Only fill the required solution amount Solution nozzle size Ø throughput L/H, approx. -
Page 7: Fogging Mixture
8. Fogging Mixture: 9. Starting the Appliance: Principally preparations of the chemical industry and biological products, which 1) Pull stop button (52) outwards. can be mixed either with water or with oily carrying mediums, can be fogged. (Fig. 11) Carrying mediums for fogging are: •... -
Page 8: Stopping The Appliance
11. Stopping the Appliance: 10. The Appliance Stops Unexpectedly 1) Close solution tap (120) by 1/4 turn to clear Take the following urgent measures when the appliance stops unexpectedly or ventilate the solution pipe (116). due to a lack of fuel or mechanical failure: (Fig. -
Page 9: Correct Adjustment Of The Appliance
12. Correct Adjustment of the Appliance: 13. Maintenance & Store the Appliance: Due to big differences in outside conditions such as climate and sea-level, the To ensure the appliance is ready for use at all times, we recommend before storage: appliance must be re-adjusted although every appliance is checked before delivery. - Page 10 14. Trouble Shooting: e) Clean mixing pipe of resonator (101) of combustion residues with scraper (141). - Only qualified person is authorized to carry out repairs. (Fig. 24) - Use only original spare parts. - Before repair, stop the appliance and allow a cooling time. Remove the spark Fig.24 plug socket from the swirl vane.
- Page 11 If the appliance does not start and / or runs unevenly If the appliance runs but does not fog or fogs irregularly Check first: Check first: - Are all three caps of gasoline and solution tank closed and sealed well? - Is there sufficient solution in the tank? Check also the gaskets of the caps.
-
Page 12: Emergency Cut-Off Device
15. Emergency Cut-off Device 2) Start the appliance and engage the AR9E / AR35E is equipped with an emgency cut-off device (called “EC”). Every operating lever. appliance was given the final inspection at the factory of manufacturer, so adjustment Open solution tap (120), now fogging is not needed when starting the appliance. -
Page 13: Fogging With "Ec
16. Fogging with “EC”: 18. If “EC” does not function or not function correctly: Check first: - Engage the operating lever (EC13) and lock its position by piston. CLOSE - Appliance runs too weakly. - Decrease of pressure in the “EC” device - For fogging, open the solution tap (120), lever OPEN downwards. -
Page 14: Thermal Fogger Ar9/Ar35 Spare Part List
Thermal Fogger AR9 / AR35 Spare Part List Pos. Part no. Descriptions Air intake valve cpl. AR35, consisting of part 32-34, 34/1, 30 # 935-030-000 When ordering spare parts, please always mention the pos., part number, 60, 63, 63/1 descriptions, number of parts needed. Air intake valve cpl. - Page 15 Pos. Part no. Descriptions Pos. Part no. Descriptions 935-112-000 Tapping screw, ST 3.9 x 9.5 935-077-000 Cap nut, M4 113 # 935-113-000 Protective guard AR35 935-078-000 Starter button 113 # 909-113-000 Protective guard AR9 935-079-000 lgnition coil 935-114-000 Fog solution socket 79/1 935-079-010 Sparg plug cable 250mm...
- Page 16 Label AR35 156 # 935-156-010 Label AR35E 156 # 909-156-000 Label AR9 156 # 909-156-010 Label AR9E 935-157-000 Label (airofog) 935-158-000 Label (Solution Tap) 935-159-000 Label (Solution tank capacity) 935-160-000 Label (on / off) 935-161-000 Label (Ear muffler) 935-162-000 Tool bag...
- Page 17 162/1 THERMAL FOGGER 148 (14-17) 147(8-10) AR35 & AR9 149(14) 143/1 143/1 38/1 111/1 23/1 110/1 63/1 98/1 79/1 34/1 84/1 98/1 56/1 79/2 29 18 85/1 58/1 134/2 58/2 98/2 27/1 134/1 129/1 86/1 71/1 114/1 221927...
- Page 18 Emergency Cut-off Device “EC” (only equipped with AR35E and AR9E) 221927 Pos. Part no. Descriptions Pos. Part no. Descriptions EC-1 900-001-000 Pressure cell, cpl. EC-21 935-036-000 Fill. head screw EC-2 900-002-000 Housing base EC-22 /AR9E 900-022-909 Bowden cable cpl. AR9E EC-3 900-003-000 Hose stem...
