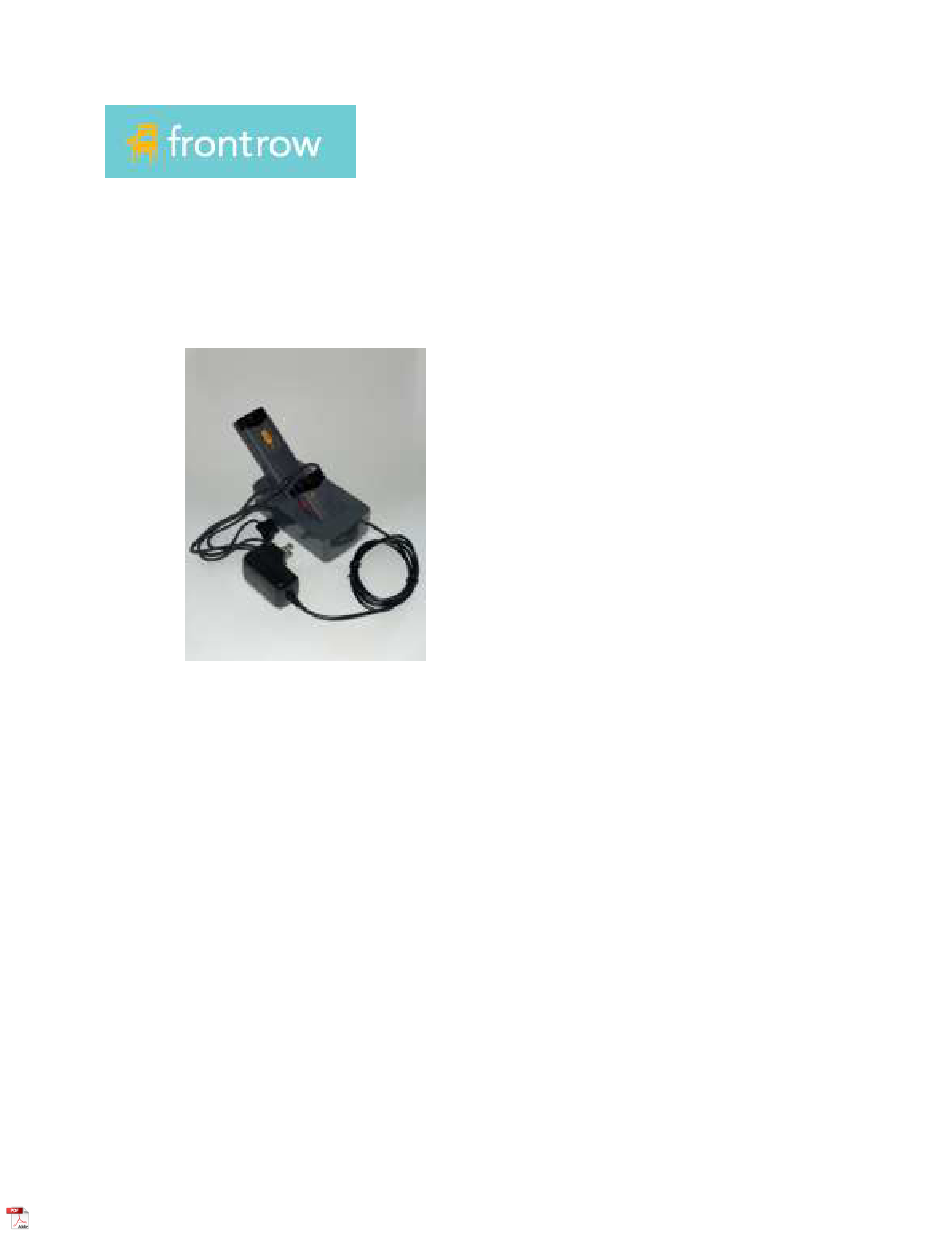

- Page 1 Teacher: Part #2000-00049 Student: Part #2000-00050 Microphone User Guide AP Receiver AP Pendant Microphone AP Pass-Around Microphone AP Microphone Charger...
-
Page 2: Table Of Contents
Contents Important Safety Instructions ........................3 Electrical Warnings ............................4 Electrical Safety Information: ........................4 AP Pendant Microphone ..........................5 AP Pass-Around Microphone ........................7 Volume ................................9 Settings..............................9 Registering your Microphone with the AP Receiver ................... 10 Beacon LED Status Indicator ........................11 AP Pendant Microphone .......................... -
Page 3: Important Safety Instructions
Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. -
Page 4: Electrical Warnings
WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. DO NOT disassemble the power supply. Return the apparatus to Frontrow for qualified service and repair if required. Incorrect reassembly may result in a risk of electric shock or fire. -
Page 5: Ap Pendant Microphone
AP Pendant Microphone Front 1 Amazing Sound Quality and Superior Comfort With FrontRow’s digital synthesis technology, the AP Pendant microphone uses a single cardioid microphone element to deliver superb pickup and audio quality. And combined with a high-isolation, low-noise, open air microphone suspension this lightweight (54g/1.9 oz) compact... - Page 6 11 Battery Indicator In Use OFF…………………..…….Battery Charged or in hibernation mode GREEN FAST FLASH……….Registration in Process RED SLOW FLASH ……...….Battery Low RED FAST FLASH ...……..….Battery Critically Low RED DOUBLE FLASH…..…..Battery Fault YELLOW DOUBLE FLASH…Registration/Connection Fault When Charging GREEN SOLID……………...Battery charging GREEN SLOW FLASH…..…Battery fully charged 12 Wireless Indicator GREEN SOLID ………………...
-
Page 7: Ap Pass-Around Microphone
AP Pass-Around Microphone Front 1 Amazing Sound Quality With FrontRow’s digital synthesis technology, the AP Pass-Around microphone uses a single cardioid microphone element to deliver superb pickup and audio quality. And combined with a high-isolation, low-noise, open air microphone suspension, the AP Pass-Around microphone minimizes handling noise. - Page 8 9 Battery Indicator In Use OFF………………….……….Battery Charged or in hibernation mode GREEN FAST FLASH…..…..Registration in Process RED SLOW FLASH …..….Battery Low RED FAST FLASH ………….Battery Critically Low RED DOUBLE FLASH……...Battery Fault YELLOW DOUBLE FLASH.. Registration/Connection Fault When Charging GREEN SOLID……………...Battery charging GREEN SLOW FLASH…..…Battery fully charged Rear Cover Removed 10 Wireless Indicator...
-
Page 9: Volume
If feedback occurs, move away from the speaker or lower either the master volume or the volume for the microphone that is causing the feedback. Control the volume of connected audio devices or individual microphones via a Frontrow wall controller (if programmed). -
Page 10: Registering Your Microphone With The Ap Receiver
Registering your Microphone with the AP Receiver Both Pendant and Pass-Around microphones must be registered with the ezRoom’s AP Receiver (the ‘receiver’) to become operational. You will need: Access to the receiver’s registration button (i.e. wall controller with programmed button, receiver’s Mic Registration button or CM-900’s webpage.) ... -
Page 11: Beacon Led Status Indicator
Beacon Status Notes No light Power off/asleep White Power on Yellow - solid Solo On Magenta Paging When used with FrontRow Conductor Magenta Intercom When used with FrontRow Conductor Orange Alert Delivered Orange Alert Acknowledged Orange Campus Attention Orange Priority Alert, mode 1... -
Page 12: Ap Pendant Microphone
AP Pendant Microphone Using 1. Wake or remove the microphone from the charger, wait 10 seconds for the tone. 2. Place the lanyard around your neck, position the microphone 5 inches from 5in/14cm your mouth by holding the adjuster and pulling the lanyard ends. -
Page 13: Battery
Battery Installing the battery 1. Unscrew the battery door on the back of the microphone using the supplied Phillips screwdriver. 2. Fit silicone cushions on each end of the battery. 3. Insert the battery’s connector into the receptacle. 4. Insert the battery into the case. 5. -
Page 14: Charging
IMPORTANT! To ensure top performance and avoid equipment damage, batteries should be charged at room temperature. IMPORTANT! To ensure top performance, FrontRow recommends replacing rechargeable batteries every 3 years. IMPORTANT! Store the battery properly if it will be unused for a period of more than 2 weeks. -
Page 15: Ap Pass-Around Microphone
AP Pass-Around Microphone Using Battery indicator 1. Wake or remove the microphone from the charger, wait 10 seconds for the tone. Photo diodes 2. Press the mute button, be sure to press on the lower section of the button. Note the mute button is Mute button lit. -
Page 16: Battery
Battery Installing the battery 1. Unscrew the battery door on the back of the microphone using the supplied Phillips screwdriver. 2. Fit silicone cushions on each end of the battery. 3. Insert the battery’s connector into the receptacle. 4. Insert the battery into the case. 5. -
Page 17: Charging
IMPORTANT! To ensure top performance and avoid equipment damage, batteries should be charged at room temperature. IMPORTANT! To ensure top performance, FrontRow recommends replacing rechargeable batteries every 3 years. IMPORTANT! Store the battery properly if it will be unused for a period of more than 2 weeks. -
Page 18: Using Multiple Microphones
Using Multiple Microphones Your ezRoom system is designed to support up to 7 registered microphones and receive up to 4 microphone signals at once. A combination of Pass-Around and Pendant Microphones is possible. For example, use two Pendant Microphones (one for a teacher and one for a teacher’s aide) and two Pass- Around Microphones for students, or one Pendant Microphone and three Pass-Around Microphones for students. -
Page 19: Regulatory
______ ⓒ 2021 FrontRow Calypso LLC Phonic Ear, FrontRow, Calypso and the names of Phonic Ear, Calypso, and FrontRow products are trademarks or registered trademarks of FrontRow Calypso LLC in the U.S. and other countries. Bluetooth is a registered trademark of Bluetooth SIG, Inc. - Page 20 FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
- Page 21 IC Warning This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil est conforme aux CNR exemptes de licence d'Industrie Canada.
