INSTRUCTIONS TO PROGRAM THE MTD8 DIGITAL INDUSTRIAL TIMER

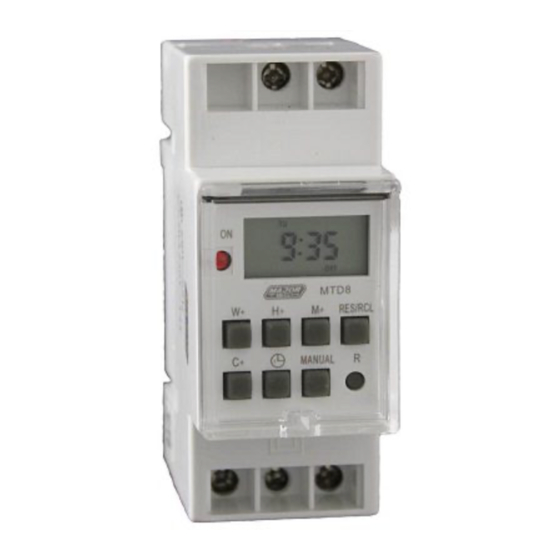

Programming the MTD8 Digital Industrial Programable Timer
The first step is to set your Clock, the timer will not work correctly if your Clock is not set to the present
time.
SETTING THE CLOCK
•
HOLD DOWN THE C+ BUTTON (CLOCK)
•
WHILE HOLDING DOWN THE C+ BUTTON - PRESS THE W+ (WEEK) BUTTON UNTIL YOU HAVE
THE ACTUAL DAY SHOWING (MON, TUE, WED, ETC)
•
STILL HOLDING DOWN THE C+ BUTTON - PRESS H+ (HOUR) BUTTON UNTIL YOU SEE THE
ACTUAL HOUR THAT IS YOUR TIME.
•
STILL HOLDING DOWN THE C+ BUTTON - PRESS M+ (MINUTE) UNTIL YOU GET YOUR ACTUAL
MINUTES.
•
RELEASE C+ BUTTON (CLOCK)
•
YOUR CLOCK/TIME IS SET
SETTING YOUR TIMER
•
PRESS THE TIMER Ꚛ BUTTON ONCE AND RELEASE (DO NOT HOLD DOWN)
•
ON THE SCREEN YOU SHOULD SEE 1 ON, (THIS IS TO SET THE FIRST TIME YOU WOULD LIKE THE
TIMER TO COME ON).
•
THEN PRESS THE W+ (WEEK) UNTIL YOU SEE THE DAY YOU WOULD LIKE YOUR TIMER TO COME
ON. YOU HAVE THE FOLLOWING COMBINATIONS:
Mo, Tu, We, Th, Fr, Sa, Su – individually OR
Mo,Tu,We,Th,Fr,Sa,Su
Mo,Tu,We,Th,Fr,
Sa,Su
Mo,Tu,We,Th,Fr,Sa
Mo,Tu,We
Th,Fr,Sa
•
Select the day or days you would like your timer to come on (as above)
•
Then Press the H+ (Hour) until you have the hour you would like your timer to switch on.
•
Then Press the M+ (Minute) until you have the minutes you would like your timer to come on.
•
That is your timer set to switch your timer ON.
•
To set your timer to go off press TIMER Ꚛ BUTTON once and you will see on the screen, 1 OFF
•
Then select the day or days with the W+ (week) button that you want your timer to switch off.
•
Then select the H+ (hour) button to the hour you would like your timer to switch off.
