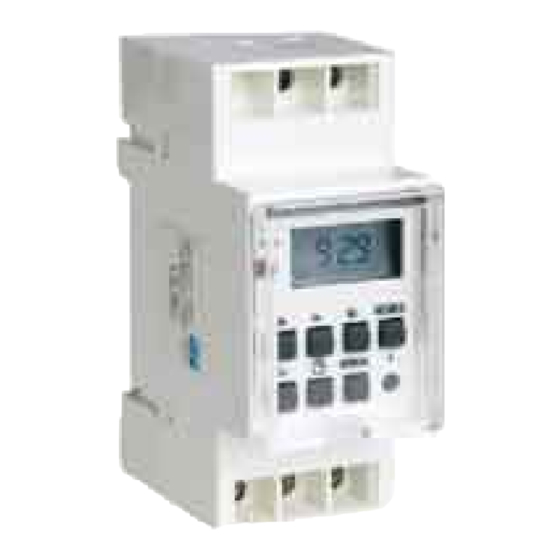

Major tech MTD8 Instruction Manual

http://waterheatertimer.org/Din-rail-timers-and-manuals.html
MTD8 INSTRUCTION MANUAL
Don't connect to an appliance where the load exceeds 16 or 20 amps depending on the Model you have bought.
The Max load will be indicated on your timer and the Packaging the unit is supplied with.
Always ensure the wiring of any appliance is fully inserted into the timer outlet. If cleaning of the timer is
required, remove from the mains power and wipe timer with a dry cloth.
Do not immerse timer in water or any other liquid.
1. The timer has a total of 8 ON/OFF programs.
2. MANUAL ON/AUTO/MANUAL OFF can make settings as required very easily.
3. 12/24 hour mode is switchable.
4. Summertime function is very useful for areas with summertime system.
5. 16 combinations of day or blocks of days are available for this timer as follows:
•
Monday
•
Tuesday
•
Wednesday
•
Thursday
•
Friday
•
Saturday
•
Sunday
•
Mo,Tu,We,Th,Fr,Sa,Su
•
Mo,Tu,We,Th,Fr,
•
Sa,Su
•
Mo,Tu,We,Th,Fr,Sa
•
Mo,We,Fr
•
Tu,Th,Sa
•
Mo,Tu,We
•
Th,Fr,Sa
•
Mo,We,Fr,Su
1. Connect the timer to your regular 220/240 volt household power supply and turn the power on.
2. Leave approximately 12 hours to charge the memory back up batteries.
3. After charging clear all current information buy pressing the R (master clear) button with a sharp object
such as a pen or pencil. The timer is now ready to be set up for use.
Press the c+ (clock) button and hold, now press the W+ (week) button until the actual day is displayed, then
press H+ (hour) or the M+ (minute) button until the current hour or minute is displayed.

BRIEF INTRODUCTION

INITIAL OPERATION

SETTING CURRENT TIME

Release all buttons when you are done. The week and time will be set.
