DIY Alaska Futon FDD 12 Instruction Sheet

D.I.Y. Instruction Sheet

Before You Start

Important: Retain these instructions for future reference.
When you are ready to start, make sure that you have
the right tools, plenty of space and a clean, dry area for
Assembly.
Unwrap all packaging materials and place the
components on top of the carton box or on a clean floor
to prevent it from scratching.

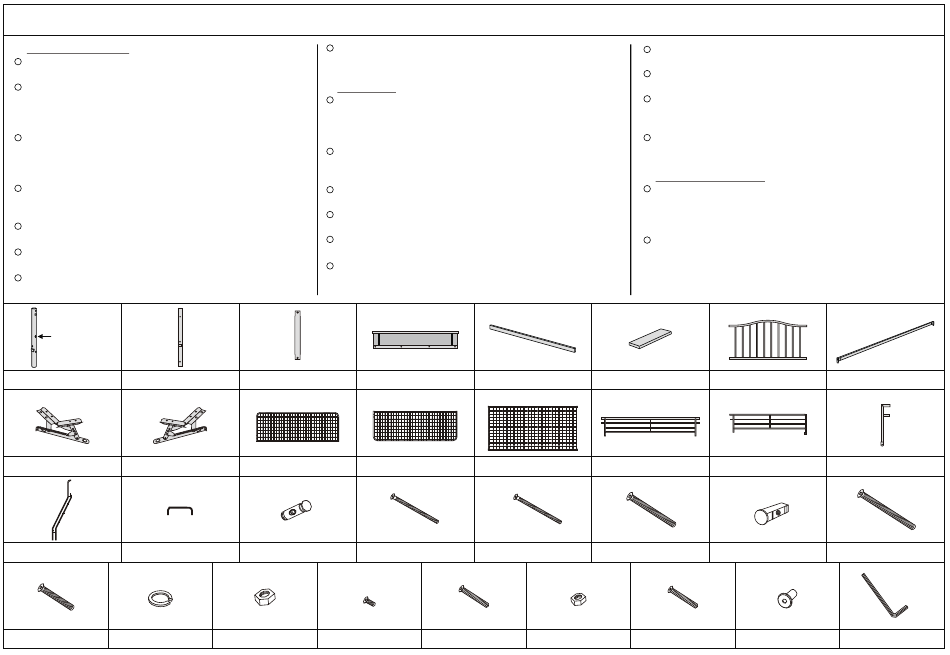

Check the pack and make sure you have all the parts
listed.
Tools not included.
Do not use power tools to construct this product.
Due to the size of this product we recommend that it is
assembled in the room intended for use.
4pcs.
With 20mm Hole
(One Side)
Bottom Post (L/R) Upper Post
1pc.
Futon Gear (Right) Futon Gear (Left)
2pcs.
Ladder (Left & Right) Futon Support
G 12pcs. H 12pcs.
M8 Spring Washer
M8 x 40mm JCBC Screw
22112013(R-1)
Ensure that this product is fully assembled as illustrated
before use.

Warnings

This product is intended for a maximum weight of
85 kg for Top Base & 130 kg for Futon Base.
Do not exceed this weight.
It is recommended that 2 people are required to
assemble this product.
Do not stand on the product.
This product should only be used on firm, level ground.
Keep small parts out of reach of children.
Check all screws or both are tightened and inspect
regularly.
4pcs. 4pcs.
Headboard Connector
1pc. 1pc.
Futon Seat (With Handle)
1pc. A 4pcs. B
M6 Steel Pin M6 x 80mm JCBC Screw
I 12pcs. J 16pcs.
M8 Nut M6 x 16mm JCBC Screw
2pcs. 2pcs.
Metal Plate Armrest
1pc. 1pc.
Futon Rest Top Base
19pcs. C 4pcs.
M6 x 70mm JCBC Screw
K 2pcs. L
M6 x 40mm JCBC Screw M6 Nut
Model : Alaska Futon Bed
Do not tighten screws until fully assembled.
Do not over tighten screws or bolts.
Do not use this product if parts are missing, damage
or worn.
Do not allow children to jump on the bed as this could
cause damage to the frame.

Care Instructions

To clean wipe with a sponge and warm soapy water.
Do not use solvent based cleaners or
detergents as they can bleach or damage the product.
Never use scourers, abrasives or chemical cleaners.
4pcs.
Ladder Step
Headboard Frame
1pc.
Back Rail Front Rail (Left)
D 4pcs. E
Metal Square Insert Nut
M8 x 75mm JCBC Screw
2pcs. M 6pcs. N
M6 x 45mm JCBC Screw M6 x 15mm JCN Nut
Hyder
2pcs. 2pcs.
Futon Side Support
1pc. 1pc.
Front Rail (Right)
8pcs. F 8pcs.
M8 x 95mm JCBC Screw
4pcs. M4 - 2pcs.
M5 - 1pc.
M4 / M5 Allen Key
1 of 4
