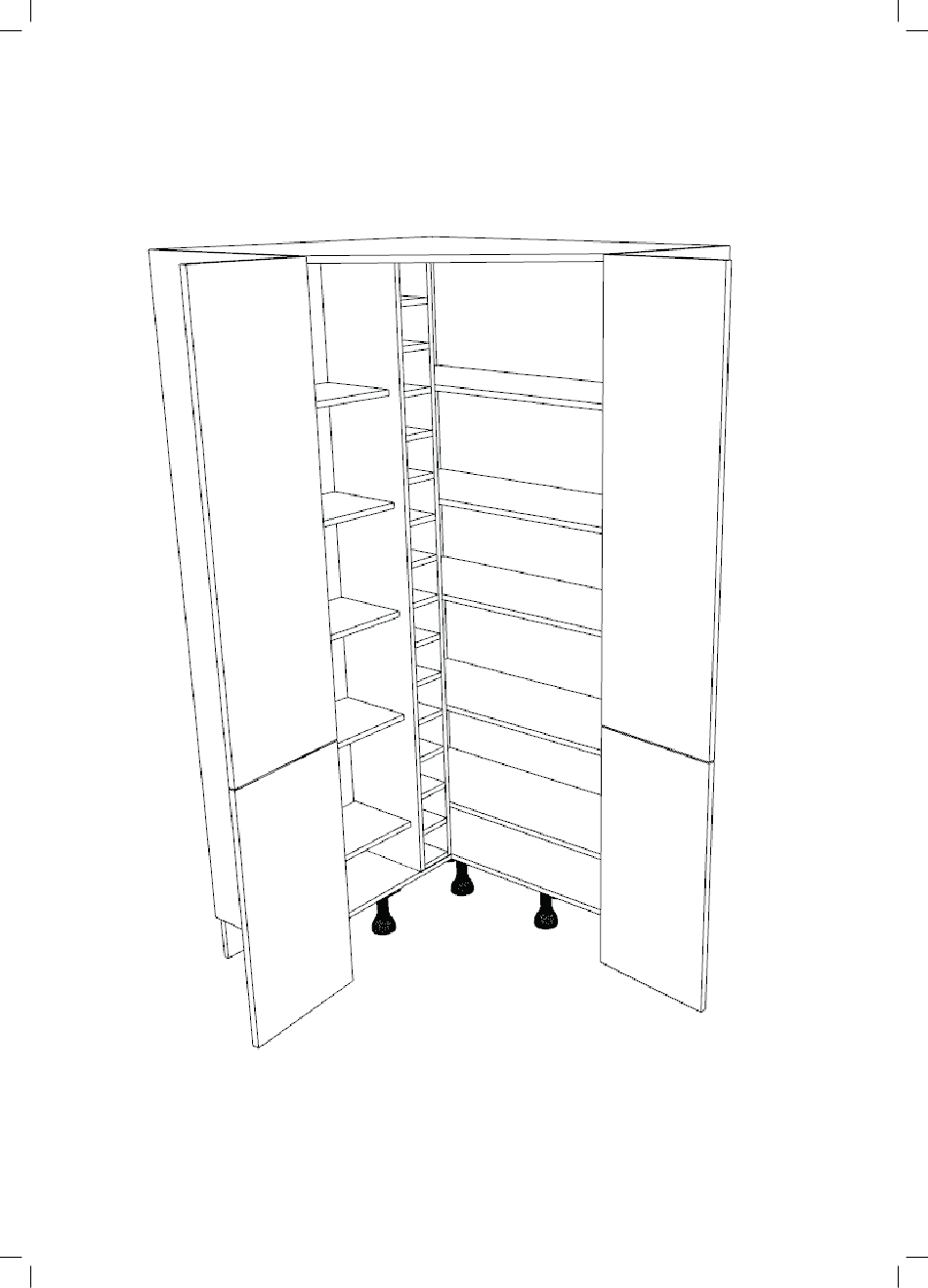

WALK-IN LARDER
CONSTRUCTION GUIDE
Linked Product Codes:
- WIL2
- WIL2U
- WIL2-1
Version Number: 1.02

Advertisement

loading
Need help?

Need help?

Do you have a question about the WIL2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DIY WIL2

  • Page 1 WALK-IN LARDER CONSTRUCTION GUIDE Linked Product Codes: - WIL2 - WIL2U - WIL2-1 Version Number: 1.02...
  • Page 2 REQUIREMENTS x2 - 3 PLEASE NOTE: Use a rubber mallet to avoid damage to the unit. FITTINGS x8 or 10 x8 or 10...
  • Page 3 COMPONENTS L Shaped Base Panel Angled Top Panel Left Hand Back Panel Right Hand Back Panel (2120 x 1094mm) (2120 x 1076mm) 10x Shelves Left Hand Gable Right Hand Gable (1970mm x 560mm) (1970mm x 560mm) Pre-Assembled Wine Rack...
  • Page 4 Parts used: A, B Parts used: PLEASE NOTE: • Make sure that each of the legs are level before proceeding to step 3.
  • Page 5 Parts used: C, D Parts used: PLEASE NOTE: • For ease of assembly stand part D should be fitted first • It is recommended that 3 people assist at this stage.
  • Page 6 AC-D Parts used: PLEASE NOTE: • For ease of assembly stand part D against a wall. • It is recommended that 3 people assist at this stage. ACD-H Parts used:...
  • Page 7 Parts used: ACDH-B ACDH PLEASE NOTE: 2-3 people required • A suitable step ladder or similar may be • required When pulling or pushing a component-back, • don’t apply too much pressure.
  • Page 8 ABCDH-E-F Parts used: ABCDH...
  • Page 9 ABCDEFH Parts used: ABCDEFH Example:...
  • Page 10 Parts used: ABCDEFH-G ABCDEFH Soft Close Cover PLEASE NOTE: • This is an example of one of the door configurations. The configuration used is: WIL2-1 See Codes & Door Configs for more • information...
  • Page 11 WIL2U WIL2 2x Door 1: 2x Door Top (1245x597) (715x597) 2x Door 2: 2x Door Bottom (715x597) (1245x597) Contact Us For any issues Go to www.diy-kitchens.com/myorder/ and submit a suport ticket. We will be in touch as soon as possible.
