Conair TrueBlend SB-2 Operation & Setup

TrueBlend Component Setup
The material component values for a batch are entered as percentages. The "TrueBlend Home" and
"TrueBlend Totals" screens show the various material hoppers with the factory material assignment.
The material types in the hoppers can be changed. The outer number in the hoppers shows the set value
for the batch in % (TrueBlend Status).
Press the Recipe button make the following settings for all components:

Input Material Percentages

1 Press the Recipe button to input the percentage for each mate-
rial component.
2 Input the value with the numeric keypad, on the "new" line.
3 Confirm the value with .
>>>
NOTE: If using multiple naturals, they must equal 100%.

Input Material Type

1 Press the Recipe button to move to the Recipe screen.
2 Press the Options button to move to the Options screen.
3 Input the type of material in each supply hopper. If no materi-
al will be in this hopper, material type can be ignored.
4 Note that factory settings are as follows: position 1=Reg.;
position 2=Nat.; position 3=AddN; position 4=AddN; position 5 (if
applicable)=Off; position 6 (if applicable)=Off.
WARNING:
This card provides only basic troubleshooting and maintenance information. Users must be familiar with all safety
information and procedures described in the TrueBlend User Guide.
Operation & Setup
Quick Card
QCB005-0113

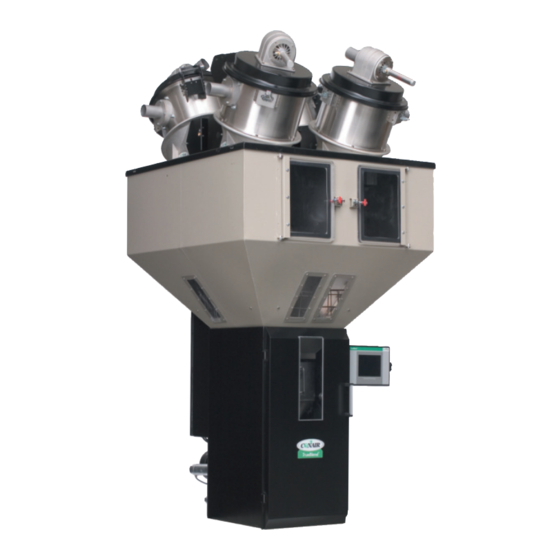

TrueBlend
Gravimetric Blender
SB-2 Control

Operation

To Start Blending

1
Turn on main power to the blender. Wait for the
Home Screen to be displayed.
2
Press the Automatic button to start the
blending process automatically. The
blender will use the last set of values or the
factory settings. The button will now display
a green bar.

To Stop Blending

1
Press Stop to stop metering the mixing
process. The button changes to display a
flashing red bar. The current batch will run until
finished. When finished, the button will display
a solid red bar.
NOTE: The bar will remain flashing red until the batch of material has
been completed. The batch will not dump until there is sufficient room
in the weigh bin and the level sensor is exposed. A yellow bar on the
screen next to the mixer indicates that the mixing chamber is full and
that the weigh bin has no place to put the current batch until the
material level in the mix chamber is lowered.
