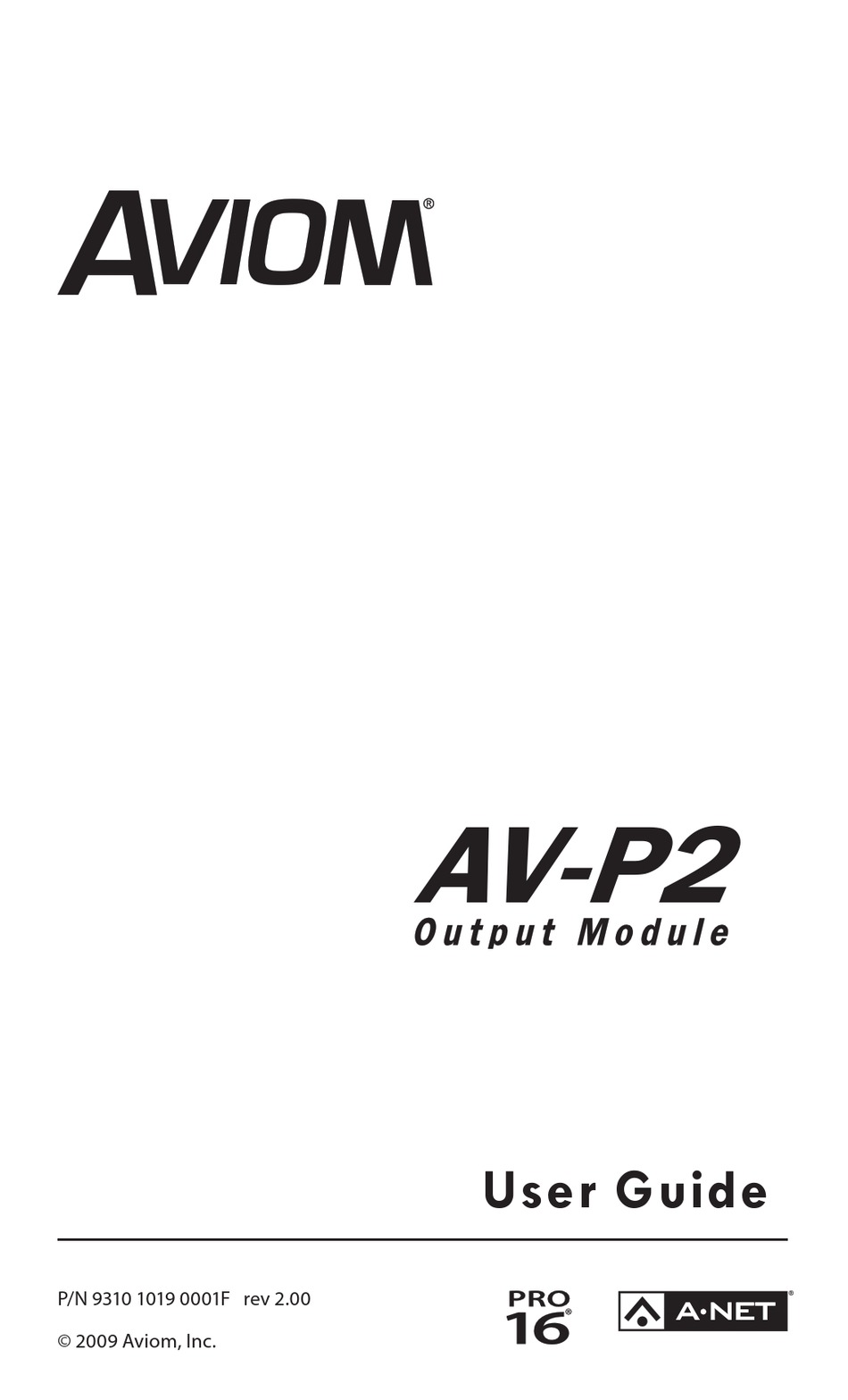

- Page 1 ARTWORK, LABEL ID, AV-P2 P/N 9225 1071 0001, REV. A SCALE 1:1 26 JAN 07 P/N 9310 1019 0001F rev 2.00 PRO16 © 2009 Aviom, Inc. AV-P2 User Guide...
- Page 2 Aviom, Inc. Trademarks Aviom, A‑Net, the A‑Net icon, Pro16, Pro64, and Virtual Data Cable are trademarks of Aviom, Inc. All other trademarks are the property of their respective owners.
-
Page 3: Read This First
No on/off power switches are included in the system. The external power supply should be used to control power to an Aviom device. This power supply should remain readily operable. The solid line over dashed line symbol ( input voltage must be a DC voltage. - Page 4 • Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to the product not expressly approved by Aviom, Inc. could void the user’s FCC authority to operate the equipment. WARNING!
- Page 5 If a defect is discovered, first write or call Aviom, Inc. to obtain a Return Authorization number. No service will be performed on any product returned without prior authorization.
-
Page 6: Warranty Information
To fulfill warranty requirements, your Aviom product should be serviced only at an authorized Aviom service center. The Aviom serial number label must appear on the outside of the unit, or the Aviom warranty is void. This manual and its contents are copyrighted by Aviom, Inc. All rights are reserved by Aviom, Inc. -
Page 7: Table Of Contents
Power LED � � � � � � � � � � � � � � � � � � � � � � � � �15 AV-P2 Rear Panel � � � � � � � � � � � � � � � � � � � � � �16 DC Power Connector �... - Page 8 Dimensions� � � � � � � � � � � � � � � � � � � � � � � � � 26 Block Diagram � � � � � � � � � � � � � � � � � � � � � � � 27 Av-P2 O utPut...
-
Page 9: Welcome
Welcome Thank you for purchasing the AV-P2 Output Module, a member of Aviom’s Pro16® Series of digital products. All Pro16 products are powered by A‑Net®, Aviom’s proprietary data transmission protocol designed especially for the unique demands of live streaming audio. This User Guide is designed to familiarize you with your new product and to have your system up and running in no time. -
Page 10: Conventions Used In This Document
Cat-5 is used generically to indicate the use of any of the applicable cable types. A-Net Distributors The A‑16D and A‑16D Pro A‑Net Distributors are referred to generically as A-Net Distributors. Av-P2 O utPut Odule uide... -
Page 11: Front Panel Components
Front Panel Components Av-P2 O utPut Odule uide... -
Page 12: Rear Panel Components
Rear Panel Components Av-P2 O utPut Odule uide... -
Page 13: Compatibility
In addition to the Aviom devices mentioned above, the AV‑P2 Output Module can be connected to third‑party devices that support Pro16 A‑Net technology. The AV‑P2 Output Module can also be used with Aviom Pro64® systems when connected to the Pro64 ASI A‑Net System Interface. Av-P2 O... -
Page 14: Pro16 Series Systems
• Ease in spanning long distances between system components : While the Cat‑5e cables and connectors used on your Aviom products look like typical computer Ethernet network connections, do not connect computers, routers, or other home and business networking equipment to your Aviom products. -
Page 15: Compatibility With Pro64
The twisting of the wire pairs helps to shield the cable from unwanted interference from electrical fields or radio interference (sometimes referred to as “RF”). Cat‑5 cabling supports frequencies up to 100 MHz and speeds up to 1000 Mbps. Av-P2 O utPut Odule uide... -
Page 16: Cat-5 Cables
Aviom equipment. Cable Lengths Cat‑5e cables used with your Aviom products can be up to 500 feet (150 meters) in length between devices. The maximum cable length specification applies to the cable connected between the A‑Net input module and the first Pro16 output device (such as an A‑16II Personal Mixer) in your system... - Page 17 Bridge A-Net Out Total cable length calculations include cables used top connect I/O modules to System Bridges. Pre‑made cables in a variety of lengths and colors are available at most Av-P2 O utPut Odule uide AN-16/i Input Module AN-16/o Output Modules...
-
Page 18: Ac Line Conditioning
AC Line Conditioning Aviom products are digital devices and as such are sensitive to sudden spikes and drops in the AC line voltage. Changes in the line voltage from lightning, power outages, etc. can sometimes damage electronic equipment. -
Page 19: Cleaning And Maintenance Information
(See the diagram above.) Cleaning and Maintenance Information The exterior of your Aviom products should be cleaned with a dry, soft, lint‑ free cloth. For tougher dirt, you can use a cloth slightly dampened with water or with a mild detergent. -
Page 20: Mounting The Av-P2
Mounting the AV-P2 The AV‑P2 module is designed to be mounted to any flat surface. Optionally, it can be rack mounted using a standard 19‑inch rack shelf. Two AV‑P2 units can fit on a single rack shelf. The mounting flanges on each side of the device are designed to support the weight of the AV‑P2 without additional hardware. -
Page 21: Panel Descriptions
This section explains the basic layout of the front and rear panels of your new Aviom product. The diagrams on the previous pages can be used as a quick visual guide to the location of the components of the AV‑P2 mentioned in this section. -
Page 22: A-Net Channel Selector
Stereo Pair LED will light, A‑Net channel 3 is assigned to the AV‑P2 left audio output, and A‑Net channel 4 is assigned to the AV‑P2 right output. CHANNEL MUTE Av-P2 O utPut Odule CHANNEL The rotary Channel selector... -
Page 23: A-Net Active Led
It does not, however, indicate that a valid A‑Net digital stream is being received. That is the job of the A‑Net Active LED. CHANNEL MUTE The Power LED indicators will be on when the AV-P2 is powered via the Cat-5 cable or from its own DC power supply. Av-P2 O utPut... -
Page 24: Av-P2 Rear Panel
Audio outputs on the AV‑P2 are provided via locking Euroblock connectors. Each channel’s output level can be set individually using the DIP switches on the front panel. Av-P2 O utPut Odule uide AV-P2 RIGHT + – The AV-P2 rear panel... -
Page 25: A-Net Connections
Two A‑Net connections are provided on the rear panel of the AV‑P2 Output Module. There is one A‑Net In port and one A‑Net Out port. The A‑Net In port receives digital data in Aviom’s proprietary A‑Net format. The A‑Net Out port is used to pass incoming A‑Net data to additional A‑Net compatible devices in a system. -
Page 26: Connecting Audio
(called “tinning”). 18-24 VDC POWER 500mA AV-P2 left/right Euroblock audio outputs Connecting to a Balanced Device To connect the AV‑P2 Euroblock audio output to a device that can accept a balanced line‑level input: Strip the insulating jacket of the cable back about .75 inch (18 mm) to reveal the individual hot, cold, and ground wires within. -
Page 27: Connecting To An Unbalanced Device
Euroblock remains unused in this configuration. Tighten the screws on the wire sockets to secure the individual wires. Plug the completed channel on the AV‑P2. Connect the completed cable to your audio device. Av-P2 O utPut Odule uide Euroblock plug into the desired output... -
Page 28: Two-Conductor Shielded Cable
Connect the cold (‑) and ground wire to the unbalanced device’s ground connector. Connect the completed cable to your audio device. Plug the completed Euroblock connectors into the AV-P2 audio output jacks. Av-P2 O utPut Odule... -
Page 29: Setting Output Levels
Individual settings are possible for the left and right audio channels. To temporarily mute the output of the AV‑P2 while adjustments are being made, move the M switch to the left. Av-P2 O utPut Odule uide LEFT RIGHT OUTPUT LEVELS The AV-P2 front panel interface CHANNEL MUTE... -
Page 30: Dip Switch Settings Table
In the output levels table, “0” indicates the down position and “1” indicates the up position on the DIP switch. DIP Switch Setting The output level table is also printed on the top of the AV‑P2 case for quick reference. Av-P2 O utPut Odule uide LEVEL (dB) ‑1.2... -
Page 31: A-Net Connections
Any Pro16 A‑Net Distributor can be connected to the A‑Net Out port of a Pro16 device. In the diagram below, a variety of A‑Net compatible components are shown connected in parallel to an A‑16D A‑Net Distributor. Av-P2 O utPut Odule... -
Page 32: Extending A-Net Cable Runs
Cat‑5 Ethernet‑based A‑Net signal to a fiber optical signal at the source location and then back to Cat‑5 at the destination. Several companies make media converters that can be used with your Aviom equipment. Both single and multi‑mode fiber devices can be used. Refer to the Aviom website for a list of approved devices. -
Page 33: Specifications
Plug Size 2 mm, locking, center pin hot Dimensions 7.45” (189.2 mm) wide x 7” (177.8 mm) deep; 1U high Weight 3.4 lb. (1.54 kg) All Aviom products are designed and manufactured in the USA. Av-P2 O utPut Odule uide ‑12... -
Page 34: Dimensions
Dimensions Av-P2 O utPut Odule uide... -
Page 35: Block Diagram
Block Diagram Av-P2 O utPut Odule uide... - Page 36 ASI A‑Net Systems Interface 7 Audio Output Level 13 Audio Outputs 16 AV‑M8 Mic Input Module 5 AV‑P2 6 balanced signal connecting 18 Block Diagram 27 Av-P2 O utPut Odule uide cable length 8 Cat‑5 7, 8, 9 Cat‑5e 2 UTP 7 Cat‑6 2, 8...
- Page 37 10 replacing 10 Power Supply 16, 25 power supply polarity 11 Pro16 1, 6 Pro64 5, 7 Av-P2 O utPut Odule uide rack mounting 12 Rear Panel Components 4 Rear Panel description 16 replace the power supply 10...
- Page 38 Aviom Warranty Registration Please take a moment to fill in this warranty registration form. Return it to Aviom via mail or fax. All information will be kept confidential. Model Number Model Number Model Number Model Number Date Purchased Dealer Name...
- Page 39 1157 Phoenixville Pike, Suite 201 • West Chester, PA 19380 Voice: +1 610.738.9005 • Fax: +1 610.738.9950 • www.Aviom.com...
