Summary of Contents for Cromtech TFT150DE

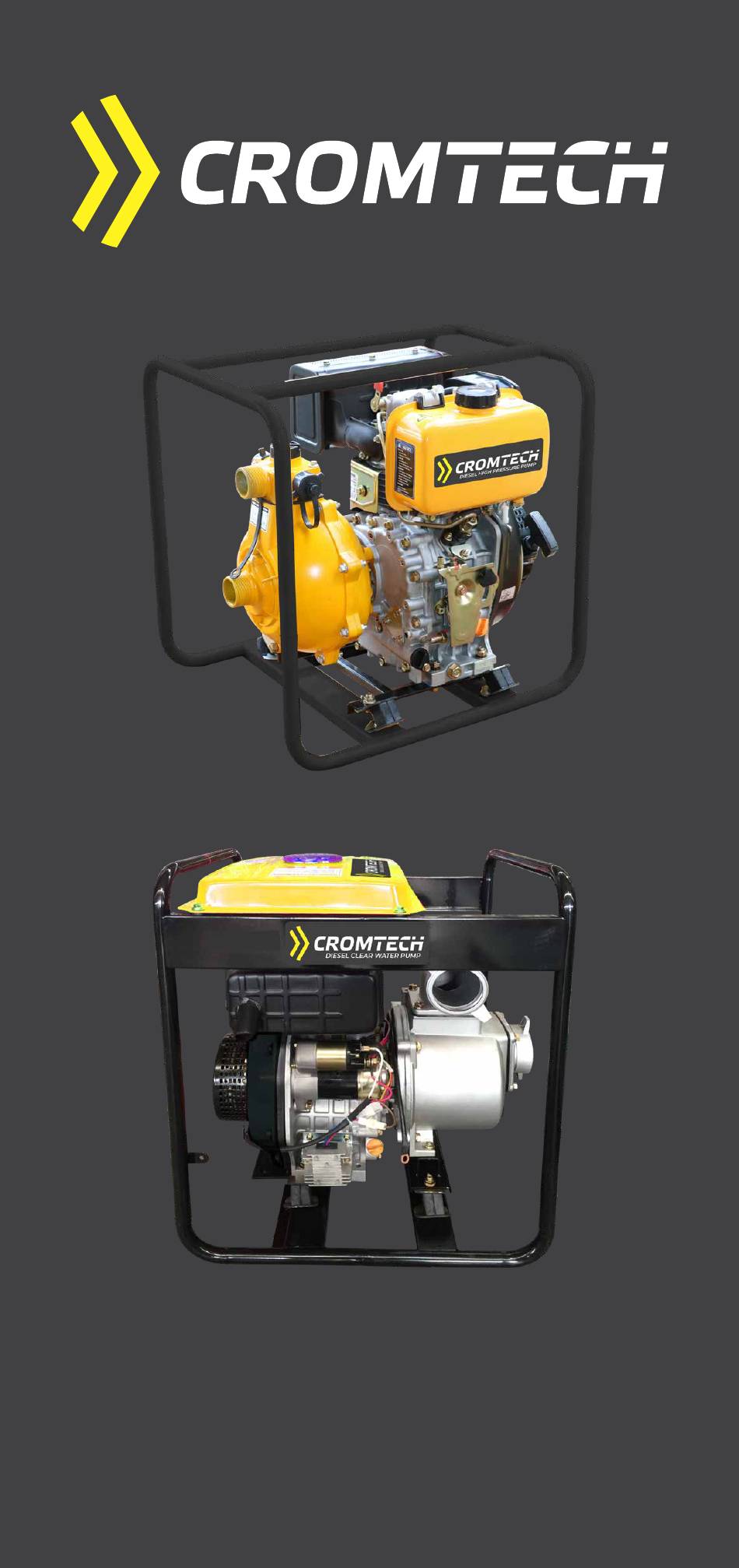

- Page 1 DIESEL WATER PUMPS CROMTECH DIESEL PUMPS OPERATION MANUAL...
- Page 2 Thank you for purchasing a Cromtech Diesel Pump. This manual provides understanding of the operation and maintenance of your pump. Please read this manual carefully before operating. For any questions regarding operation or maintenance, please consult your local service agent. Find your local service agent at www.crommelins.com.au.
-
Page 3: Table Of Contents
INDEX: Warranty ..............4 Safety Warnings ............5 Diesel Twin Impeller Pump Features (Model TFT150DE) 7 Diesel Clear Water Pump Features (Model CTD301E) ... 8 Pump Specifications ............ 9 Features ..............9 Operating Checklist ............10 Operating area ............10 Operating condition ........... -
Page 4: Warranty
WARRANTY CROMTECH™and CROMMELINS™ are a registered trademark of The Crommelin Group. Crommelins warrants their goods against defects in materials and workmanship under normal use and service. The Crommelin Group warranty does not cover fair wear commensurate with the age of the product, any damage caused by accident, abuse, misuse, neglect or failure to observe proper operating instructions or proper machinery maintenance as described in the instruction manual. -
Page 5: Safety Warnings
SAFETY WARNINGS WARNING: DO NOT Operate this pump until you have read ALL safety, operation, and maintenance instructions listed in this manual. • Failure to follow the instructions may result in property damage, INJURY or DEATH. • The warnings and precautions discussed in this manual cannot cover all possible conditions and situations that may occur. - Page 6 • Empty the fuel tank before storing or transporting the pump. • Keep fire extinguisher handy and be prepared if a fire starts. DANGER: TOXIC FUMES - The exhaust of the engine contains carbon monoxide, an odorless, colorless, poison gas. Using engine indoors CAN KILL YOU! •...
-
Page 7: Diesel Twin Impeller Pump Features (Model Tft150De)
DIESEL TWIN IMPELLER FEATURES Model TFT150DE ❶ Fuel cap ❼ 1.5inch Outlet ⓮ Recoil start ❷ Fuel tank ❽ 1 inch Outlet/s ⓯ Recoil handle ❸ Decompression Lever ❾ 1.5inch Inlet ⓰ Fuel connection nut ❹ Muffler guard ❿ Engine mount ⓱... -
Page 8: Diesel Clear Water Pump Features Model Ctd301E
DIESEL CLEAR WATER PUMP FEATURES Model CTD301E ❶ Fuel cap ❽ Engine mount ❷ Fuel gauge ❾ Starter motor (Electric start model) ❸ Fuel tank ❿ Oil dipstick ❹ Frame ⓫ Pump casing ⓯ Electric start key ❺ Air cleaner ⓬... -
Page 9: Pump Specifications
Inlet 1.5 inch 3 inch inlet Weight (kg) 45kg 49kg Dimensions (LxWxH) 560x460x565mm 560x475x690mm FEATURES • Steel frame with rubber engine mount • Mechanical seal (ceramic carbon) • Diesel powered • Electric start • 1 Year Cromtech warranty Pg. 9... -
Page 10: Operating Checklist
OPERATING CHECKLIST 1. OPERATING AREA - This pump is for outdoor use. • Only use OUTSIDE and place the pump in a well-ventilated area. • Only operate the pump on a flat, level surface and in a clean, dry operating environment. •... -
Page 11: Check Engine Oil
3. CHECK ENGINE OIL WARNING: This engine is not filled with oil. Any attempt to crank or start the engine before it has been properly filled (with the recommended type and amount of oil) may result in engine damage and void your warranty. -
Page 12: Check Fuel Levels
4. CHECK FUEL LEVELS CAUTION: Only diesel fuel can be used. The fuel must be filtered. Fuel should be free of water or dust as this can result in problems with the fuel injection pump and nozzle. FILLING THE FUEL TANK - With the engine stopped, check the fuel level gauge. -
Page 13: Low Oil Warning System/Stop Device
LOW OIL WARNING SYSTEM/STOP DEVICE NOTE: The device works automatically to stop the engine when the oil pressure falls below the regulatory level to prevent engine seizure • The oil temperature will rise too high if the engine is operated with insufficient oil. •... -
Page 14: Starting The Pump
PRE-START INSTRUCTIONS NOTE: When startng the pump for the frst tme, restarting the engine after it stopped due to fuel shortage or starting the engine after fuel filter cleaning. Follow these steps. • Always check that there is no air trapped in the fuel line. -
Page 15: Recoil Start
4. Push down the decompression lever (It will return automatically when the recoil starter is pulled) 5. Turn the starting key clockwise to ‘START’ position As soon as it starts, release your hand and let the key automatically return to its initial position. If the pump doesn’t start after 10 seconds, please wait at least 15 seconds before attempting again. -
Page 16: During Operation
• If insufficient oil, the oil temperature will rise too high and damage may occur. • Too much oil is dangerous as it may cause sudden excessive engine rpm. • Be sure to check oil is at optimum specified levels. DURING OPERATION WARNING: Check for unusual sounds or vibrations during operation. -
Page 17: Pump Maintenance
PUMP MAINTENANCE WARNING: DO NOT modify the pump in any way. CHECK/CHANGE AIR CLEANER ELEMENT WARNING: Never run the pump without the air cleaner element as damage to the engine may occur. • The air cleaner must be changed when the output of engine decreases or if the exhaust colour looks darker than normal. -
Page 18: Fuel Filter
CHECK/CHANGE FUEL FILTER WARNING: Change filter regularly to insure maximum engine output. • CLEAN FILTER - Every 6 months or 300 hours • REPLACE FILTER - Every year or 1000 hours CHECK BATTERY FLUID / CHARGING BATTERY NOTE: Before starting, check for physical damage to battery and also electrolyte levels. -
Page 19: Starting Position
3. STARTING POSITION MANUAL STARTING - Press the decompression lever (non-compression position), pull the recoil handle 2-3 times. Do not start the diesel engine. ELECTRIC STARTING - When the decompression lever is in the non-compression position, turn the switch to the ‘ON’ position for 2-3 seconds. Do not start the engine. - Page 20 DIESEL WATER PUMPS CROMTECH DIESEL PUMPS OPERATION MANUAL...
