Summary of Contents for Seiwa SI-TEX MDS-12

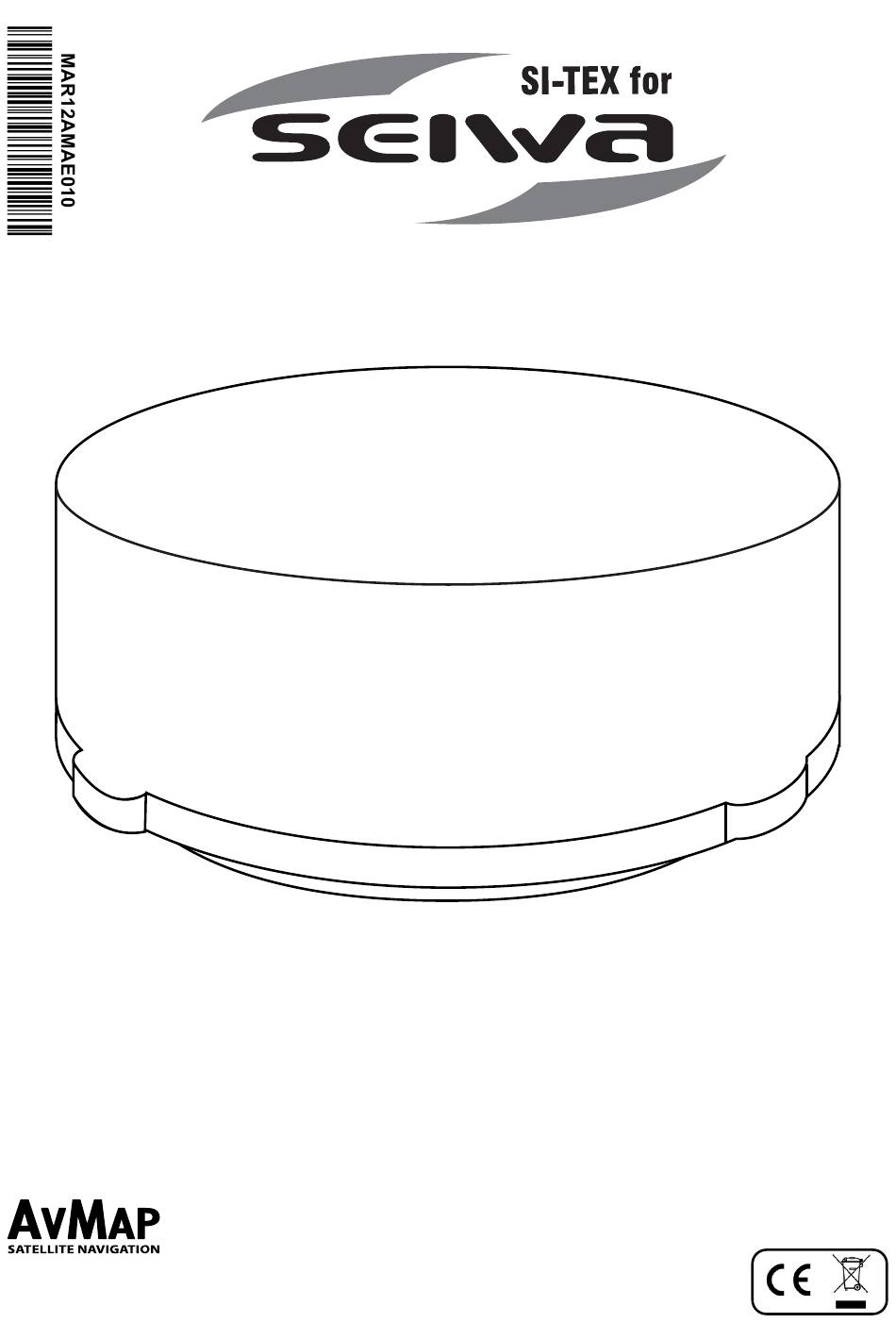

- Page 1 Radar Antenna MDS-12 WARNING AND INSTALLATION MANUAL Imported by: AvMap Srl Viale Zaccagna 6, 54033 Carrara (MS), Italy www.seiwa-marine.com...
- Page 2 AvMap Srl reserves the right to repair or replace the device at its sole discretion. For more warranty information please see the web site: www.seiwa-marine.com For technical advice or assistance in Europe contact:...
- Page 3 2.1 Features The main features of the MDS-12 marine radar antenna: ● Built-in ethernet RJ45 connection cable to connect via a WiFi router to Seiwa Explorer 23 WiFi, and to SWx charplotter series. (WiFi Router not included in the box).
- Page 4 ● 0.08 μ S, 2100 Hz (0.125, 0.25, 0.5, 0.75, 1.5nm) ● 0.3 μ S, 1200 Hz (1.5, 2, 3nm) ● 0.8 μ S, 600 Hz (3, 4, 6, 8, 12, 16, 24, 36nm) ● Warm up time: 1:30 minutes ●...
- Page 5 for their influence on the radar at the first opportunity after fitting. (The method of determining blind and shadow sectors appears later in this chapter.) • If you have a radio direction finder on your boat, locate its antenna. Clear the antenna unit, to prevent interference to the direction finder.
- Page 6 Connect the wire to the Video Processing unit. (1) 4-pin connector to J18 (2) RJ45 connector to J12 Figure 3.2.c - Antenna unit Fix the shield cover. Do not pinch the cable. Figure 3.2.d - Antenna Cable Wiring 10. Loosely fasten the radome fixing bolts. You will tighten them after confirming the unit is working normally.
- Page 7 The radar antenna connects via ethernet cable to an external WiFi router (not included) to provide a stable signal. Through the WiFi router, the radar antenna MDS-12 connects wirelessly to the navigation system. MDS-12 is compatible with SEIWA EXPLORER 23 WiFi, SWx 900 and SWx 1200 series. Seiwa WiFi Navigation System...
- Page 8 As per our example Radar MDS-12 appears on the list and use the WiFi router PASSWORD to connect. As per our example PASSWORD “12345678”. Note: The network will be remembered by the Seiwa WiFi navigation system and next time it will be connected automatically.
