Assembly Instructions

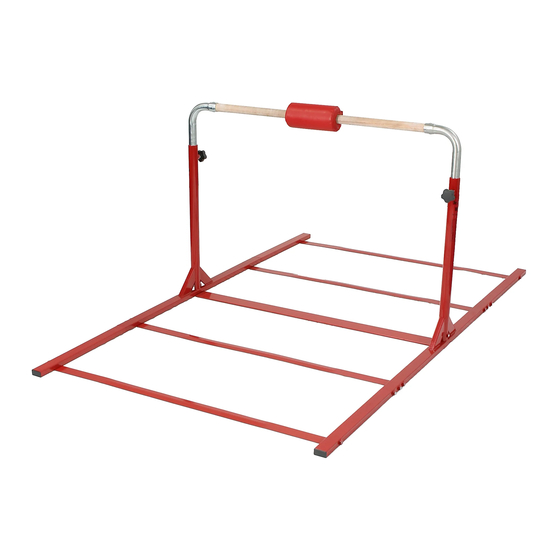

Jr. Kip Bar
Available
in Red or
Purple

Parts List

2 - End Cross Supports
2 - Uprights
NOTE: Tumbl Trak equipment is not recommended for
the use in Parkour/Free Running related activities.
Thank you for
purchasing the Jr. Kip
Bar. We hope you will
enjoy years of use of
this product.
After opening the
boxes, please check
the parts list to make
sure all pieces have
arrived in good
condition. If you have
any questions during
this assembly process,
please call
customer service
at
44 (0)2921 167 949.
1 - Center Cross
Support
Troubleshooting tip:
Spray WD-40 on the
metal uprights for
ease of sliding the
bar up and down.
1 - Bar Assembly
Hardware Includes:
(2) D-2 Knobs
(1) Allen Wrench
(12) Set Screws

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Jr. Kip Bar and is the answer not in the manual?

Questions and answers

Summary of Contents for Tumbl Trak Jr. Kip Bar

  • Page 1 1 - Bar Assembly 2 - Uprights 1 - Center Cross Support Hardware Includes: (2) D-2 Knobs NOTE: Tumbl Trak equipment is not recommended for (1) Allen Wrench the use in Parkour/Free Running related activities. (12) Set Screws...
  • Page 2 Place the Center Cross Support and 2 End Cross Your new Jr. Supports parallel to each other on the floor (Fig. A). Kip Bar is easy to assemble! Slide one of the Uprights down into the tube of the Only 1 tool Center Cross Support.
  • Page 3 Accessories for the Jr. Kip Bar The following accessories can be purchased from Tumbl Trak’s website at www.tumbltrak.co.uk or by calling 44 (0)2921 167 949. Base Extensions For increased stability for higher level skills or heavier athletes  Easily attaches to the Jr. Kip Bar Base.
