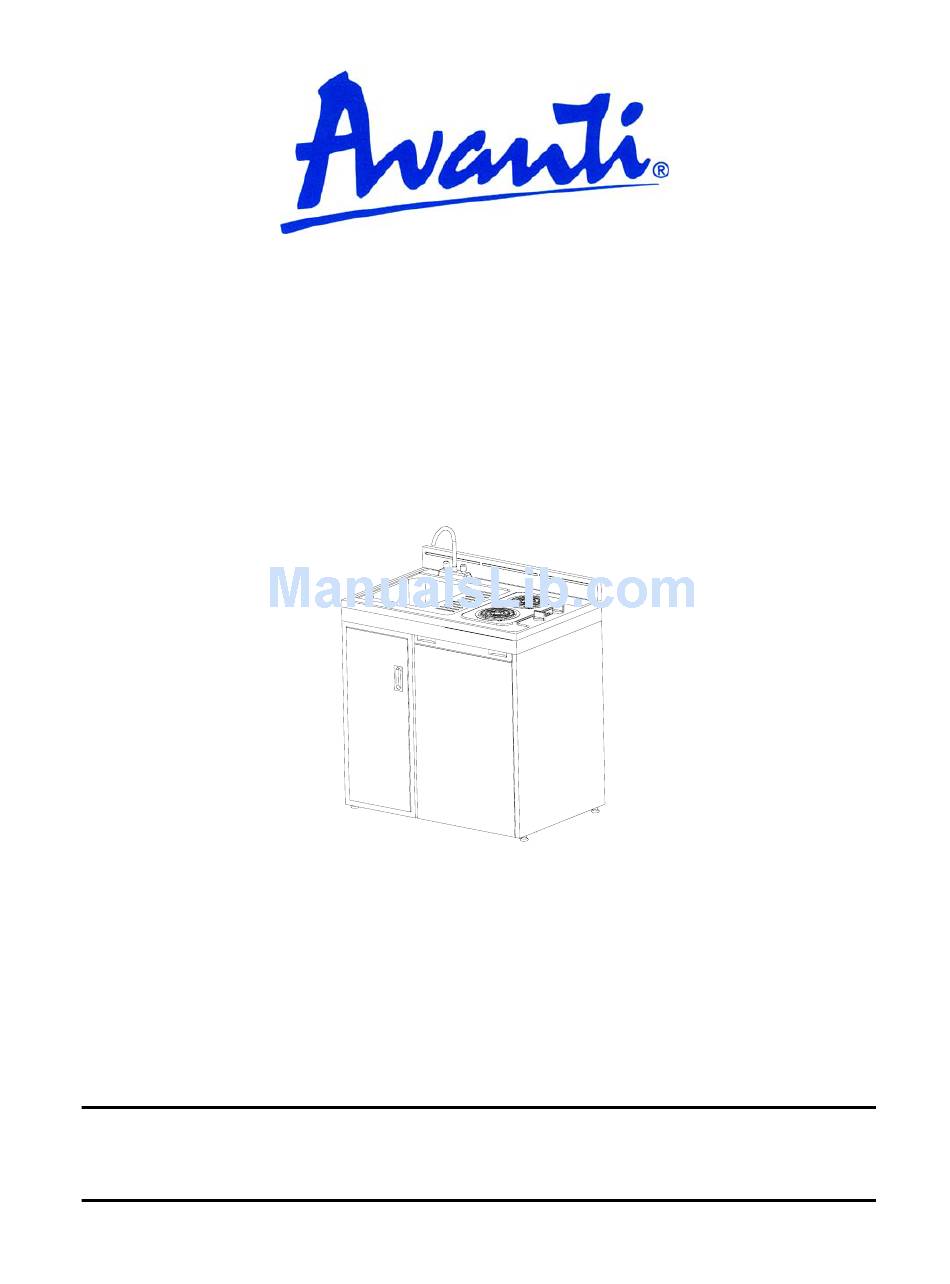

INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
CK36
Model Number / No. de Modelo:
COMPACT KITCHEN WITH REFRIGERATOR
MINI COCINA INTEGRADA CON REFRIGERADOR
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS. AND SAVE FOR LOCAL ELECTRICAL INSPECTOR.
La sección en español empieza en la página 21.
Avanti Products has a policy of continuous improvement on its products and reserves the right to change materials and
specifications without notice.
La política de Avanti es la de continuar mejorando sus productos y se reserva el derecho de cambiar los materiales y
especificaciones sin notificación alguna.
Avanti Products, A Division of The Mackle Co., Inc.
P.O. Box 520604 - Miami, Florida 33152
www.avantiproducts.com
Advertisement
Table of Contents
Related Manuals for Avanti CK36
Summary of Contents for Avanti CK36
- Page 1 Avanti Products has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice. La política de Avanti es la de continuar mejorando sus productos y se reserva el derecho de cambiar los materiales y especificaciones sin notificación alguna.
-
Page 2: Table Of Contents
Care And Maintenance Cleaning Your Compact Kitchen Cleaning Burners And Reflector Bowls Power Failure Vacation Time Moving Your Compact Kitchen Troubleshooting Guide Service For Your Compact Kitchen Your Avanti Products Warranty Wiring Diagram INSTRUCCIONES EN ESPAÑOL TABLE OF CONTENTS 21~25... - Page 3 Keep it handy to answer your questions. If you don't understand something or you need more assistance, please call: Avanti Customer Service 800-220-5570 Keep proof of original purchase date (such as your sales slip) with this guide to establish the warranty period.
-
Page 4: Parts And Features
7. Cabinet Door Handle 8. Wire Shelves (2) 9. Rear Burner (500 Watts) 10. Rear Burner Power Switch Knob 11. Rear Burner Indicator 12. Front Burner Indicator 13. Front Burner Power Switch Knob 14. Front Burner (900 Watts) 15. Refrigerator 16. Leveling Legs... -
Page 5: Important Safety Instructions
. . . even if they will “just sit in the garage a few days”. • Before you throw away your old refrigerator: take off the doors. Leave the shelves in place so that children may not easily climb inside. - Page 6 Install or replace the cover plate to the junction box and turn ON the A/C from the source or circuit breaker. • Then install the power cord of the refrigerator and the burners to the junction box of the unit.
-
Page 7: Installation Instructions
Instruction Manual • Before connecting the refrigerator of your Compact Kitchen to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system of the refrigerator from handling during transportation. -
Page 8: Electrical Connection
3 hours before placing items in the refrigerator. Electrical Connection Improper connection of the equipment-grounding can result in the risk of electrical shock. If the power cord of the range or refrigerator is damaged, have it replaced by an authorized Avanti Products service center. •... -
Page 9: Power Supply Connections
Power Supply Connections • Prepare the wiring in accordance to the National Electrical Code and/or local codes and ordinances by a qualified electrician. • Remove junction box cover. Remove the 7/8 in. knockout for the conduit connection. • Secure the conduit to the junction box with a conduit connector. •... -
Page 10: Water Faucet Installation And Water Line Connection
Water Faucet Installation And Water Line Connection Connection to the water supply must be performed by a professional licensed plumber and comply with all Local Codes and Ordinances. NO INCLUIDO) med by a pr ofession a l licensed plu m be r an d comply STRAINER Figure No. -
Page 11: Installation Of Your Refrigerator
Disconnect the power supply. Failure to disconnect the appliance could result in electrical shock or personal injury. • Connect the Refrigerator power supply cord to the receptacle in the junction box located at the back of kitchen cabinet under the countertop as shown in Figure No. 7. •... -
Page 12: Installation Of Side Tray (Tray Sold Separately)
Installation Of Side Tray NOTE: Side tray is not a standard supplied part. If you need it, please contact Avanti Service Center to buy it using the form provided. OPERATING YOUR COMPACT KITCHEN Operating Your Refrigerator The refrigerator is supplied with a separate instruction manual. Please find the details for how to operate the refrigerator inside. -
Page 13: Care And Maintenance
Most power failures are corrected within a few hours and should not affect the temperature of your refrigerator if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your contents. -
Page 14: Moving Your Compact Kitchen
• Remove all items from the storage compartment. • Unplug and remove the refrigerator out of the Compact Kitchen and move them separately. • Securely tape down all loose items (shelves and basket) inside your Compact Kitchen Compartment and Refrigerator. -
Page 15: Troubleshooting Guide
The Refrigerator does not operate The Refrigerator turns on and off frequently. Vibrations. The Refrigerator seems to make too much noise. The refrigerator door will not close properly. Burners will not maintain a rolling boil or frying rate is not fast enough. -
Page 16: Service For Your Compact Kitchen
We are proud of our customer service organization and the network of professional service technicians that provide service on your Avanti Products appliances. With the purchase of your Avanti Products appliance, you can be confident that if you ever need additional information or assistance, the Avanti Products Customer Service team will be here for you. -
Page 17: Your Avanti Products Warranty
WHAT IS COVERED LIMITED ONE-YEAR WARRANTY For one year from the date of purchase by the original owner, Avanti Products will, at its option, repair or replace any part of the unit, which proves to be defective in material or... -
Page 18: Wiring Diagram
CARACTERISTICAS 1. FUENTE DE AGUA 2. PANEL TRASERO 3. DESAGUE DE DESBORDE 4. FREGADERO 5. GABINETE 6. PUERTA DEL GABINETE 7. MANIJA DEL GABINETE 8. REPISAS DEL GABINETE (2) 9. HORNILLA TRASERA DE 500 VATIOS 10. CONTROL DE TEMPERATURA (DE LA HORNILLA TRASERA) 11. -
Page 19: Instrucciones En Español
INSTRUCCIONES EN ESPAÑOL PRECAUCIÓN • Lea todas las instrucciones antes de usar su electrodoméstico. • Peligro o Precaución: Existe el riesgo que los niños queden atrapados. • Niños atrapados o sofocamiento no son un problema del pasado. Los electrodomésticos son peligrosos aún si solo los deja en el garaje por un par de días. - Page 20 UBICACION 1. Seleccione un lugar con un piso firme y nivelado. 2. Para un mejor desempeño, nivele el refrigerador utilizando las patas ajustables o tornillos niveladores. Para verificar el nivel, abra la puerta hasta la mitad, debe regresar sola. INSTRUCCIONES PARA LA CONECCION A TIERRA Este aparato electrodoméstico debe estar conectado a tierra.
- Page 21 PREPARANDO SU COCINA PARA UTILIZARLA POR PRIMERA VEZ Coloque el panel trasero utilizando los 3 tornillos incluidos (vea Figura 3). CONEXION DE LA FUENTE DE AGUA La conexión de la fuente de agua debe ser realizada por un plomero profesional y licenciado.
- Page 22 IRREGULARIDADES CON EL FUNCIONAMIENTO DEL REFRIGERADOR PROBLEMA El refrigerador no funciona. Falta de energía. Tomacorriente defectuoso. Control de temperaturas en la posición “ O ”. Enchufe desconectado. La refrigeración es Botón de control de temperatura en la insuficiente. posición incorrecta. Elevada frecuencia de apertura de la puerta.
-
Page 23: Registration Information
REGISTRATION INFORMATION Thank you for purchasing this fine Avanti product. Please fill out this form and return it to the following address within 100 days of purchase and receive these important benefits: Avanti Products, A Division of The Mackle Co., Inc. - Page 24 PRINTED IN CHINA...
