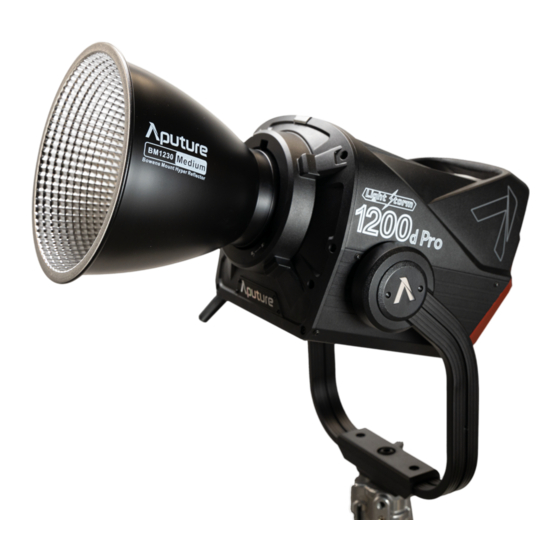

Aputure Light Storm Series Product Manual

Hide thumbs Also See for Light Storm Series:
Table of Contents

Advertisement

Quick Links

Download this manual
LS 600x Pro
Product Manual
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Light Storm Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aputure Light Storm Series

Summary of Contents for Aputure Light Storm Series

  • Page 1 LS 600x Pro Product Manual English...

  • Page 2: Important Safety Instructions

    Thank You! Thank you for purchasing the Aputure® "Light Storm" series of Bi-color Point Source light fixture - LS 600x Pro. The LS 600x Pro features a weather-resistant design, high-power Bi-color Point Source light with adjustable color temperature (2700K ~ 6500K). LS...
  • Page 3 10. To reduce the risk of fire or electric shock, do not disassemble this fixture. Contact cs@aputure.com or take the lighting fixture to qualified service personnel when service or repair is required. Incorrect reassembly may cause electric shock when the lighting fixture is in use.

  • Page 4: Fcc Compliance Statement

    SAVE THESE INSTRUCTIONS FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.

  • Page 5: Components List

    Components List Please make sure all accessories listed below are completed before using. If not, please contact with your sellers immediately. Protection Cover (1 pc) Paracord Strap(1 pc) VA-Remote RC1+ Lightning Clamp LS 600x Pro (1 pc) (1 pc) Control Box (1 pc) LS 600x Pro Lamp Head (1pc) 600 Series...

  • Page 6: Product Details

    Product Details 1. Lamp Head Bowens Mount Release Latch Bowens Mount LED Light Source 5-Pin Male Weatherproof Head Cable Connector 600 Series Hyper Reflector Cable Relief Hook Junior/Baby Pin Mount Ratcheting Disk T-Handle / Baby Pin Brake Handle (1.125in/28mm | 5/8in./16mm) Mounting Screw 2.
  • Page 7 5-Pin Female Head Cable Connector DMX OUT DMX IN 48V DC Input Neutrik® Port Port (3-Pin XLR) powerCON Power Input 3. VA-Remote RC1+ Channel Indicators Group A Dimming Controls Group A On/Off Group B Dimming Controls Group B On/Off Group C Dimming Controls Group C On/Off...
  • Page 8 Notice: Always remove the protection cover prior when turning on the light. Always re-install the cover when packing it away. 2. Attaching/detaching the Hyper-Reflector To install the reflector, pull back the retaining pin, insert the reflector into the Bowens mount, and rotate it counter clockwise as shown in the following pictures. To remove the reflector, pull back the retaining pin and rotate the reflector clockwise.
  • Page 9 4. Lightning Clamp Operation Instructions 1) Clamp the Lightning Clamp onto a light stand. 2) To attach the control box, rotate the release lever to unlock the quick-release baseplate, then mount the control box onto the Lightning Clamp (the release lever will automatically spring back).
  • Page 10 6. Powering Up the Control Box 1) Powering by AC Neutrik® powerCON Male Connector AC 100V-240V Neutrik® powerCON Female Locking Connector To disconnect the Neutrik® powerCon cable, pull back on the yellow release tab on the cable connector, and rotate the connector counter clockwise. Do not pull directly. 2) Powering by Batteries V-Mount Battery Anton Bauer Battery...

  • Page 11: Charge Batteries

    7. Charge Batteries When selecting the Exponential (Exp) or Linear dimming curve option, you can charge batteries if the brightness intensity is ≤ 70%. When selecting the Logarithmic Log dimming curve option,you can charge batteries if the brightness intensity is ≤ 30%. When selecting the S-Curve dimming curve option, you can charge batteries if the brightness intensity is ≤...
  • Page 12 MEN U DMX Mode 2.1）Output Mode Press the MENU Button to enter the menu interface, rotate the Select wheel and short press to enter the Output Mode. In the output mode interface, you can choose Constant Output Mode and Max Output Mode. Constant out put mode can maintain the brightness output during the process of changing the color temperature.
  • Page 13 DMX Mode DMX Loss Behavior MX Address Black Out MX Loss Behavior Fade to Black MX Profile Hold Last Settings Hold 2 min.&Fade Out 2.3）Dimming Curves Press the MENU button to enter the menu interface, rotate the Select wheel to select Dimming Curve, and press the MENU button to enter the Dimming Curve selection menu.
  • Page 14 When overheat symbol appears on the light control interface, please follow the text underneath to adjust the Fan Mode to Smart or High. If the internal temperature of the lamp reaches the threshold that needs to be cooled, the lamp will automatically shut down due to overheat protection.
  • Page 15 Control System Bluetooth 2.4G Control Lumenradio Ethernet 2.7.1）Bluetooth (1) In the control interface, rotate the Select wheel to select and press to enter the Bluetooth mode interface. Then, you can choose to turn on or off or reset Bluetooth. In the Bluetooth reset interface, you can choose to upgrade or return to the previous menu.
  • Page 16 2.7.3）Lumenradio In the control interface, rotate the Select wheel to select and press to enter the Lumenra- dio interface. By rotating and pressing the Select wheel, you can switch the Lumenradio on or off, and pairing status. Lumenradio Lumenradio Pair Update Firmware 2.7.4）Ethernet In the control interface, rotate the Select wheel to select and press to enter the Ethernet...
  • Page 17 2.9）Factory reset Press the MENU button to enter the menu interface, rotate the Select wheel to select and press to enter the Factory Reset interface. The factory settings are: fan is in smart mode, channel is 1, group is A, light effect brightness value is 50%, light effect mode color temperature value is 5600K, normal mode brightness is 50%, normal light mode color temperature is 5600K, output mode-maximum output mode, Bluetooth mode is turned on, studio mode is turned off, dimming curve-linear, DMX channel number 001, English,...
  • Page 18 2.11）Custom FX Press the MENU button to enter the menu interface, rotate the Select wheel to select and press to enter the Custom FX. You can choose to enter Picker FX, Music FX, or Touchbar FX interface. Each type can save 10 custom FXs. In the name of each FX, "NO FX" means unsaved FX, and "Untitled"...
  • Page 19 3. Effects Press the Effects button to enter the Effects Mode. rotate the Select wheel to select and press to enter the Effects interface. You can choose from Paparazzi, Firework, Faulty Bulb, Lightning, TV , Pulsing, Strobe, Explosion, and Fire effect. Explosion a.
  • Page 20 * In Lighting FX mode, manually short press the Trigger button to trigger the lightning single mode, Manually long press the Trigger button to enter the lightning cycle mode, and long press the Trigger button again to exit the lightning cycle mode. e.

  • Page 21: Remote Control

    1) Short press the select wheel to select frequency adjustment. Twist the wheel to change the brightness of the lamp between 0%~100%. 2) Short press the select wheel to select frequency adjustment. Twist the wheel to change the frequency of the lamp between 1~10; R means random. 3) Rotate the CCT knob to change the color temperature value of the lamp, [CCT] value (2700K-6500K).
  • Page 22 2) Adjusting brightness Press A/B/C/D to turn the lights on or off , press ( ) to adjust the brightness of the light from 0 to 100% accordingly. * This remote will not work when the light is in DMX mode. **The remote control will only control the operation of the light when the fixture is in 2.4Ghz Wireless Control Mode.
  • Page 23 4. Connecting to DMX 1) Connect a standard DMX controller OUTPUT DMX512 Connecting DMX to only one 600x Pro OUTPUT DMX512 Daisy chaining multiple lights using DMX * The DMX interface schematic is shown in the pictures below: Data 1+ Data 1+ (Primary Data Link) (Primary Data Link)
  • Page 24 5. Controlling Device Via DMX OUTPUT DMX512 2) DMX Chart Mode Channel Function INT: 0-100% DMX Profile 1: Lighting CCT：2700K-6500K INT: 0-100% CCT：2700K-6500K Paparazzi Fireworks Fault Bulb Lighting Pulsing Strobe Explosion Fire DMX Profile 2: Effects FRQ：1-10/R Initial value/ Initial value/ Trigger/Loop Trigger/Loop INT: 0-100%...

  • Page 25: Specifications

    You can download the Sidus Link app from the iOS App Store or Google Play Store for enhancing the functionality of the light. Please visit sidus.link/app/help for more details regarding how to use the app to control your Aputure lights. Get Sidus Link Sidus.link/app/help...
  • Page 26 Lamp Head 30.2X14.7X14.9cm/11.88*5.78*5.86in w/o Yoke Lamp Head 30.2X43.6X24.8cm/11.88*17.16*5.86in w Yoke Controller box 32.3*17.9*14.2cm/12.71*7.04*5.59in （V-Mount） Sizes (L*W*H) Controller box 32.3*17.9*13.2cm/12.71*7.04*5.19in （Gold-Mount） 10.35*8.74*12.5cm/4.07*3.44*4.92in Lighting Clamp Lamp Head 5.16kg/11.37lbs Controller box 4.89kg/10.78lbs （V-Mount） Controller box 4.89kg/10.78lbs Weight （Gold-Mount） Lighting Clamp 670g/1.48lbs 19.07 kg/42.04lbs Total weight *The malfunctions caused by water in the lamp body are not covered under the warranty.
  • Page 27 Bowens is a trademark registered by Bowens in China and other countries. Anton Bauer is a trademark registered by Anton Bauer in the US and other countries. Neutrik® is a trademark registered by Neutrik® in the US and other countries. Detailed product manual can be found on www.aputure.com.
