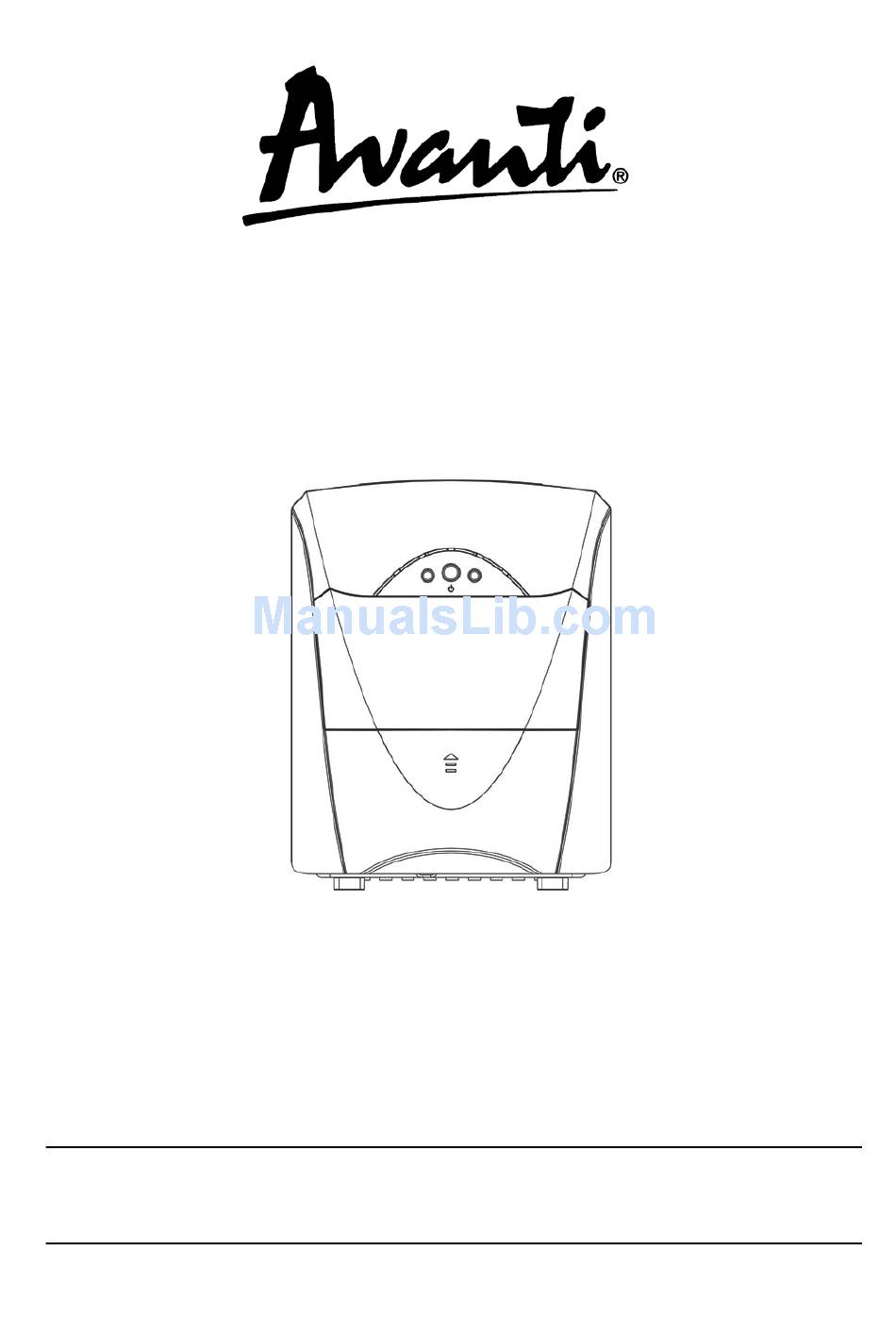

ICE MAKER/MAQUINA DE HACER HIELO
INSTRUCTION MANUAL/MANUAL DE INSTRUCCIONES
25
PIM
SS
Model Number / No. de Modelo:
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS.
La sección en español empieza en la página 15.
Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications
without notice.
Avanti Products, A Division of The Mackle Co., Inc.
P.O. Box 520604 - Miami, Florida 33152
www.avantiproducts.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIM25SS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avanti PIM25SS

Summary of Contents for Avanti PIM25SS

  • Page 1 INSTRUCTIONS. La sección en español empieza en la página 15. Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice. Avanti Products, A Division of The Mackle Co., Inc.

  • Page 2: Table Of Contents

    Operating Your Appliance Getting Ice from Ice-bin Care and Maintenance Cleaning Your Appliance Space Requirements Power Failure Troubleshooting Guide Service for Your Appliance Wiring Diagram Your Avanti Products Warranty Instrucciones en Español Registration Information and Registration Card TABLE OF CONTENTS 15 -20...

  • Page 3: Ice-Maker Safety

    All safety messages will alert you to know what potential hazard is, tell you how to reduce the chance of injury, and let you know what can happen if the instructions are not followed. ICE MAKER SAFETY Danger means that failure to heed this safety statement may result in severe personal injury or death.

  • Page 4: Important Safeguides

    Before the appliance is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury when using the appliance, follow basic precaution, Including the following: •...

  • Page 5: Help Us Help You

    Keep it handy to answer your questions. If you don't understand something or you need more help, please call: Avanti customer service 800-220-5570 Keep proof of original purchase date (such as your sales slip) with this guide to establish the warranty period.

  • Page 6: Parts And Features

    PARTS AND FEATURES Water tank Ice-bin Water tray Evaporator Insulated cabinet Fan motor Compressor Power socket Water pump Drain Carry handles Ice-bin with integrated handle Control panel Stainless steel cabinet...

  • Page 7: Important Safety Instructions

    1 Water-fill Cup • 1 Instruction Manual • Before connecting the ice maker to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation. •...

  • Page 8: Electrical Connection

    AVANTI PRODUCTS SERVICE CENTER. • This ice maker should be properly grounded for your safety. The power cord of this ice maker is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock.

  • Page 9: Operating Your Appliance

    The indicator below the selected cube size will be illuminated green. ADD WATER INDICATOR (RED). The ice maker automatically checks the water level in the tank. If the water level is too low the indicator will illuminate in RED and will stop working automatically. Once you add water to the unit the indicator will turn off and will resume normal operation.

  • Page 10: Operating Your Appliance

    3 minutes after the ADD WATER indicator goes out as the ice-maker will begin It’s normal operation cycle automatically. • When the ice cubes are collected and reach the bin sensor, the ice maker will stop operating and the ICE FULL indicator will be lit. •...

  • Page 11: Getting Ice From Ice-Bin

    • The Ice maker should be placed horizontally on a properly leveled surface. • To ensure proper ventilation for your Ice maker allow 6” of space at the top, the back and on each side. • Before using the Ice maker for the first time, please wait 2 hours after positioning it.

  • Page 12: Troubleshooting Guide

    PROBLEMS WITH YOUR ICE MAKER? You can solve many common ice maker problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer. Problem...

  • Page 13: Service For Your Appliance

    We are proud of our customer service organization and the network of professional service technicians that provide service on your Avanti ice maker. With the purchase of your Avanti ice maker, you can be confident that if you ever need additional information or assistance, the Avanti Products Customer Service team will be here for you.

  • Page 14: Your Avanti Products Warranty

    In rental or commercial use, the warranty period is 90 days. All Avanti Appliances of 3.5 cubic feet capacity or less must be brought/sent to the appliance service shop for repair.

  • Page 15: Instrucciones En Español

    Cualquier consulta que tenga referente a la electricidad y/o cable a tierra, debe ser dirigida a un electricista certificado o a un centro de servicios autorizado por Avanti Products. IMPORTANTE: No instale la Máquina de hacer hielo cerca a un horno, radiador u otras fuentes de calor.
  • Page 16 EL USO INAPROPIADO DEL ENCHUFE A TIERRA PUEDE OCASIONAR RIESGO DE UN CHOQUE ELECTRICO. SI EL CORDON SE DAÑASE, LLEVELO A UN CENTRO DE SERVICIO AUTORIZADO POR AVANTI PRODUCTS PARA QUE SE REEMPLACE. • Para su seguridad, esta máquina de hacer hielo debe estar apropiadamente conectada a tierra. El cordón eléctrico de esta máquina de hacer hielo esta equipado con un enchufe de tres puntas, el...
  • Page 17 OPERANDO SU MÁQUINA DE HACER HIELO  Descripción del Panel de Control Start / Inicio Presione para iniciar el ciclo para hacer hielo. Stop / Parar Presione para detener el ciclo para hacer hielo. Ice Size / Tamaño del hielo SELECCIÓN DE TAMAÑO DEL HIELO hay tres tamaños: (S) pequeño, (M) mediano o (L) grande.
  • Page 18 Iniciando el proceso con su máquina de hacer hielo • Hale el contenedor de hielo hacia ud. y retírelo. • Remueva el polvo o cualquier objeto que esté en el tanque de agua. • Utilice el recipiente que incluímos con la unidad para llenar el tanque de agua hasta el área marcada “MAX”.
  • Page 19 hacer hielo detendrá el funcionamiento y el indicador de ICE FULL (CICLO COMPLETO) se encenderá. • Hay tres tamaños de cubos de hielo para su elección, por lo tanto, mientras más grande sea el tamaño deseado mas tiempo tomará el ciclo completo. Cuando la temperatura ambiente sea mas baja que 15°C (59ºF), se recomienda elegir cubos de hielo de tamaño S pequeño o M mediano ya que esto evitará...
  • Page 20  Requerimientos de espacio • El ángulo de inclinación de la unidad durante el transporte no debe exceder los 45° • No ponga la máquina de hacer hielo de cabeza ya que esto puede producir problemas en el compresor y el sistema sellado. •...

  • Page 21: Registration Information And Registration Card

    REGISTRATION INFORMATION Thank you for purchasing this fine Avanti product. Please fill out this form and return it within 100 days of purchase to receive these important benefits to the following address: Avanti Products, A Division of The Mackle Co., Inc.
  • Page 22 PRINTED IN CHINA...
