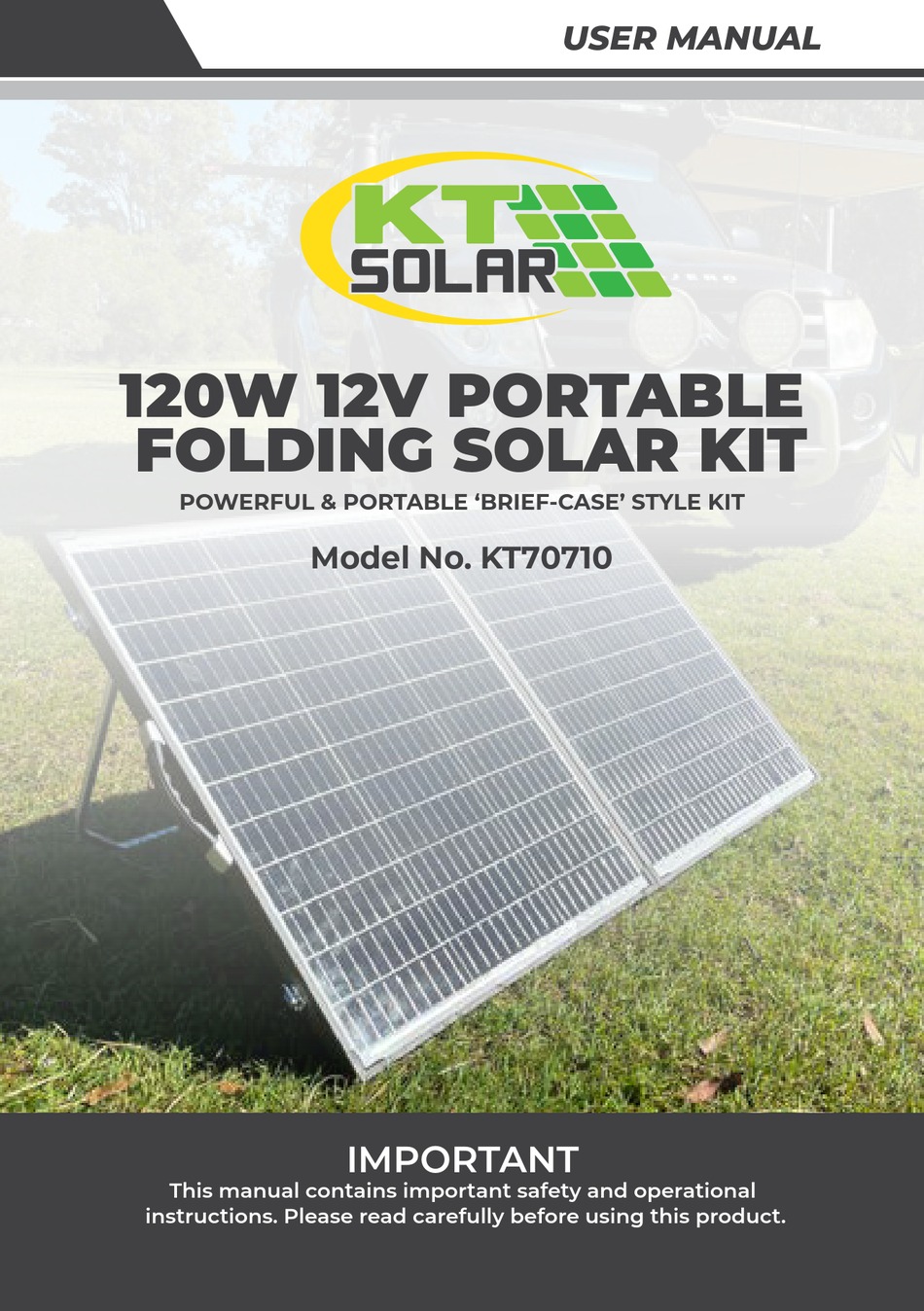

USER MANUAL
USER MANUAL
120W 12V PORTABLE
FOLDING SOLAR KIT
POWERFUL & PORTABLE 'BRIEF-CASE' STYLE KIT
Model No. KT70710
IMPORTANT
This manual contains important safety and operational
instructions. Please read carefully before using this product.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KT70710 and is the answer not in the manual?

Questions and answers

Related Manuals for KT SOLAR KT70710

Summary of Contents for KT SOLAR KT70710

  • Page 1 USER MANUAL USER MANUAL 120W 12V PORTABLE FOLDING SOLAR KIT POWERFUL & PORTABLE ‘BRIEF-CASE’ STYLE KIT Model No. KT70710 IMPORTANT This manual contains important safety and operational instructions. Please read carefully before using this product.

  • Page 2: Warranty / Guarantee

    Feedback KT Solar design and innovate our own products based on market and consumer demand, and always welcome any feedback on our products and services. If you would like to provide us feedback, you can do this by: a) Send our team an email at marketing@ktcables.com.au or...
  • Page 3 USER MANUAL For your personal safety, please read, understand and follow the information provided in this instruction manual. Congratulations on your new & Innovative 120 Watt, 12V Portable Folding Solar Kit! Designed to fold down to a convenient 710 x 510 x 65mm ‘brief-case’ style kit. Features •...

  • Page 4: Operational Instructions

    USER MANUAL Components 2 x 60W solar cells configured in parallel (120W, 12V Portable 'brief-case' style kit) 10A, 12V PWM solar charge controller 1 x 10M, 50Amp extension lead 1 x Positive & Negative alligator clamp, 500mm lead to 50A, 12V connector Sturdy nylon bag with carry straps Operational Instructions Step 1 - Unfold &...
  • Page 5 USER MANUAL Solar Controller Specifications Type Operating Temperature -20°C to +80°C Operating Voltage Rated to (Amps) Rated to (Voltage) Battery Voltage Dimensions (mm) 100 (H) x 130 (W) x 28 (D) Product Weight 1.20kg Manufactured from material Polycarbonate The KT 10 Amp Solar Charge Regulator is designed to regulate the amount of charge coming from the panel that flows into the deep cycle battery in order to avoid batteries being overcharged.

  • Page 6: Wiring Connections

    USER MANUAL Solar Controller Diagram AMP / AMP / VOLT VOLT BATTERY BATTERY TYPE TYPE Hold for 3 seconds Hold for 3 seconds for settings for settings 10A 12V PWM 10A 12V PWM SOLAR CHARGE CONTROLLER SOLAR CHARGE CONTROLLER KT70756 KT70756 Solar Controller Operation Step 1: Connect the battery.
  • Page 7 USER MANUAL AMP / VOLT BATTERY TYPE Hold for 3 seconds for settings 10A 12V PWM SOLAR CHARGE CONTROLLER KT70756 Operation - LCD Display Please check your battery manufacturer’s specifications to select correct battery type. The unit provides 5 types for selections: Gel, AGM, WET (conventional lead acid), Lithium and Calcium.
  • Page 8 USER MANUAL Self-test starts, digital meter segments test Software version test Rated voltage and current test ºC External battery temperature sensor test (if connected) After going into charging process, the LCD displays the charging states as below: Press VOLT / AMP button in sequence, the LCD will display in turn with Battery Voltage, Charging Current, Charged capacity (Amp-hour) and Battery Temperature (if external temperature sensor connected) Display in the day time-...

  • Page 9: Charging Stages

    USER MANUAL CHARGING STAGES OPERATION - L.E.D. INDICATION The unit has a 5 stage charging algorithm. - Soft Charge (Level 1) - Bulk Charge (Level 2) - Absorption charge (Level 3) - Equalizing Charge (Level 4) - Float Mode (Level 5) CHARGING STAGES Soft Charge - When batteries suffer an over-discharge, the controller will softly ramps the battery voltage up to 10V for 12V battery.
  • Page 10 USER MANUAL OPERATION - L.E.D. INDICATION Values are for 12V use. ABNORMAL OPERATION MODE...
  • Page 11 USER MANUAL OPTIONAL EXTERNAL DEVICE The controller provides an optional device (excludes in the packaging box).

  • Page 12: Specifications

    USER MANUAL SPECIFICATIONS Values are for 12V use.

  • Page 13: Product Care

    Do not attempt to increase module output by concentrating light on its surface with mirrors. When storing the KT Solar kit - to avoid damage, do not pack heavy items on top. Do not disassemble the controller. Take to a qualified electrician if the unit requires repairing.
