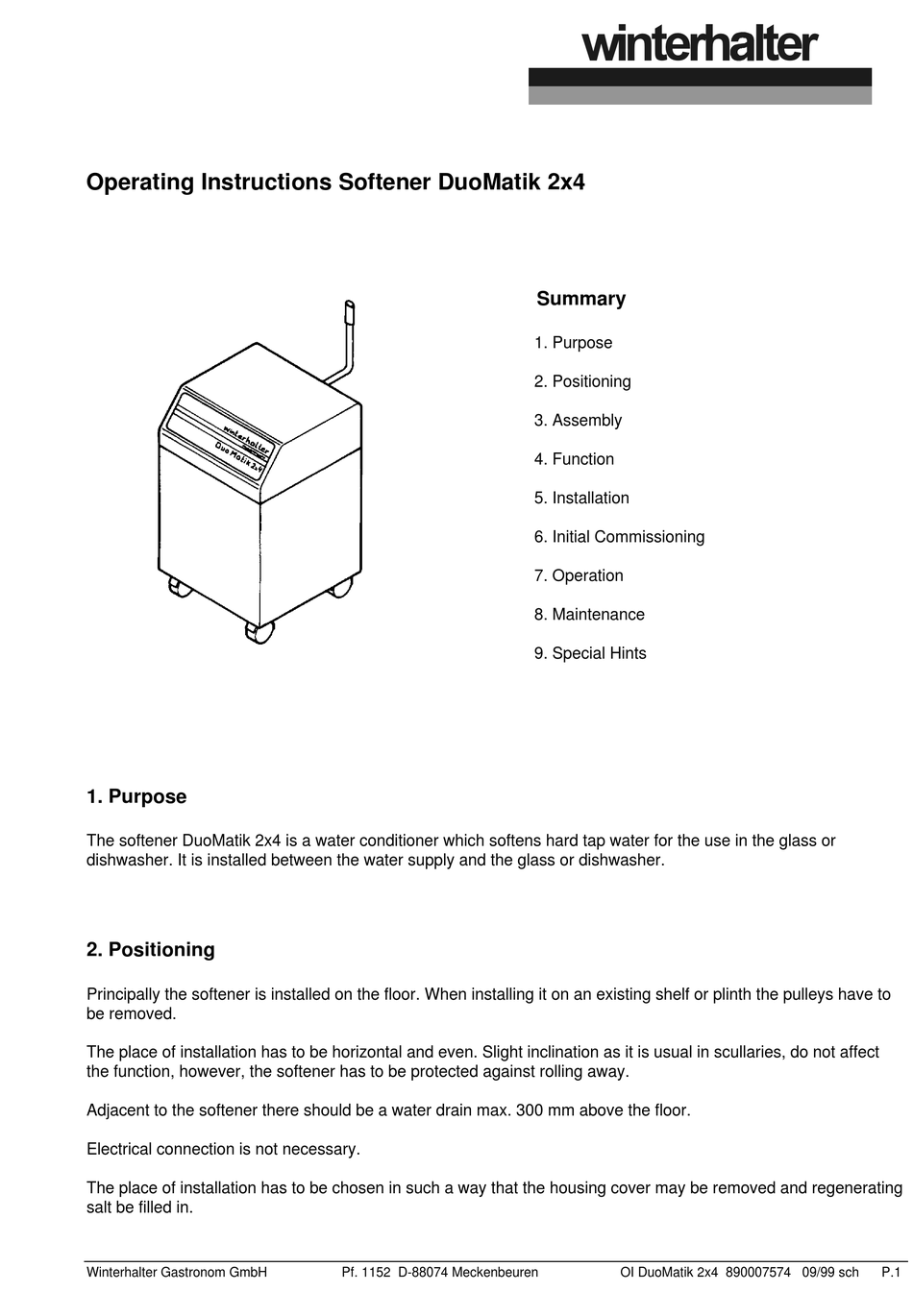

Operating Instructions Softener DuoMatik 2x4
1. Purpose
The softener DuoMatik 2x4 is a water conditioner which softens hard tap water for the use in the glass or
dishwasher. It is installed between the water supply and the glass or dishwasher.
2. Positioning
Principally the softener is installed on the floor. When installing it on an existing shelf or plinth the pulleys have to
be removed.
The place of installation has to be horizontal and even. Slight inclination as it is usual in scullaries, do not affect
the function, however, the softener has to be protected against rolling away.
Adjacent to the softener there should be a water drain max. 300 mm above the floor.
Electrical connection is not necessary.
The place of installation has to be chosen in such a way that the housing cover may be removed and regenerating
salt be filled in.
Winterhalter Gastronom GmbH
Pf. 1152 D-88074 Meckenbeuren
ZLQ
W
H K
U O
Summary
1. Purpose
2. Positioning
OI DuoMatik 2x4 890007574 09/99 sch
W
H
U
P.1
Advertisement
Table of Contents
Related Manuals for Winterhalter DuoMatik 2x4
Summary of Contents for Winterhalter DuoMatik 2x4
- Page 1 9. Special Hints 1. Purpose The softener DuoMatik 2x4 is a water conditioner which softens hard tap water for the use in the glass or dishwasher. It is installed between the water supply and the glass or dishwasher. 2. Positioning Principally the softener is installed on the floor.
- Page 2 The exchange resin has a limited capacity which depends on the hardness of the untreated water. When exhausted, it has to be regenerated. In order to have continuously softened water, in case of exhaustion one of the cartridges the DuoMatik 2x4 automatically switches to the second cartridge and the exhausted cartridge is regenerated.
- Page 3 Please take care that the regenerating salt in the container always covers the water level (height approx. 150 mm). 8. Maintenance The function of the softener has to be checked regularly, at least twice a year by the Winterhalter after-sales- service. If necessary, the inside of the container has to be cleaned. Protect softener from frost.
