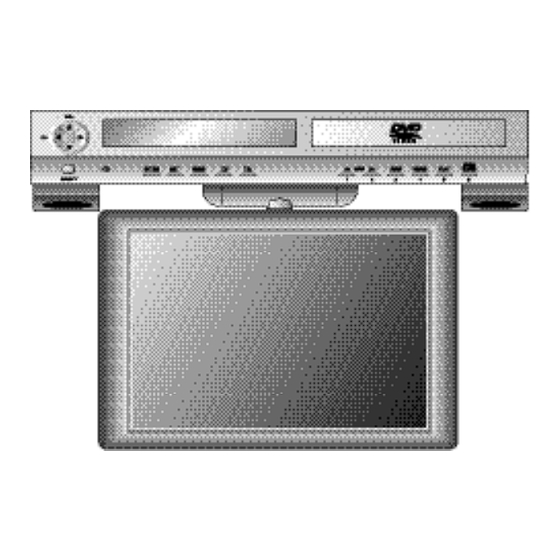

- Page 1 LOW PROFILE DVD/TV/SPEAKER PHONE OWNER’S/INSTALLATION GUIDE - 1 - - DVD Player & 10.4” TFT LCD Monitor - Multi-Function Remote Control - Built-in Speaker Phone Mode - Cable Ready 125 Channel Tuner - Internal Stereo Speakers - Under Cabinet Mounting - A/V Input 128-6451...
-
Page 2: Introduction
Record model number and serial number in the space provided below. Refer to these numbers whenever you call upon your Audiovox dealer regarding this product. Model No. Serial No. WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. -
Page 3: Important Safety Instructions
Important Safety Instructions 1. Read Instructions - All the safety and operating instructions should be read before the product is operated. 2. Retain Instructions - The safety and operating instructions should be retained for future reference. 3. Heed Warnings - All warnings on the product and in the operating instructions should be adhered to. - Page 4 Important Safety Instructions 13. Power-Card Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.
- Page 5 Important Safety Instructions D. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.
- Page 6 1) Unplug the unit before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 2) Use only Audiovox approved accessories. 3) Do not install this video product where it is likely to be exposed to water.
-
Page 7: Table Of Contents
Before You Begin Installation Operation Remote Control Functions Modes of Operation Using the Remote Control Functions Using the Setup Menu Definition of Terms Troubleshooting Check List Technical Specifications Table Of Contents Introduction... 2 Important Safety Instructions... 3 Table of Contents ... 7 Included in this Kit ... -
Page 8: Included In This Kit
1. VE1040 DVD/TVPhone 2. Mounting Template 3. Hardware Bag A. 3/4” Mounting screws (4) B. 1-1/4” Mounting screws (4) C. 1-1/2” Mounting screws (4) D. 3/4” Spacer (4) E. 1/2” Spacer (4) F. 1/4” Spacer (4) Included in this kit 4. -
Page 9: Under Cabinet Installation
FRONT VIEW 1) Choose an appropriate mounting location underneath a cabinet or shelf. Close proximity to an electrical outlet and a TV antenna or cable connection will facilitate a neat, easy installation. Do not mount the VE1040 above a range or oven. -
Page 10: Front Panel Controls
1. O N / O F F : Power ON /OFF and Standby Condition (Time Display). 2. E N T E R : Enters the desired function during the DVD Mode. 3. S E T : Confirms selection of TIME, ALARM, ALARM-Tone, TV-Mode or Menu item. -
Page 11: Rear Panel Controls
Rear Panel Controls 1) 75 OHM ANTENNA CONNECTOR - Allows the VE1040 to be connected to 75 ohm external coaxial antenna. 2) FM ANTENNA - Allows the VE1040 to be connected to a 75 ohm external coaxial antenna for the reception of FM broadcast signals. 3) AM ANTENNA - Allows the VE1040 to be connected to an external antenna for the reception of AM broadcast signals. -
Page 12: Lcd Control Functions
LCD Control Functions 1 MENU Button - When pressed, the LCD control MENU is displayed. 2 SEL Button - Highlights the menu item to be changed using the UP (▲) / DOWN (▼) buttons. 3 UP (▲) Button - Scrolls upward through menu items, also adjusts selected item in upward (increase) direction. -
Page 13: Operation
CHANNEL TUNING SET UP In addition to normal broadcast reception of VHF and UHF channels, if you are a Cable TV subscriber, your new TV is capable of receiving many unscrambled Cable channels without the use of a converter box. When set to broadcast TV, it receives CH2-CH69. -
Page 14: Deactivating The Alarm
DEACTIVATING THE ALARM 1) Press the SET button twice to enter the alarm mode. 2) Press the T/F button once. The time indication disappears from the Vacuum Flourescent Display(VFD) and a series of dashes will appear ( : — : - indicating the alarm Deactivated mode. 3) Press the POWER button. -
Page 15: Remote Control Functions
Remote Control Functions (1) OPEN/CLOSE (2) POWER (3) DVD (4) TV (5) AM/FM (6) A/V (7) Digit 0 -9 Select (8) ENTER (9) CLR (10) TEL (11) MUTE (12) VOL+/- (13) STOP (14) PLAY (15) FUNCTION UP/DOWN Select (16) PREV., NEXT (17) SR (18) SF (19) PAUSE/STEP... - Page 16 DVD MENU (1) O P E N / C L O S E : Press this button to Open and Close the disc tray. (2) POWER : Press this button to turn power On and Off. (3) DVD : Press this button to select DVD mode of operation.
-
Page 17: Modes Of Operation
SETTING THE CABLE TV MODE 1) With power off, press the SET button three times to enter the cable configuration mode. AIR appears on the display . Then press the 1 preset to button switch from broadcast TV(VHF or UHF) to cable TV.(CAbl will appear on the VFD.) 2) Press the SET button again to display the cable system mode (Standard, Irc, Hrc). -
Page 18: Using The Remote Control Functions
Using the Remote Control Functions Inserting and Ejecting the Disc 1. When the tray opens, insert the disc properly with the label facing up. 2. As the tray closes, playback is automatically executed. * Discs playable through DVD player - DVD, CD, CD-R, CD-RW with MP3. Playback and Stop 1. -
Page 19: Repetitive Playback-To Repeat A Specific Section
Using the Remote Control Functions Repetitive Playback—To Repeat a Specific Section. 1. Pressing the REPEAT button once, the current chapter or track will be replayed repetitively (CHPTER REPEAT ON). 2. Pressing the button twice, he currently playing title or CD will be played repetitively (TITLE REPEAT ON). 3. -
Page 20: Viewing The Setup Menu
Using the Remote Control FunctionS Viewing the Setup Menu 1. Pressing the SETUP button will display the setup menu. This allows the user to select DVD options (Languages, Display, Audio and Parental). 2. To return to a previous screen, press the SETUP button. Viewing the Playback Time, Title and Chapter Status 1. -
Page 21: Using The Setup Menu
Using The Setup Menu Using the setup menu allows the user to select the play mode settings. To use the SETUP menu : 1. Press the SETUP button to display the main menu. 2. Use the ▲ or▼ buttons to highlight the desired menu item. 3. -
Page 22: General Setup
GENERAL SETUP TV DISPLAY : Select the aspect ratio of the playback picture. NORMAL/PS : Pan & scan display.(DEFAULT) NORMAL/LB : Letterbox display WIDE : Widescreen display TV TYPE : Selects the type of televison. MULTI : Outputs the original image signal of PAL or NTSC recorded into title.Only select this option when user ’... -
Page 23: Speaker Setup
SPEAKER SETUP DOWNMIX LT/RT : Selected only when the amplifier has Dolby Pro Logic support. STEREO : Selected when listening to general stereo sound. DOLBY DIGITAL SETUP OP MODE LINE OUT : Line out mode, with digital dialog normalization Default. RF REMOD : RF remodulation mode, with heavy compression and digital dialog normalization. -
Page 24: Definition Of Terms
Definition Of Terms DEFINITION OF TERMS Title Definition As a form of medium for compressed digital sound recording, it corresponds with the 5.1 channel surround sound system; this system has rear stereo DOLBY DIGITAL channels, and separates the woofer channels completely which enables the users to enjoy the best digital experience. -
Page 25: Troubleshooting Checklist
Troubleshooting Check List When the power does not turn on TROUBLESHOOTING CHECKLIST * Check if the power cord is securely connected to the rear of the unit. * Check if the batteries of the remote control unit are not depleted. When the disc fails to play * Check if the disc is inserted properly into tray. -
Page 26: Technical Specifications
Troubleshooting Check List When the remote control doesn’t work. * Check if the distance/angle from the player is not too far or acute, or whether there are objects in between the player and the remote control. * Check if the batteries are discharged. When the setup menu of the product does not operate. - Page 27 -27 -...
