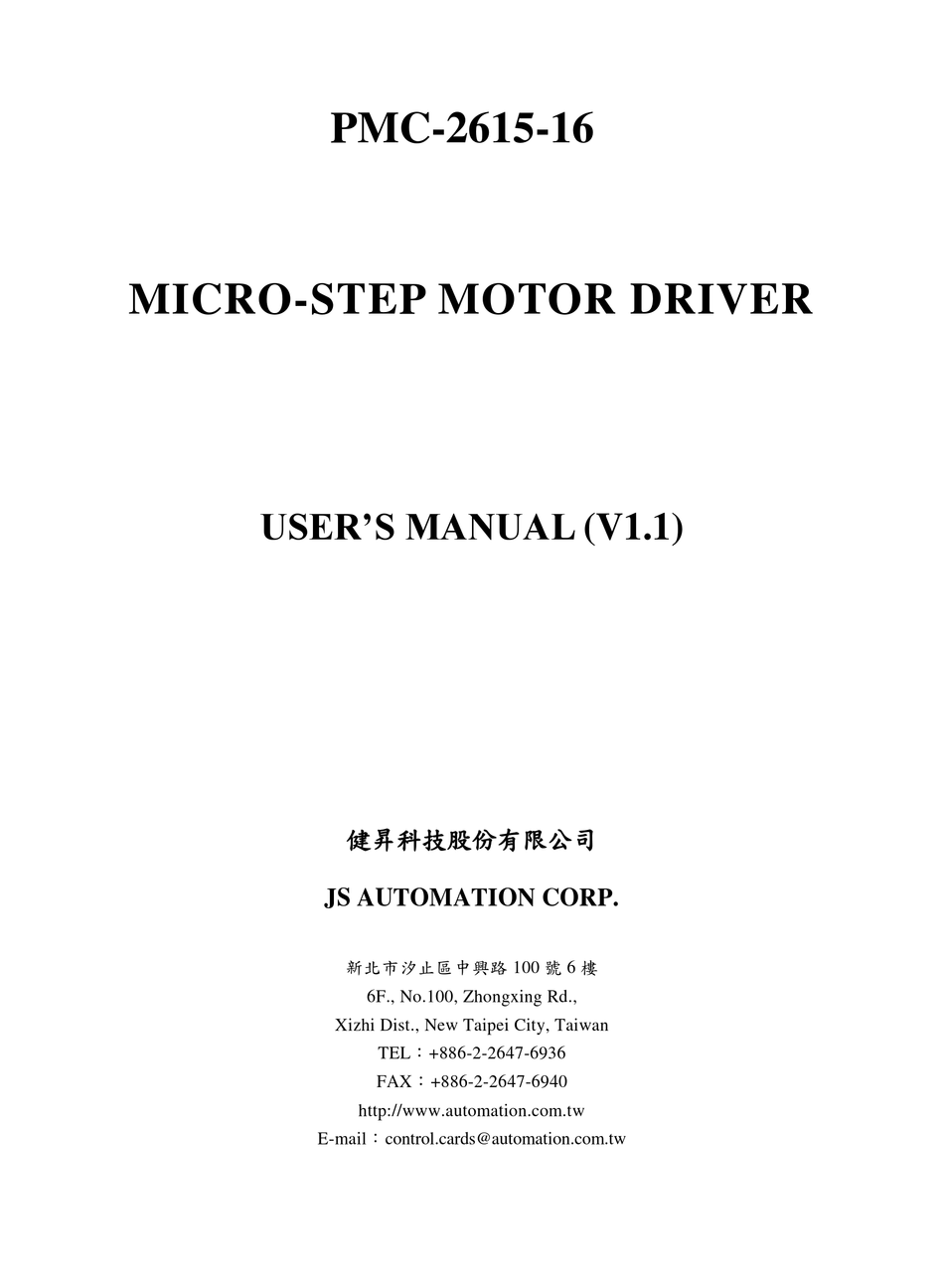

- Page 1 PMC-2615-16 MICRO-STEP MOTOR DRIVER USER’S MANUAL (V1.1) 健昇科技股份有限公司 JS AUTOMATION CORP. 新北市汐止區中興路 100 號 6 樓 6F., No.100, Zhongxing Rd., Xizhi Dist., New Taipei City, Taiwan TEL：+886-2-2647-6936 FAX：+886-2-2647-6940 http://www.automation.com.tw E-mail：control.cards@automation.com.tw...
- Page 2 Correction record Version Record Add Correction record and Warranty...
- Page 3 Contents Features ............................4 Specifications ..........................4 I/O Functions ..........................5 LED indicator ..........................6 CONTROL SIGNAL ........................6 Wiring Diagrams ..........................7 Dimension ............................7...
- Page 4 The PMC-2615-16 is warranted against defects in materials and workmanship for a period of one year from the date of shipment, as evidenced by receipts or serial no. on board. JS automation Corp. will, at its option, repair or replace product that proves to be defective during the warranty period. This warranty includes parts, labor and shipping costs of returning.
- Page 5 1 Features PWM constant current source Micro-step for 200，400，800，1600 steps Build in auto power down mode Wide range DC power input 12VDC ~ 36VDC 2 Specifications Model PMC2615 Power source DC12V to DC36V, 4A(min) Driving Mode PWM Switching, unipolar with Constant Current Driving Maximum Current 1.5A/Phase 200，400，800，1600 pulse/rev, selectable Resolution...
- Page 6 3 I/O Functions RUN ：RUN current adjustment Motor current while running. STOP：STOP current adjustment Only valid for ACD is enabled. While ACD function enabled and the pulse train is stopped for more than 0.5s, the motor current will decrease to the adjustment value. J3X Connectors：...
- Page 7 S1 Switch： 1. 1P /2P mode ‧1P mode: Pulse (PLS) and direction (DIR) controls the motion operation. ‧2P mode: Clockwise(CW) and counter- clockwise(CCW) controls the motion operation. 2. ACD, auto current down Auto current down while no pulse in. Use this function to reduce the heat of step motor, but if you need to hold the torque while stand by , switch off to disable this...
- Page 8 6 Wiring Diagrams PMC2615 is a unipolar constant current driver, use a 6 wire or 8 wire motor is required. 8wire connection 6wire connection Notes on wiring: *For a stable operation, power supply of DC12V ~DC36V 4A (minimum) is required. *Be sure to power off while motor is being wired.
