JS Automation AIO6328 User Manual

Analog i/o and digital i/o card pci-104
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

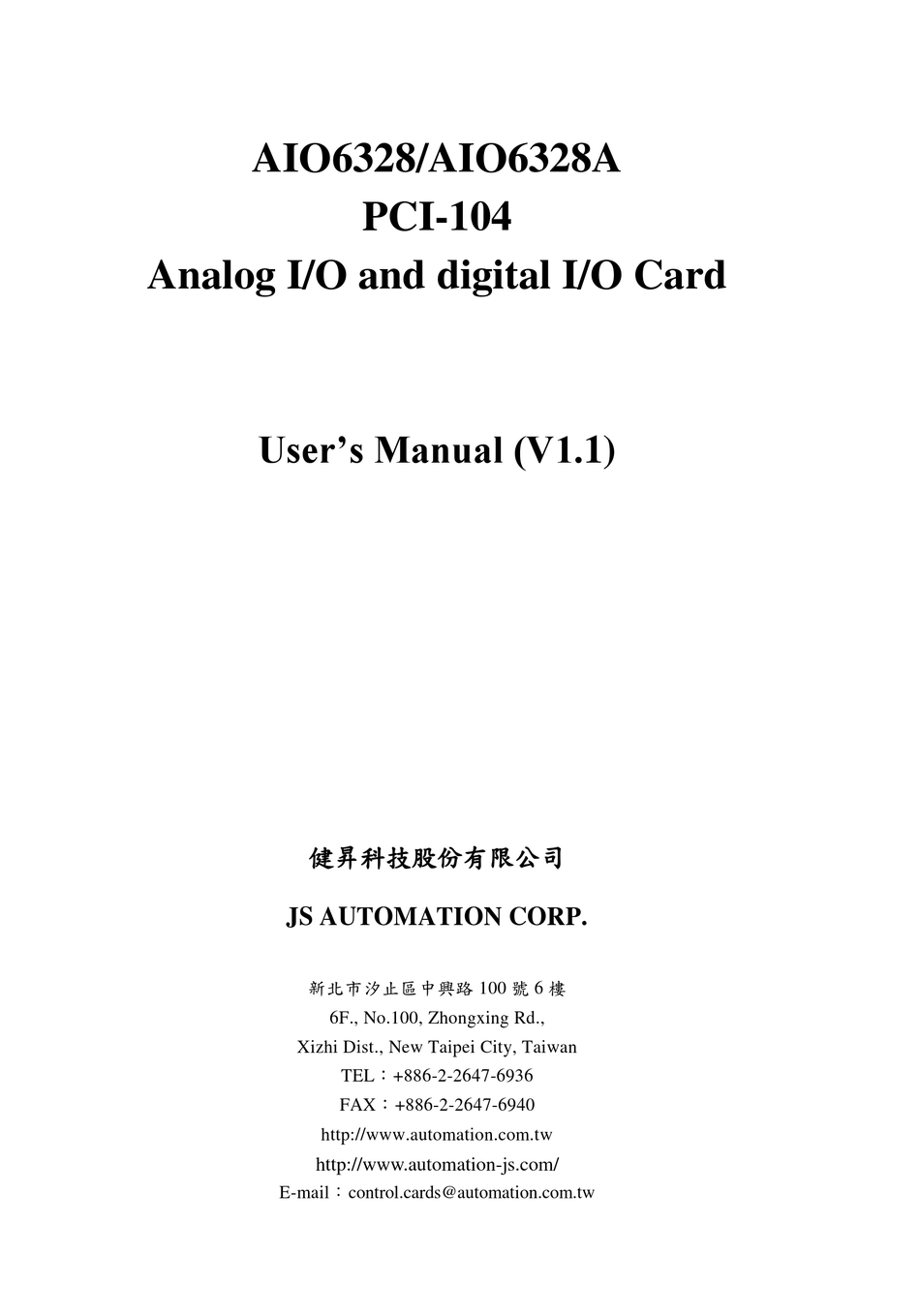

AIO6328/AIO6328A
PCI-104
Analog I/O and digital I/O Card
User's Manual (V1.1)
健昇科技股份有限公司
JS AUTOMATION CORP.
新北市汐止區中興路 100 號 6 樓
6F., No.100, Zhongxing Rd.,
Xizhi Dist., New Taipei City, Taiwan
TEL：+886-2-2647-6936
FAX：+886-2-2647-6940
http://www.automation.com.tw
http://www.automation-js.com/
E-mail：control.cards@automation.com.tw

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AIO6328 and is the answer not in the manual?

Questions and answers

Related Manuals for JS Automation AIO6328

Summary of Contents for JS Automation AIO6328

  • Page 1 AIO6328/AIO6328A PCI-104 Analog I/O and digital I/O Card User’s Manual (V1.1) 健昇科技股份有限公司 JS AUTOMATION CORP. 新北市汐止區中興路 100 號 6 樓 6F., No.100, Zhongxing Rd., Xizhi Dist., New Taipei City, Taiwan TEL：+886-2-2647-6936 FAX：+886-2-2647-6940 http://www.automation.com.tw http://www.automation-js.com/ E-mail：control.cards@automation.com.tw...
  • Page 2 Correction record Version Record firmware version 1.0 up 1. Modify Notes on hardware installation 2. Add Warranty 3. Change orientation of JM1 connector (chapt 5.1) 4. Add specifications to each input and output (chapt. 6) 5. Add chapt. 7 External wiring diagram...

  • Page 3: Table Of Contents

    ADP9201DIN Din rail mounted wiring board ..............10 JS51053 for JM1 20PM Din rail mounted dummy wiring board ......... 11 5. PIN definitions ..........................12 AIO6328 JM1 PIN definitions ....................12 AIO6328 JM2 PIN definitions ....................12 6. I/O interface diagram ........................13 Input diagram ........................
  • Page 4 Notes on hardware installation Please follow step by step as you are installing the control cards. 1. Be sure your system is power off. 2. Be sure your external power supply for the wiring board is power off. 3. Plug your control card in socket, and select the righ CardID and CLK. (The bottom layer of stack please select CardID=0, CLK=0) 4.
  • Page 5 The AIO6328/A are warranted against defects in materials and workmanship for a period of two years from the date of shipment, as evidenced by receipts or serial no. on board. JS automation Corp. will, at its option, repair or replace product that proves to be defective during the warranty period. This warranty includes parts, labor and shipping costs of returning.

  • Page 6: Forward

    1. Forward Thank you for your selection of JAC’s product AIO6328 8 analog inputs and 2 analog outputs ANALOG I/O card with extra photo isolated 8 digital input and 8 digital output for PCI-104 embedded system. AIO6328 is a 12bit (AIO6328A 16bit) resolution in the analog input port for 0~5V, 0~10V, -5V~+5V and –10V ~+10V ranges, the analog output is 13 bit (AIO6328A 17bit) resolution...

  • Page 7: Features

    2. Features 2.1 Main card Analog Input Block 2.1.1 Single end 8 channel or differential 4 channels 2.1.2 Dynamic range selection: 0~5V, -5V~+5V, 0~10V, -10V ~ +10V 2.1.3 Software configurable Single end, differential or mixed 2.1.4 High common mode voltage for differential input 2.1.5 Resolution: 12 bit, (option 16 bit, AIO6328A) Analog Output Block 2.1.6 2 channel DA for -10V ~ +10V...

  • Page 8: Specifications

    3. Specifications 3.1 AIO6328 Main card Analog Input Block 3.1.1 Channel: single end 8 channel(max), differential 4 channel(max) 3.1.2 Range: 0~5V, -5V~+5V, 0~10V, -10V ~ +10V 3.1.3 Type: single end, differential or mixed 3.1.4 Common mode voltage: up to 10V 3.1.5 Resolution: 12 bit, (option 16 bit, AIO6328A)
  • Page 9 3.1.18 Output rating (with wiring board) : 3A @250Vac, 30Vdc (Relay) 1A @ 24Vdc (PMOS) 2A @ 240Vac (SSR) 3.1.19 Sink current : 500mA(peak) per channel (on card) 3.1.20 Switching speed : 20KHz(max)(MOS out only) Main Card General 3.1.21 Card ID : 0~3 3.1.22 Insulation resistance : 100M Ohm (min) at 1000Vdc 3.1.23 Isolation voltage : 2500Vac 1Min (digital block only) 3.1.24 Connector : One 20-pin male flat-cable connector...

  • Page 10: Din Rail Mounted Wiring Board

    3.2 Din rail mounted wiring board ADP9201DIN Din rail mounted wiring board for DIO 3.2.1 External Supply : DC 24V ± 4V 3.2.2 Input : 8 with LED indicator 3.2.3 Output : ADP9201DIN(R) : 8 relays (3A @250Vac, 3A @30Vdc) with LED indicator ADP9201DIN(S) : 8 SSR (2A @240Vac) with LED indicator ADP9201DIN(P) : 8 PMOS (Source 1A @24Vdc) with LED...

  • Page 11: Layout And Dimensions

    4. Layout and dimensions 4.1 AIO6328 Main card 4.2 ADP9201DIN Din rail mounted wiring board...

  • Page 12: Js51053 For Jm1 20Pm Din Rail Mounted Dummy Wiring Board

    4.3 JS51053 for JM1 20PM Din rail mounted dummy wiring board...

  • Page 13: Pin Definitions

    5. PIN definitions 5.1 AIO6328 JM1 PIN definitions Descriptions Descriptions +24Ve +24Ve EXTG EXTG EXT_OUT07 EXT_IN07 EXT_OUT06 EXT_IN06 EXT_OUT05 EXT_IN05 EXT_OUT04 EXT_IN04 EXT_OUT03 EXT_IN03 EXT_OUT02 EXT_IN02 EXT_OUT01 EXT_IN01 EXT_OUT00 EXT_IN00 5.2 AIO6328 JM2 PIN definitions Descriptions Descriptions 14 AGND (analog ground)

  • Page 14: I/O Interface Diagram

    6. I/O interface diagram 6.1 Input diagram For input: IN07 ~ IN00 I/P specification: ** (min) ** (max) ** (max) ** (min) 6.2 Output diagram Type 1 output : For output: OUT07 ~ OUT00 (On main card) O/P specification: ** (max) 48Vdc ** (max) 1.6V...
  • Page 15 Type 3 output : For output: OUT07~OUT00 (PMOS) O/P specification: 24Vdc ** (max) ** (cont) 1A source Type 4 output : For output: OUT07~OUT00 (SSR) O/P specification: Vo ** (max) 240Vac 2A (rms) Io ** (cont) Notes: ** V , input voltage ** V , High-level input voltage ** V...

  • Page 16: External Wiring Diagram

    7. External wiring diagram wiring board with PMOS output wiring board with Relay output wiring board with SSR output...

  • Page 17: Hardware Settings

    8. Hardware settings 8.1 CARD ID setting Please refer the section 4.1 for CardID setting, you can jump to any of the 4 positions according to the stack layer of the card. The bottom layer (closest to the CPU board) should jump to 0 and select CLKS to 0.

  • Page 18: Applications

    9. Applications 9.1 Analog input section: For measurement of analog signal such as: - temperature - voltage - current - flow - light - ..Note: The analog signal should be pre-processed to the acceptable range of the card. 9.2 Analog output section: For control or signal generation such as: - inverter speed - servo motor speed...

  • Page 19: Ordering Information

    10. Ordering information PRODUCT DESCRIPTIONS AIO6328 12 bit Analog I/O and Digital I/O PCI-104 Module AIO6328A 16 bit Analog I/O and Digital I/O PCI-104 Module JS51053 DIN rail mounted dummy wiring board (for JM1) ADP9201DIN(R) DIN rail mounted wiring board with 16 I/O LED indicators and relay...
