SpaceControl User Manual
Updated October 4, 2021

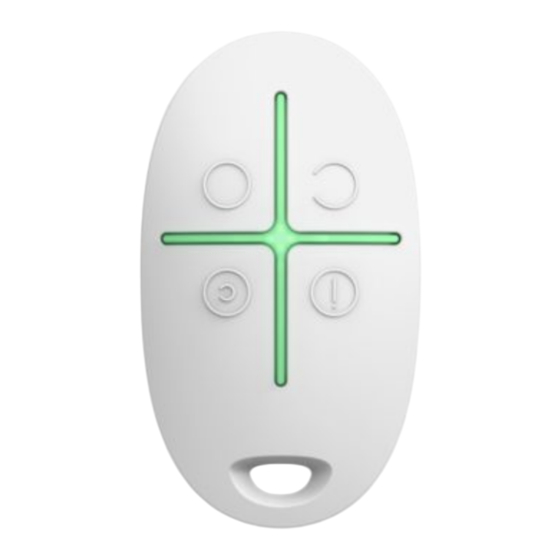

SpaceControl is a miniature key fob with accidental click protection. It allows to set
the Ajax security system in the armed, night or disarmed mode, as well as switch
on an alarm.
As it is the two-way communication, you will know whether the system has
received the SpaceControl command.
Operating as part of the Ajax security system, the key fob is connected to the
hub
via the protected
Jeweller
protocol. In addition, the key fob can be used to control
any third party security central unit through the
uartBridge
or
ocBridge Plus
integration module.
The key fob is set up through the iOS and Android-based
mobile app for
smartphones
.
Buy key fob SpaceControl

Advertisement

loading
Need help?

Need help?

Do you have a question about the SpaceControl and is the answer not in the manual?

Questions and answers

Related Manuals for AJAX Systems SpaceControl

Summary of Contents for AJAX Systems SpaceControl

  • Page 1 SpaceControl User Manual Updated October 4, 2021 SpaceControl is a miniature key fob with accidental click protection. It allows to set the Ajax security system in the armed, night or disarmed mode, as well as switch on an alarm. As it is the two-way communication, you will know whether the system has received the SpaceControl command.

  • Page 2: Functional Elements

    Functional elements 1. System arming button 2. System disarming button 3. Night mode button 4. Panic button (activates the alarm) 5. Light indicators 6. The hole for attaching the key fob Buttons can be assigned when using a key fob with hub and Ajax uartBridge. At the moment, the feature of modi�cation of commands (and deactivation) of the key fob buttons when using with the Ajax hub is not available.
  • Page 3 • To turn off the actuated security system (siren), press the disarming mode button on the keyfob. Accidental click protection is available on the SpaceControl with �rmware version 5.54.1.0 and higher. Operational Indication The key fob reports its status only after any button is pressed.
  • Page 4 green 4 times The command has not been delivered as the security system is too far away and cannot Firmware version 3.18 and higher receive the command The central LED lights up red brie�y Two LEDs next to the button light up green twice. The key fob has been removed from the security Then 4 key fob LEDs blink green 6 times system devices...
  • Page 5 Connecting the key fob to the Ajax Security System Connection to hub Before starting connection: 1. Following the hub instruction recommendations, install the Ajax application your smartphone. Create an account, add the hub to the application, and create at least one room. 2.
  • Page 6 To connect the key fob to a third party security central unit using the Ajax uartBridge Ajax ocBridge Plus integration module, follow the recommendations in the manual of the respective device. States 1. Devices 2. SpaceControl Parameter Value Battery level of the device. Two states available: • ОК • Battery discharged...
  • Page 7 Firmware version of the key fob. It is not possible Firmware to change the �rmware Device ID Device identi�er Setting Up the key fob 1. Devices 2. SpaceControl 3. Settings Setting Value First �eld Device name, can be edited Selecting the virtual room to which the device is...
  • Page 8 user’s name. • The key fob has the same security mode management rights as the user. Panic Turning on/off the panic button Choosing the method of protection against accidental clicks: • Off — protection is turned off • Long press — in order for the key fob to transmit the command to the hub, you should hold the button down for more than 1.5 seconds...
  • Page 9 Do not use for cleaning SpaceControl any substances containing alcohol, acetone, gasoline and other active solvents. The pre-installed battery provides up to 5 years of operation of the key fob during normal use (one arming and disarming of the security system per day). More frequent use can reduce battery life.

  • Page 10: Complete Set

    65 × 37 × 10 mm Weight 13 g Service life 10 years Security Grade 2, Environmental Class III in Certi�cation conformity with the requirements of EN 50131-1, EN 50131-3, EN 50131-5-3 Compliance with standards Complete Set 1. SpaceControl 2. Battery CR2032 (pre-installed)
  • Page 11 If the device does not work correctly, you should �rst contact the support service — in half of the cases, technical issues can be solved remotely! The full text of the warranty User Agreement Technical support: support@ajax.systems...
