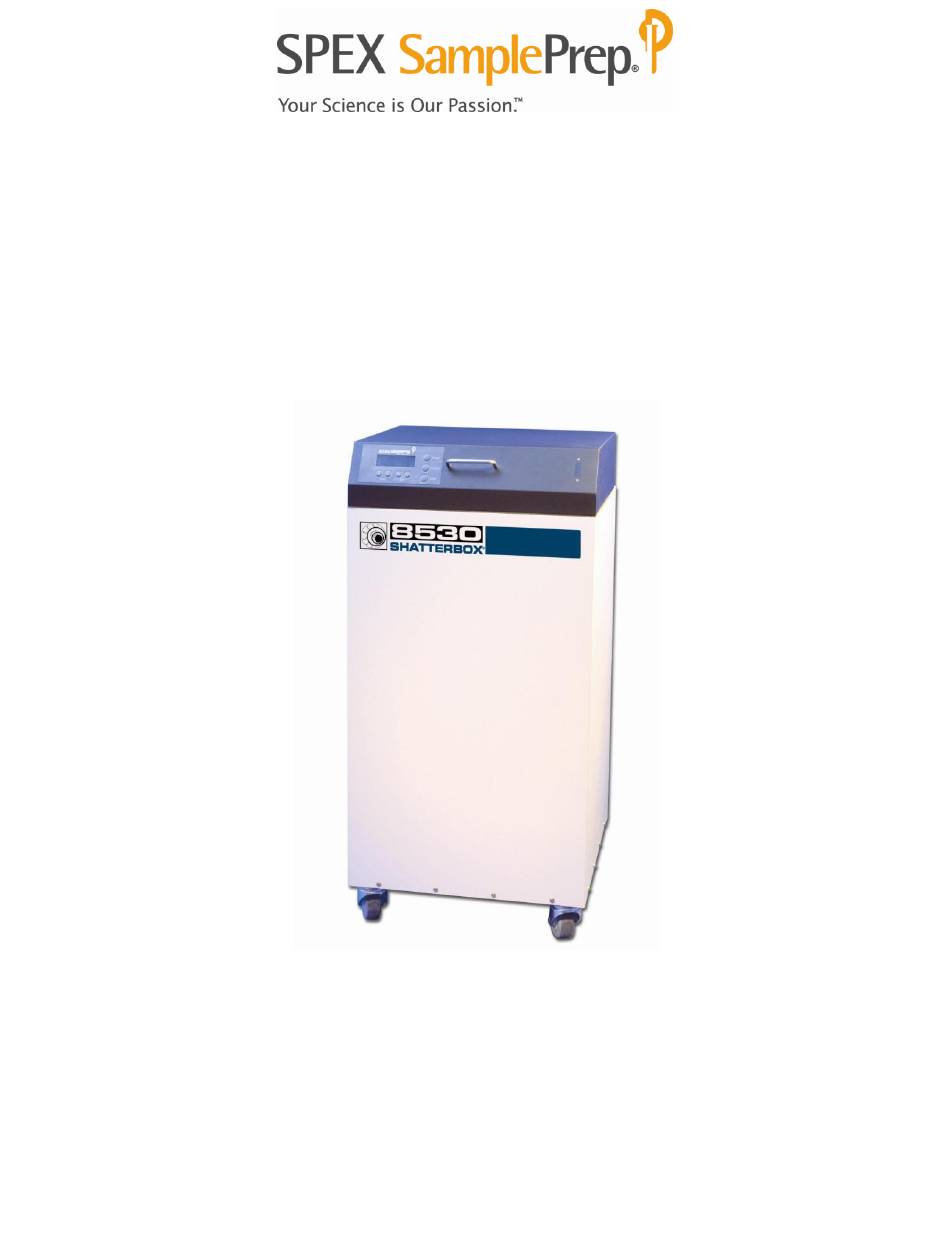

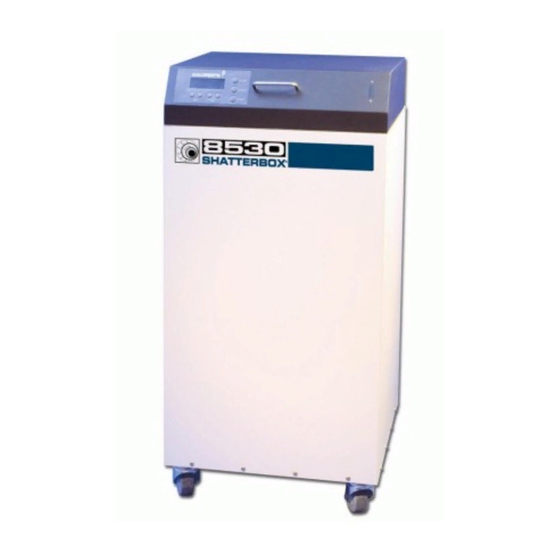

- Page 1 15 Liberty St., Metuchen, NJ 08840 732-623-0465 www.spexsampleprep.com ® 8530 ENCLOSED SHATTERBOX OPERATING MANUAL For 8530-115 and 8530-230 Shatterbox with Serial Numbers 07000 and higher; this manual is Part No. 87017...
-
Page 2: Table Of Contents
Assembly Diagrams & Parts ....................23 10.0 Troubleshooting Guide ..................... 26 11.0 Warranty ........................... 27 11.1 Product Specifications ...................... 27 11.2 To Arrange a Return Shipment ..................27 12.0 Contact Us ......................... 28 Page 2 of 28 SPEX SamplePrep LLC January 2010... -
Page 3: Introduction
8530 Shatterbox 1.0 INTRODUCTION Since its introduction three decades ago, the SPEX SamplePrep Shatterbox has become the most popular “swing mill” in America. Now as then, it remains the most efficient way to pulverize up to 100 ml in volume (or 100 g in weight) of brittle material to analytical fineness. -
Page 4: Specifications
5 seconds after motor shuts off to allow mechanism to come to a stop Recommended operating conditions: indoors, in ambient air, temperature between 40 F. (4 – 35 C), humidity between 0% and 95%. Page 4 of 28 SPEX SamplePrep LLC January 2010... -
Page 5: Unpacking
If the drive belts have come off, replace them as pictured in Diagram B: in a diamond pattern, two belts up and two belts down. Spin the arms by hand. Page 5 of 28 SPEX SamplePrep LLC January 2010... - Page 6 The 230V power cord conforms to European wiring color codes. If everything seems to be okay, proceed to the next section “SETTING UP.” Control Panel Electrical Inlet Module at Rear Lid Assembly Casters 8530 Shatterbox Page 6 of 28 SPEX SamplePrep LLC January 2010...
-
Page 7: Setting Up
When the start button is pushed, it activates a solenoid that locks down the lid. Not until the lid locks down will the Shatterbox motor start. At the end of a run when the timer reaches Page 7 of 28 SPEX SamplePrep LLC January 2010... -
Page 8: Cam-Action Clamp
When the clamp is perfectly adjusted, the lever will meet moderate resistance as it is pushed through the top of its arc, then close easily. Page 8 of 28 SPEX SamplePrep LLC January 2010... -
Page 9: Controls
NOTE: Before setting the timer and operating the 8530 Shatterbox, clamp a grinding container firmly in place. Also, while learning how to operate the Shatterbox you may want to use a grinding container with its puck/ring grinding elements removed. Page 9 of 28 SPEX SamplePrep LLC January 2010... - Page 10 50 is the maximum setting for seconds; increasing the seconds past 50 will take the setting to zero. If a button is pushed and immediately released, it will change its setting by one unit. Page 10 of 28 SPEX SamplePrep LLC January 2010...
- Page 11 STOP to clear ERROR: LATCH FAILURE from the display, and restore the timer setting. Only when the timer setting is restored can the Shatterbox be started again. Page 11 of 28 SPEX SamplePrep LLC January 2010...
-
Page 12: Operation
1. Switch the power on. The timer display will light up. Initially it will flash the SPEX SamplePrep logo and then display SPEX SAMPLEPREP/8530 SHATTERBOX, but this will shortly change to the default timer setting of 3:00. -
Page 13: Grinding Containers
Alumina Ceramic: is harder than tungsten carbide, but is comparatively lightweight. It grinds fairly slowly with low contamination levels and is subject to fracture. Major elements: Al. Minor elements: Si, Mg, and Ca. Page 13 of 28 SPEX SamplePrep LLC January 2010... - Page 14 If grinding is not satisfactory but the sample is not caking, try increasing the grinding time or decreasing the sample size, or both. If caking occurs, consult the Handbook of Sample Preparation and Handling for information about grinding aids. Page 14 of 28 SPEX SamplePrep LLC January 2010...
- Page 15 B is ground and discarded, and the container cleaned again. Now it should be possible to grind a portion of sample B without contaminating it with sample A. Page 15 of 28 SPEX SamplePrep LLC January 2010...
- Page 16 Shatterbox requires a fixed routine to accomplish this: a uniform sample weight, grinding aid, grinding time, container, etc. You are welcome to telephone SPEX SamplePrep LLC at 1-800 522-7739 or 732-549-7144 to discuss your particular application. Page 16 of 28 SPEX SamplePrep LLC January 2010...
-
Page 17: Maintenance
Install the new drive belts in a diamond pattern, two up and two down as in Diagram B. Spin the funnel (Diagram A, item 23) by hand to make sure the two arms spin together freely, and the drive belts are parallel. Page 17 of 28 SPEX SamplePrep LLC January 2010... -
Page 18: Clamp Mechanism Maintenance And Replacement
(Diagram A, item 9) are on the same side of the funnel, otherwise the gyrating motion of the Shatterbox will be unbalanced. Page 18 of 28 SPEX SamplePrep LLC January 2010... -
Page 19: Replacing The Rubber Columns
PLEASE NOTE: If you have any questions about the operation and maintenance of your 8530 Shatterbox, please contact our specialists by phone at 1-800 LAB-SPEX (522-7739) or 732-549-7144, or by e-mail at sampleprep@spexcsp.com. Page 19 of 28 SPEX SamplePrep LLC January 2010... -
Page 20: Accessories: Grinding/Mixing Vials
Complete with: Dish, Lid, Puck, & Gasket 8521 Large Hardened Steel Grinding Container Outer Dimensions (dia. x height): 20.3 x 8.2cm Weight: 13kg Recommended Load: 30-100ml Complete with: Dish, Lid, Ring, Puck, & Gasket Page 20 of 28 SPEX SamplePrep LLC January 2010... - Page 21 Customer Service at Special elastomer O-ring. Note: Drive belts should 800-522-7739 or 732- always be replaced as a set to ensure proper 549-7144 operation, 4 required. For models 8500 and 8530 only. Page 21 of 28 SPEX SamplePrep LLC January 2010...
-
Page 22: Parts List & Item Locator
8530 Shatterbox This page contains restricted content. To download the full unabridged version of this manual, please visit our website at www.spexsampleprep.com or call Customer Service at 732-623-0645. Page 22 of 28 SPEX SamplePrep LLC January 2010... -
Page 23: Assembly Diagrams & Parts
8530 Shatterbox This page contains restricted content. To download the full unabridged version of this manual, please visit our website at www.spexsampleprep.com or call Customer Service at 732-623-0465. Page 23 of 28 SPEX SamplePrep LLC January 2010... - Page 24 8530 Shatterbox This page contains restricted content. To download the full unabridged version of this manual, please visit our website at www.spexsampleprep.com or call Customer Service at 732-623-0465 Page 24 of 28 SPEX SamplePrep LLC January 2010...
- Page 25 8530 Shatterbox This page contains restricted content. To download the full unabridged version of this manual, please visit our website at www.spexsampleprep.com or call Customer Service at 732-623-0465. Page 25 of 28 SPEX SamplePrep LLC January 2010...
-
Page 26: Troubleshooting Guide
8530 Shatterbox This page contains restricted content. To download the full unabridged version of this manual, please visit our website at www.spexsampleprep.com or call Customer Service at 732-623-0465. Page 26 of 28 SPEX SamplePrep LLC January 2010... -
Page 27: Warranty
8530 Shatterbox This page contains restricted content. To download the full unabridged version of this manual, please visit our website at www.spexsampleprep.com or call Customer Service at 732-623-0465. Page 27 of 28 SPEX SamplePrep LLC January 2010... -
Page 28: Contact Us
Tel: +44 (0) 208 204 6656 Fax: +44 (0) 208 204 6654 Website: www.spexcertiprep.co.uk Outside the United States, contact the SPEX SamplePrep representative from whom you bought your equipment. A list of our current representatives is on our website, above. Page 28 of 28...
