- Page 1 15 Liberty Street ∙ Metuchen, NJ ∙ 08840 732-623-0465 www.spexsampleprep.com ® 8000M MIXER/MILL OPERATING MANUAL For 8000M-115 and 8000M-230 with Serial Numbers 10115 and higher; this manual is Part No. 87011...
- Page 2 1976 Copyright Act or in writing from the publisher. Requests for permission should be addressed in writing to SPEX SamplePrep LLC, 15 Liberty Street, Metuchen, NJ 08840.
-
Page 3: Table Of Contents
Assembly Diagrams & Parts ....................21 10.0 Trouble Shooting ....................... 25 11.0 Warranty ........................... 26 11.1 Product Specifications ...................... 26 11.2 To Arrange a Return Shipment ..................26 12.0 Contact Us ......................... 27 Page 3 of 27 SPEX SamplePrep LLC January 2010... -
Page 4: Introduction
The length of that swing is the same as the internal length of a standard 8000 series vial, about two inches. With each swing the balls impact against one end of the vial, simultaneously milling the sample to a powder and blending it. -
Page 5: Specifications
Controls: Start and Stop buttons; programmable timer with digital display, factory-set for 100 minute range. Adjustable to 175 hour range with special chip, but extended use may void warranty. (Call SPEX SamplePrep Sales for terms & conditions.) Page 5 of 27... -
Page 6: Unpacking

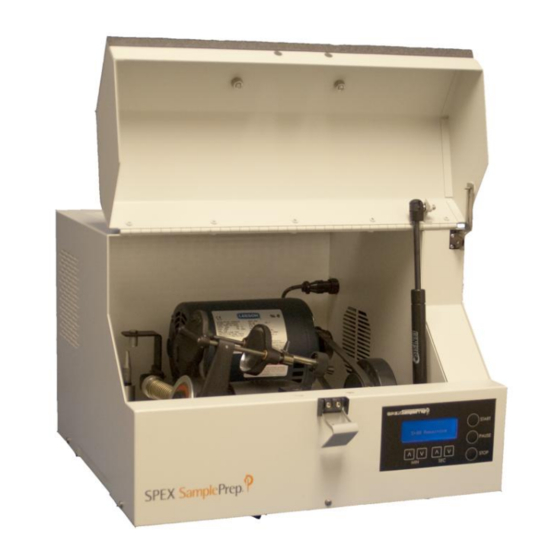

Lid Assembly Electrical Inlet Module at Rear Shipping bolts underneath the unit Control Panel must be removed (see Section 4.0). Figure 1 - 8000M Mixer/Mill Page 6 of 27 SPEX SamplePrep LLC January 2010... -
Page 7: Setting Up
The locking tab is on the shaft between the knob and the clamp. Whenever the clamp is closed on a vial, lock the clamp by tightening the locking tab clockwise against the clamp crossbar. When opening the clamp, first loosen the locking tab. Page 7 of 27 SPEX SamplePrep LLC January 2010... -
Page 8: Ce Safety Features
PAUSED is displayed when the pause button has been pressed; RUN COMPLETE is displayed for 5 seconds after the run is over;, and ERROR: LATCH FAILURE is displayed when the lid interlock cannot engage. Page 8 of 27 SPEX SamplePrep LLC January 2010... - Page 9 4.4.2 Setting the Timer When power is switched on, the timer will first display: SPEX SamplePrep 8000 Series MIXER/MILL The timer will then display the default timer setting of five minutes (5:00). Assuming a grinding vial is clamped into the mill and the lid is down, pressing START will initiate a run of 5 minutes.
- Page 10 STOP to clear ERROR LATCH FAILURE from the display, and restore the timer setting. Only when the timer setting is restored can the Mixer/Mill be started again. Page 10 of 27 SPEX SamplePrep LLC January 2010...
-
Page 11: Operation
After the unit is plugged in, switch the power on by means of the rocker switch. The timer will briefly display “SPEX SamplePrep” and “8000 Series Mixer/Mill”. This will then change to show the default timer setting of 5:00. -
Page 12: Mixing And Grinding
This will limit contamination. An inappropriate choice of balls, such as tungsten carbide balls in an alumina container, can damage the container. Page 12 of 27 SPEX SamplePrep LLC January 2010... - Page 13 Also be careful not to drop these caps on edge, as if they are knocked out of round they can be very difficult to use. Page 13 of 27 SPEX SamplePrep LLC January 2010...
-
Page 14: Maintenance
If you have any questions about the operation and maintenance of your 8000D Mixer/Mill, please contact our specialists by phone at 1-800 LAB-SPEX (522-7739) or 732-623-0465, or by e-mail at sampleprep@spexcsp.com Page 14 of 27 SPEX SamplePrep LLC January 2010... -
Page 15: Changing The Fuses
If not, the fuse holder is upside down and must be turned around before attempting to operate the Mixer/Mill. Figure 3 – Fuse Compartment Page 15 of 27 SPEX SamplePrep LLC January 2010... -
Page 16: Accessories
For wet or dry grinding/mixing. Vial size 2 1/4 in. diameter x 2 1/2 in. Tungsten carbide-lined body, two screw-on tungsten carbide-lined caps, two 7/16 in. tungsten carbide balls, eight corprene gaskets. Grinding load 3-10ml, mixing load approximately 25ml. Page 16 of 27 SPEX SamplePrep LLC January 2010... - Page 17 Includes screw-on cap and O- ring for wet or dry use, two 1/2 in. and four 1/4 in. steel balls. Grinding load 3-10ml; mixing load approximately 25ml. Page 17 of 27 SPEX SamplePrep LLC January 2010...
- Page 18 3117 Hardened Tool Steel Vial Set 1/2 in. diameter x 1 in. long. Made of Worpliss tool steel. Includes slip-on cap and 1/4 in. steel ball. Grinding load 0.2-0.6ml, mixing load 1ml. Page 18 of 27 SPEX SamplePrep LLC January 2010...
- Page 19 5/16 in. tungsten carbide balls. Grinding load 0.5-1.5ml; mixing load 3ml. 6135 Plastic Vial 6134 Plastic Vial 8002 Plastic Vial To Order any additional accessories, call Customer Service at 800-522-7739 Ext. 465 Page 19 of 27 SPEX SamplePrep LLC January 2010...
-
Page 20: Parts List & Item Locator
8000M Mixer/Mill This page contains restricted content. To download the full unabridged version of this manual, please visit our website at www.spexsampleprep.com or call Customer Service at 732-623-0465. Page 20 of 27 SPEX SamplePrep LLC January 2010... -
Page 21: Assembly Diagrams & Parts
8000M Mixer/Mill This page contains restricted content. To download the full unabridged version of this manual, please visit our website at www.spexsampleprep.com or call Customer Service at 732-623-0465. Page 21 of 27 SPEX SamplePrep LLC January 2010... - Page 22 8000M Mixer/Mill This page contains restricted content. To download the full unabridged version of this manual, please visit our website at www.spexsampleprep.com or call Customer Service at 732-623-0465. Page 22 of 27 SPEX SamplePrep LLC January 2010...
- Page 23 8000M Mixer/Mill This page contains restricted content. To download the full unabridged version of this manual, please visit our website at www.spexsampleprep.com or call Customer Service at 732-623-0465. Page 23 of 27 SPEX SamplePrep LLC January 2010...
- Page 24 8000M Mixer/Mill This page contains restricted content. To download the full unabridged version of this manual, please visit our website at www.spexsampleprep.com or call Customer Service at 732-623-0465. Page 24 of 27 SPEX SamplePrep LLC January 2010...
-
Page 25: Trouble Shooting
8000M Mixer/Mill This page contains restricted content. To download the full unabridged version of this manual, please visit our website at www.spexsampleprep.com or call Customer Service at 732-623-0465. Page 25 of 27 SPEX SamplePrep LLC January 2010... -
Page 26: Warranty
11.2 To Arrange A Return Shipment We want you to be happy with whatever you purchase from SPEX SamplePrep LLC. Please bring any problem to our attention, but please DO NOT RETURN any item before contacting us for a Return Authorization Number and instructions. -
Page 27: Contact Us
Tel: +44 (0) 208 204 6656 Fax: +44 (0) 208 204 6654 Website: www.spexcertiprep.co.uk Outside the United States and Europe, contact the SPEX SamplePrep representative from whom you bought your equipment. A list of our current representatives is on our website, www.spexsampleprep.com.
