This blower is a CSA-approved component compatible with
these Hearth & Home Dynamics Vent Free heaters only:
READ THIS MANUAL BEFORE INSTALLING AND USING THIS APPLIANCE.
IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION
WARNING
MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY, OR LOSS OF LIFE.
THIS PRODUCT IS ONLY FOR USE WITH THE MODELS SPECIFIED IN THIS MANUAL BY
WARNING
THE MANUFACTURER. ANY OTHER USAGE OR INSTALLATION NOT SPECIFIED IN THIS
MANUAL IS PROHIBITED.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Model:
HHFAN100
HHSTDF26I / HHFPDF32F1
!
CAUTION —FOR YOUR SAFETY
BLOWER
User's Manual and
Operating Instructions
HH2104FAN, 210420
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hearth & Home HHFAN100
Summary of Contents for Hearth & Home HHFAN100

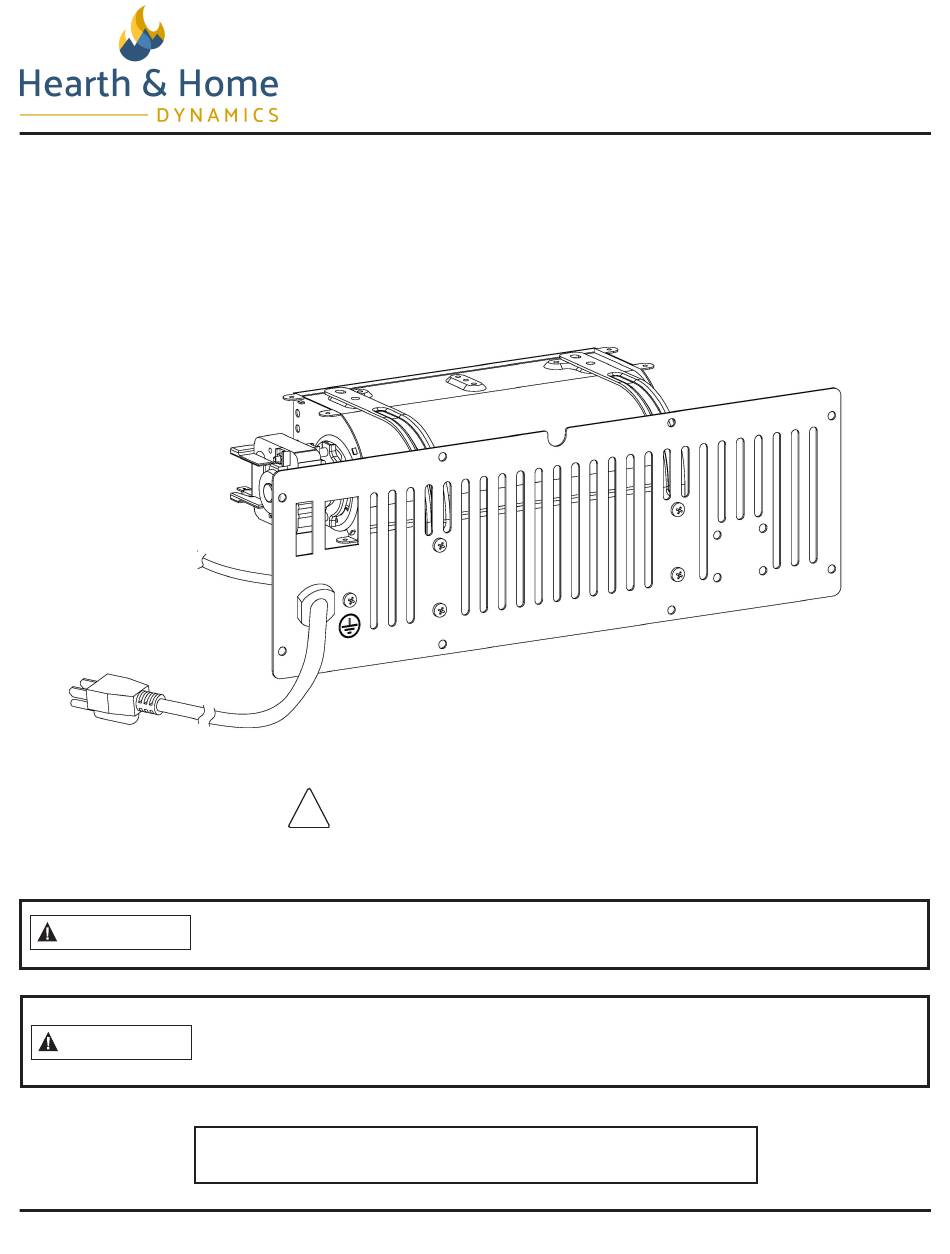

- Page 1 BLOWER User’s Manual and Operating Instructions Model: HHFAN100 This blower is a CSA-approved component compatible with these Hearth & Home Dynamics Vent Free heaters only: HHSTDF26I / HHFPDF32F1 CAUTION —FOR YOUR SAFETY READ THIS MANUAL BEFORE INSTALLING AND USING THIS APPLIANCE.
- Page 2 Safety Information IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions may result in possible injury to persons or a fire hazard and will void the warranty. Electrical Grounding Instructions: This appliance accessory is equipped with a WARNING three-prong (grounding) plug for your protection against shock hazard and must be plugged directly into a properly grounded three-prong receptacle.
- Page 3 Installation Before installing the appliance accessory, make sure all parts are present. Compare parts with the package contents listed below. If any part is missing or damaged, do not attempt to assemble, install, or operate the appliance. Contact customer service for replacement parts at 1-888-534-1578. Package Contents: •...
- Page 4 Installation (cont.) Attach blower thermal switch bracket to blower panel with two screws provided (see Fig. 4). Fig. 4—Attaching Thermal Switch Bracket Use upper set of holes Use lower set of holes for HHSTDF26I Stove for HHFPDF32F1 Fireplace 4. Route wire harness through channel in the back corner of the heater. There are two observation ports on the back of the heater to assist in routing the wire harness.
- Page 5 Installation (cont.) 5. Route the wire harness as shown through the opening in the control panel (see Fig. 6). Connect the wires to the switch in the order identified in the wiring diagram . Fig. 6—Connecting Switch HHSTDF26I HHFPDF32F1 6. Snap Switch into opening in control panel, making sure to position the Auto function on top. Wire clips and a cable tie are provided to help keep the wire harness away from the hot firebox and burner (see Fig.
- Page 6 Electrical Wiring Diagram NOTE: If any of the original wire supplied with the heater must be replaced, a wire of at least an equal temperature rating must be used. Refer to the above wiring diagram if replacing the original wire. Label all wires prior to disconnection when servicing controls.
- Page 7 WARRANTY KEEP THIS WARRANTY Always specify model and serial numbers when communicating with customer service. We reserve the right to amend these specifications at any time without notice. The only warranty applicable is our standard written warranty. We make no other warranty, expressed or implied. LIMITED WARRANTY HEARTH &...
