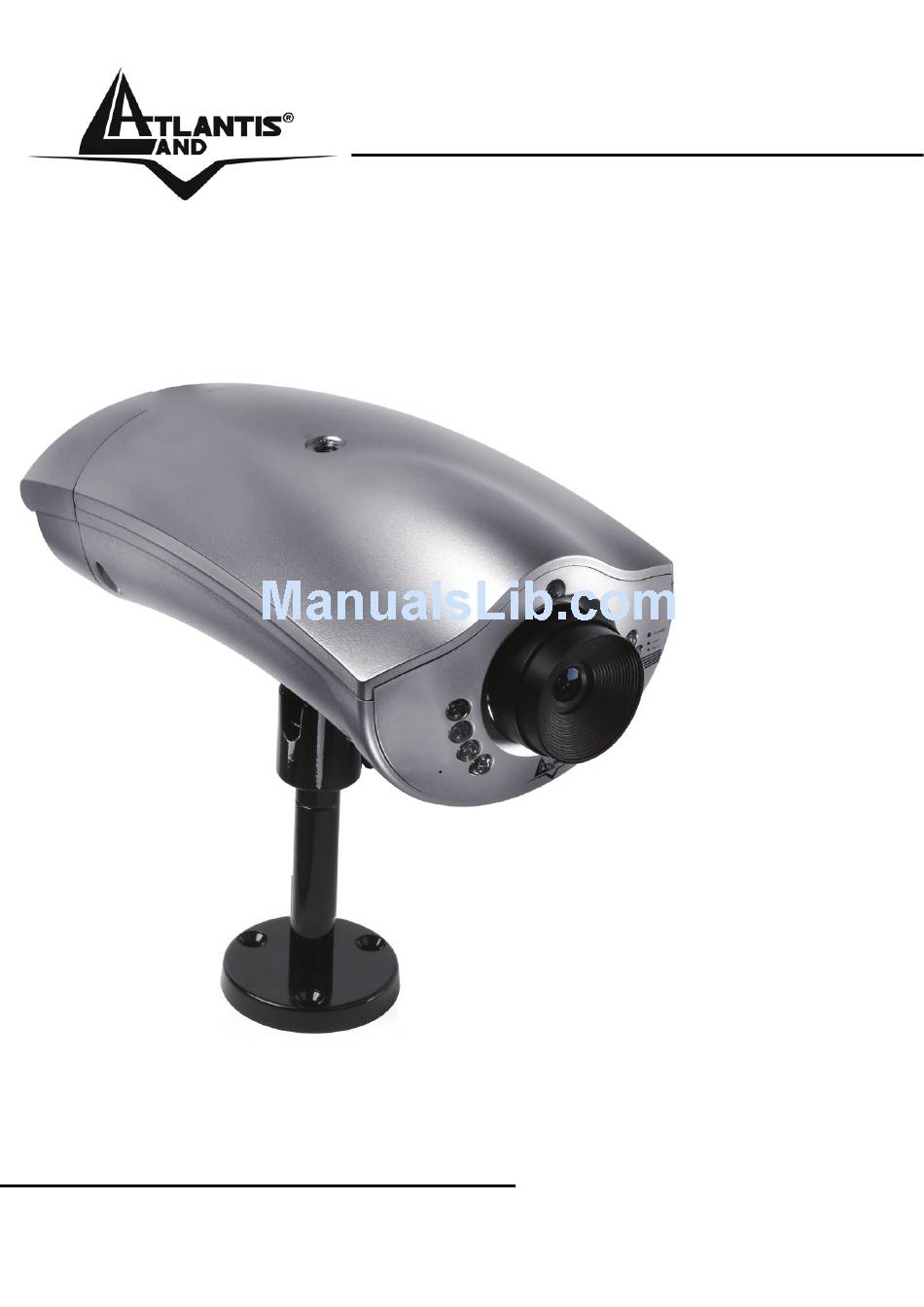

- Page 1 NetCamera NV IP Security Night Vision Camera A02-IPCAM3 MANUAL A02-IPCAM3_ME01 Where solutions begin ISO 9001:2000 Certified Company...
- Page 3 Dieses Produkt ist durch die Atlantis Land 3 Jahre Fast-Swap Garantie gedeckt. Für weitere Informationen, beziehen Sie sich bitte auf Web Site www.atlantis-land.com. ESPAÑOL Este producto esta cubierto por Atlantis Land con una garantía Fast-Swap de 3 años. Para mayor información diríjase a nuestro sitio Web www.atlantis-land.com.
- Page 4 The award of the information is facultative, but its lack will prevent ATLANTIS LAND® from starting the Guarantee process requested. Registration on the web site www.atlantis-land.com within 15 days from the purchase of the product dismiss the customer from showing a valid proof of purchase (Sale Receipt or Invoice) in case of the request of intervention.
-
Page 5: Table Of Contents
INDEX Chapter 1 ... 9 1.1 An Overview of NetCamera NV ... 9 1.2 System Requirements... 9 1.3 Package Contents... 10 Chapter 2 ... 11 2.1 Cautions for NetCamera NV ... 11 2.2 The Front LEDs... 12 2.3 The Rear Ports... 14 2.4 Assembling the Stand and Connecting to a Network... - Page 6 A.4 General Questions... 53 APPENDIX B: Trouble Shooting ... 55 APPENDIX C: Adjusting the Camera Focus... 59 APPENDIX D: GPIO ... 60 APPENDIX E: Glossary of Terms ... 66 APPENDIX F: Technical Features ... 76 A02-IPCAM3_ME01(V1.0 December 2006) NetCamera NV...
- Page 7 Windows™ 98SE/2000/ME/XP are trademarks of Microsoft® Corp. Pentium is trademark of Intel. All copyright reserved. The Atlantis Land logo is a registered trademark of Atlantis Land SpA. All other names mentioned mat be trademarks or registered trademarks of their respective owners.
- Page 8 NetCamera NV CE Mark Warning This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. CE in which Countries where the product may be used freely: Germany, UK, Italy, Spain, Belgium, Netherlands, Portugal, Greece, Ireland, Denmark, Luxembourg, Austria, Finland, Sweden, Norway and Iceland.
-
Page 9: Chapter 1
NetCamera NV Chapter 1 Introduction This manual is think for an advanced utilization of NetCamera NV; for this reason, you can find explanation of any functions supported by product. For fast configuration, please referee to Quick Start Guide. 1.1 An Overview of NetCamera NV NetCamera NV is the ideal solution for sending videos, remote video surveillance and for the transmission of images in real-time over your Intranet or the Internet. -
Page 10: Package Contents
Local Area Network: 10Base-T Ethernet or 100Base TX Fast Ethernet CPU: Intel Celeron 1.5GHz or above (Intel Pentium 4 is preferred) Memory Size: 128 MB (256 MB recommended) VGA card resolution: 800x600 or above Internet Explorer 5.0 or above (ActiveX) 1.3 Package Contents Unpack the package and check all the items carefully. -
Page 11: Chapter 2
Place the NetCamera NV on a stable surface. Only use the power adapter that comes with the package. Do NOT upgrade firmware on any Atlantis Land product over a wireless connection. Failure of the device may result. Use only hard-wired network connections. -
Page 12: The Front Leds
2.2 The Front LEDs Power Meaning Lights when power ON Network activity indicator Flashes when sending/receiving data NetCamera NV... - Page 13 Night Vision Light Sensor Microphone Furthermore, thanks its 8 integrated Infrared sensors, the NetCamera NV’s automatic Day/Night functionality will change to Infrared mode as it becomes dark Light Sensor (Don’t cover this Led) Microphone for environmental sound recording Use of audio or video equipment for recording the image or voice of aperson without their knowledge and consent is prohibited in certain states orjurisdictions.
-
Page 14: The Rear Ports
2.3 The Rear Ports Port Network Cable GPIO Connectors Meaning Ethernet port with connections, connect this port to switch/hub Its back panel contains 3 pairs of connectors (2 x DI input and 1 x DO output) NetCamera NV 10/100Mbps Fast Ethernet... - Page 15 NetCamera NV Connect the Power Adapter DC plug to the AP’s power DC-IN jack Please check the attached pircture in order to obtain more info about GPIO port.
-
Page 16: Assembling The Stand And Connecting To A Network
2.4 Assembling the Stand and Connecting to a Network Ensure the camera is fixed securely otherwise it may fall and cause injury. The camera is not waterproof and should not be mounted outside or in a position where it could become wet. Connect the power adapter to the DC-IN socket on the camera as shown then check Power Led. - Page 17 The IP camera can be connected to an Ethernet network using the RJ-45 port as shown. Connect the camera to an Ethernet hub or switch using a standard cable. You can also connect the camera directly to a computer using the supplied cable. Use only the power adapter with the camera.
-
Page 18: Chapter 3
The NetCamera NV can be configured with your Web browser. The web browser is included as a standard application in the following operation systems, UNIX, Linux, Mac OS, Windows 95/98/NT/2000/Me, and etc. The product provides a very easy and user-friendly interface for configuration. 3.1 Before Configuration This section describes the configuration required by LAN-attached PCs that communicate with theNetCamera NV, either to configure the device or for network... -
Page 19: Windows 95/98/Me
3.1.1 Windows 95/98/ME Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and choose the Configuration tab. Select TCP / IP -> NE2000 Compatible, or the name of any Network Interface Card (NIC) in your PC. Click Properties. -
Page 20: Windows Xp
3.1.4 Windows XP Go to Start / Control Panel (in Classic View). In the Control Panel, double-click on Network Connections. Double-click Local Area Connection In the LAN Area Connection Status window, click Properties. Select Internet Protocol (TCP/IP) and click Properties. Select the Use the following IP address radio buttons (EG IP=192.168.1.2 and subnet Mask=255.255.255.0). -
Page 21: Browser Configuration
3.3 Browser configuration Open the web browser, enter the local port IP address of this NetCamera NV, which default at 192.168.1.1, and click “Go” to get the login page. Enter the default IP Address in the Address bar At the configuration homepage, the left navigation pane where bookmarks are provided links you directly to the desired setup page, including: NetCamera NV Enter the default... -
Page 22: Configuration Settings
Please refer to the appendix on how to install ActiveX. • At the top click This site might require the following ActiveX Control: ´ATL3.0:VCView´ from ´Atlantis Land SpA ´. Click here to install... • Click Install ActiveX Control... •... - Page 23 For more detailed instructions on configuring and usingthe NetCamera NV, please refer to the online manual. The computer’s IP address must correspond with the camera’s IP address in the same segment for the two devices to communicate (E.G. IP=192.168.1.2 and Subnet Mask=255.255.255.0).
-
Page 24: Chapter 4
Enter your User Name and password. The default are admin / atlantis. Please refer to the appendix on how to install ActiveX. • At the top click This site might require the following ActiveX Control: ´ATL3.0:VCView´ from ´Atlantis Land SpA ´. Click here to install... • Click Install ActiveX Control... •... - Page 25 To access the settings menus, do the following: Click the button The computer’s IP address must correspond with the camera’s IP address in the same segment for the two devices to communicate. If you are denied to enter the Web Configuration Utility, the following warning message will appear on the screen.
- Page 26 NetCamera NV There are 3 sub menus in the menu sidebar: Home, Basic Setting and Advanced Setting. Home Page Basic Settings Advanced Settings...
-
Page 27: Basic Settings
4.1 Basic Settings Read this section to learn about all the settings and options under the Basic Setting sub menu. There are five main screens, accessed via the tabs at the top of the screen: • System • Network • User •... -
Page 28: Configuration
NetCamera NV Configuration Click the Configuration tab to access the configuration status screen: Here is displayed all system information, including firmware ver-sion and device name, and is where you can configure date and time options. Choose to either Sync with Time Server or Sync with PC Time. Check the radio button for the setting you wish to use.If you select Sync with Time Server, choose your time zone, enter NTP server details, along with another server if neces-sary. - Page 29 NetCamera NV If You meet problems, please follow these instructions: NTP Server=pool.ntp.org or 128.138.140.44 NTP Server=192.5.41.40 Click the Submit button to save your settings and to update the system date and time.
-
Page 30: Firmware
Click the Sfoglia(Browse) button and locate the folder where the firmware update is stored. Click the Upgrade button to upgrade the firmware. Do NOT upgrade firmware on any Atlantis Land product over a wireless connection. Failure of the device may result. Use only hard- wired network connections. - Page 31 NetCamera NV Please pay attention. In case electrical shutdown, during this procedure, this product could be not usable. When uploading software to theNetCamera NV, it is important not to interrupt the Web browser by closing the window or loading a new page.
-
Page 32: Others
NetCamera NV Others Here you can reset and restore original camera settings. Click the Restore to Factory Default button to reset all parameters to original factory settings. Click the Remote Reboot button to restart the camera. -
Page 33: Network
4.1.2 Network The Network submenu allows you to configure all system-related settings. There are 3 main screens, accessed via the tabs at the top of the screen: • Ethenet • PPPoE • Dynamic DNS NetCamera NV... -
Page 34: Ethernet
NetCamera NV Ethernet Click the Ethernet tab to access the ethernet settings screen: Here you can configure all settings related to your Ethernet and DNS & HTTP port setup. Under IP Setting and DNS Configuration, either enter the settings manually or select the DHCP radio button to obtain the addresses via DHCP. -
Page 35: Pppoe
NetCamera NV PPPoE Click the PPPoE tab to access the PPPoE settings screen: Here you can configure all PPPoE connection settings.If you connect to your network via PPPoE, check the Enable PPPoE checkbox and enter your User Name, password and MTU. Click the Submit button to save all changes. The system will begin to connect via PPPoE. - Page 36 NetCamera NV Dynamic DNS client can works correctly only if PPPoE is activated.
-
Page 37: Ddns
DDNS Click the DDNS tab to access the DDNS settings screen: Here you can configure all DDNS connection settings. Go to www.dyndns.org to register a domain name and obtain a username and password. Enter this domain name, username, and password in the DDNS settings screen. -
Page 38: User
NetCamera NV 4.1.3 User The User submenu enables you to set up users and administra-tors for the system. Under User Authorization, check Enable User Check if you wish to run a login process every time you access the system. Click the Submit button to confirm this setting. -
Page 39: Video
4.1.4 Video The Video submenu enables you to configure all video settings: Under Profile & Options, you can alter various options: • Camera Location: Enter the camera location. Click the Submit button to confirm this setting. • Display Options: Check the checkbox to show the date, time, and camera location on the display screen. - Page 40 • Frame Rate: Enter the required frame rate. Click the Submit button to confirm this setting. Under Image Parameters, you can alter image output options. Select the image compression rate, and resolution you require from the dropdown boxes. Make any adjustments for brightness, contrast, saturation, sharpness, hue and gamma of the image using the + or - buttons.
-
Page 41: Monitor
NetCamera NV 4.1.5 Monitor The 4-port monitor setting screen appears: Enter the IP address, port, login and password of each camera you wish to view and check the Enable checkbox. Click the Submit button to confirm your settings. Click the Home tab on the menu sidebar to return to the main screen, then click the 4- Port Viewer to switch to 4-port viewing mode. -
Page 42: Advanced
NetCamera NV 4.2 Advanced The camera will function fine after the Basic configuration, however, you may wish to explore more advanced options. This section explains each parameter and setting procedures for advanced configuration of the camera. Move your mouse onto the Advanced button, and it will automatically pop up a submenu bar as below. - Page 43 NetCamera NV All uploade files on FTP are in .jpg format.
-
Page 44: Mail
NetCamera NV 4.2.2 Mail The Mail submenu enables you to configure all mail server set-tings: When mail alerting is enabled, the camera sends a still image to a specified email address every time the alert is triggered (see “Breach Manager” for details on how to activate this option). - Page 45 NetCamera NV...
-
Page 46: Gpio
NetCamera NV 4.2.3 GPIO The GPIO submenu enables you to configure all DI sensor and DO settings: External DI sensors can be attached via the GPIO port at the rear of the camera. The external sensor can be normally open, or normally closed. A normally open sensor is like an open switch that closes when triggered. -
Page 47: Tcp Message
NetCamera NV 4.2.4 TCP Message The Tcp Message submenu enables you to configure all tcp message settings: Enter the Server IP address, port and message subject. Check the Enable checkbox and click the Submit button to confirm all settings. -
Page 48: Breach Manager
4.2.5 Breach Manager The Breach Manager submenu enables you to configure all breach alert and motion detection settings: You can configure the system to capture images when either the motion sensors, DI1 or DI2 sensors are activated. To set a breach alert, do the following: •... - Page 49 NetCamera NV The Status window lists all configured alert details; the first column lists the alarm trigger type, the second lists the action type, and the third displays whether the alert is enabled or disabled.
-
Page 50: Chapter 5
Support 5.1 Support If you have any problems with the IP Night Vision Camera, please consult this manual. If you have any other questions you can contact the Atlantis Land company directly at the following address: Atlantis Land SpA Viale De Gasperi, 122 20017 Mazzo di Rho(MI) Tel: +39. -
Page 51: Appendix A: Frequently Asked Questions
Ethernet NetCamera NV and the computer or hub. Check for faulty Ethernet cables. Make sure your computer’s Ethernet card is working properly. If these steps fail to correct the problem, contact Atlantis Land SpA for assistance. NetCamera NV cable connections... -
Page 52: Web
A.2 WEB I cannot access the web configurator. Steps The web configurator does not display properly. Steps A.3 Login If you forget the password to log in Steps CORRECTIVE ACTION Make sure you are using the correct IP address of the NetCamera NV. -
Page 53: General Questions
A.4 General Questions Question Answer Question Answer Question Answer Question Answer What is an IP Security Night Vision Camera? The IP Security Night Vision Camera is a standalone system connecting directly to an Ethernet or Fast Ethernet network. It is different from the conventional PC Camera, the IP Security Night Vision Camera is an all-in-one system with built-in CPU and web-based solutions providing a low cost solution that can transmit high quality video images for monitoring. - Page 54 Question Answer Question Answer Question Answer Question Answer What network cabling is required for the IP Security Night Vision Camera? The IP Security Night Vision Camera uses Category 5 UTP cable allowing 10 Base-T and 100 Base-T networking. Can the IP Security Night Vision Camera be setup as a PC- cam on the computer? No, the IP Security Night Vision Camera is an IP Security Night Vision Camera used only on Ethernet and Fast Ethernet...
-
Page 55: Appendix B: Trouble Shooting
APPENDIX B: Trouble Shooting This chapter covers potential problems and the corresponding remedies. Question Answer Question Answer I cannot access the IP Security Night Vision Camera from a web browser. The possible cause might be the IP Address for the IP Security Night Vision Camera is already being used by another device. - Page 56 Address of the IP Security Night Vision Camera is within the same subnet as your workstation. Click “Start”, “Setting”, “Control Panel”, and the “Network” icon. Select TCP/IP from the “Network” dialog box and from the “TCP/IP Properties” dialog box click “Specify an IP address”. If the IP Security Night Vision Camera is situated on a different subnet than your workstation, you will not be able to set the IP address from this workstation.
- Page 57 Question Why does the Link LED not light up properly? • Answer • Question Why does the IP Security Night Vision Camera work locally but not externally? • Answer • Question There is bad focus on the IP Security Night Vision Camera, what should be done? You need to adjust the IP Security Night Vision Camera focus Answer...
- Page 58 Question There is poor image quality, how can I improve the image? • Answer • • Question There are no images available through the web browser? The ActiveX might be disabled. If you are viewing the images Answer from Internet Explorer make sure ActiveX has been enabled in the Internet Options menu.
-
Page 59: Appendix C: Adjusting The Camera Focus
APPENDIX C: Adjusting the Camera Focus To help you get the best image quality, keep in mind that while adjusting the NetCamera NV (Adjust by turning clockwise or counter-clockwise )focus you can preview the image quality from your Web browser. You can further adjust the image quality through the Web Configuration under Setup->Basic->Video. -
Page 60: Appendix D: Gpio
NetCamera NV APPENDIX D: GPIO Its back panel contains 3 pairs of connectors (2 input and 1 output) allowing the camera to communicate with different elements of a building, such as electric doors and light switches or security related devices such as alarms. Most of its applications are security. - Page 61 NetCamera NV...
- Page 62 A normally open sensor (NO/COM ) is like an open switch that closes when triggered. In this case the Motion Detection switch on a spot. Please check the maximum Voltage/Ampere (DO): Max 24VDC/1A Max 125VAC /0.5A NetCamera NV...
- Page 63 NetCamera NV For example, entrance guarding (DO)
- Page 64 NetCamera NV For example, entrance guarding (DO and DI)
- Page 65 NetCamera NV...
-
Page 66: Appendix E: Glossary Of Terms
APPENDIX E: Glossary of Terms NUMBERS 10BASE-T is Ethernet over UTP Category III,IV, or V unshielded 10BASE-T twisted-pair media. The two-pair twisted-media implementation of 100BASE-T is 100BASE-TX called 100BASE-TX. An IEEE standard for wireless local area networks. It offers 802.11g transmissions speeds at up to 54 Mbps in the 2.4-GHz band. - Page 67 Bootstrap Protocol is an Internet protocol that can automatically BOOTP configure a network device in a diskless workstation to give its own IP address. Communication Communication message, and medium. In networks, devices and application tasks and processes communicate messages to each other over media.
- Page 68 Domain Name System is an Internet service that translates domain names into IP addresses. Since domain names are alphabetic, they're easier to remember. The Internet however, is really based on IP addresses every time you use a domain name the DNS will translate the name into the corresponding IP address.
- Page 69 intranet pass through the firewall, which examines each message and blocks those that do not meet the specified security criteria. A gateway links computers that use different data formats Gateway together. Groups consist of several user machines that have similar Group characteristics such as being in the same department.
- Page 70 that identifies it to the other nodes. All Internet addresses are IP addresses Internet Protocol is the standard that describes the layout of the basic unit of information on the Internet (the packet) and also details the numerical addressing format used to route the information.
- Page 71 Local Area Network a computer network that spans a relatively small area sharing common resources. Most LANs are confined to a single building or group of buildings. Network Address Translator generally applied by a router, that makes many different IP addresses on an internal network appear to the Internet as a single address.
- Page 72 specific IP address is accessible. It functions by sending a packet to the specified address and waits for a reply. It is primarily used to troubleshoot Internet connections. Point-to-Point Protocol over Ethernet. PPPoE is a specification PPPoE for connecting the users on an Ethernet to the Internet through a common broadband medium, such as DSL or cable modem.
- Page 73 A router is the network software or hardware entity charged with Router routing packets between networks. It is a simple computer that provides resources, such as files or Server other information. The Simple Mail Transfer Protocol is used for Internet mail. SMTP Simple Network Management Protocol.
- Page 74 2 or 10BASE-T networks to attach devices with AUI ports. The User Datagram Protocol is a connectionless protocol that resides above IP in the TCP/IP suite The upper-layer protocol refers to Application Layer protocols such as FTP,SNMP, and SMTP. The USERNAME is the unique name assigned to each person User Name who has access to the LAN.
- Page 75 NetCamera NV Workstation refers to the intelligent computer on the user’s Workstations desktop. This computer may be an Intel-based PC, a Macintosh, or a UNIX-based workstation. The workstation is any intelligent device a user works from.
-
Page 76: Appendix F: Technical Features
NetCamera NV APPENDIX F: Technical Features TECHNICAL FEATURES CMOS Sensor Number of effective pixels: 307200 pixels (VGA) Resolution: 640 x 480 pixel Lens Type: C3 Mount Lens (removable) Focal length: f=3.6mm F-number: F2.0 Focus Extent: 20 cm - ∞ Image (Video Setting) Image compression: MJPEG Frame rate: 30fps@QQVGA, 25fps@QVGA, 15fps@VGA Compression Rate selection: 2 levels... - Page 77 NetCamera NV System Requirements Local Area Network: 10Base-T Ethernet or 100Base TX Fast Ethernet CPU: Intel Celeron 1.5GHz or above (Intel Pentium 4 is preferred) Memory Size: 128 MB (256 MB recommended) VGA card resolution: 800x600 or above Internet Explorer 5.0 or above (ActiveX) Advanced Features Hardware motion detection and send e-mail (with snap shot) when motion detected GPIO: Sensor IN, Alarm Out...
