Page 1: Night Vision

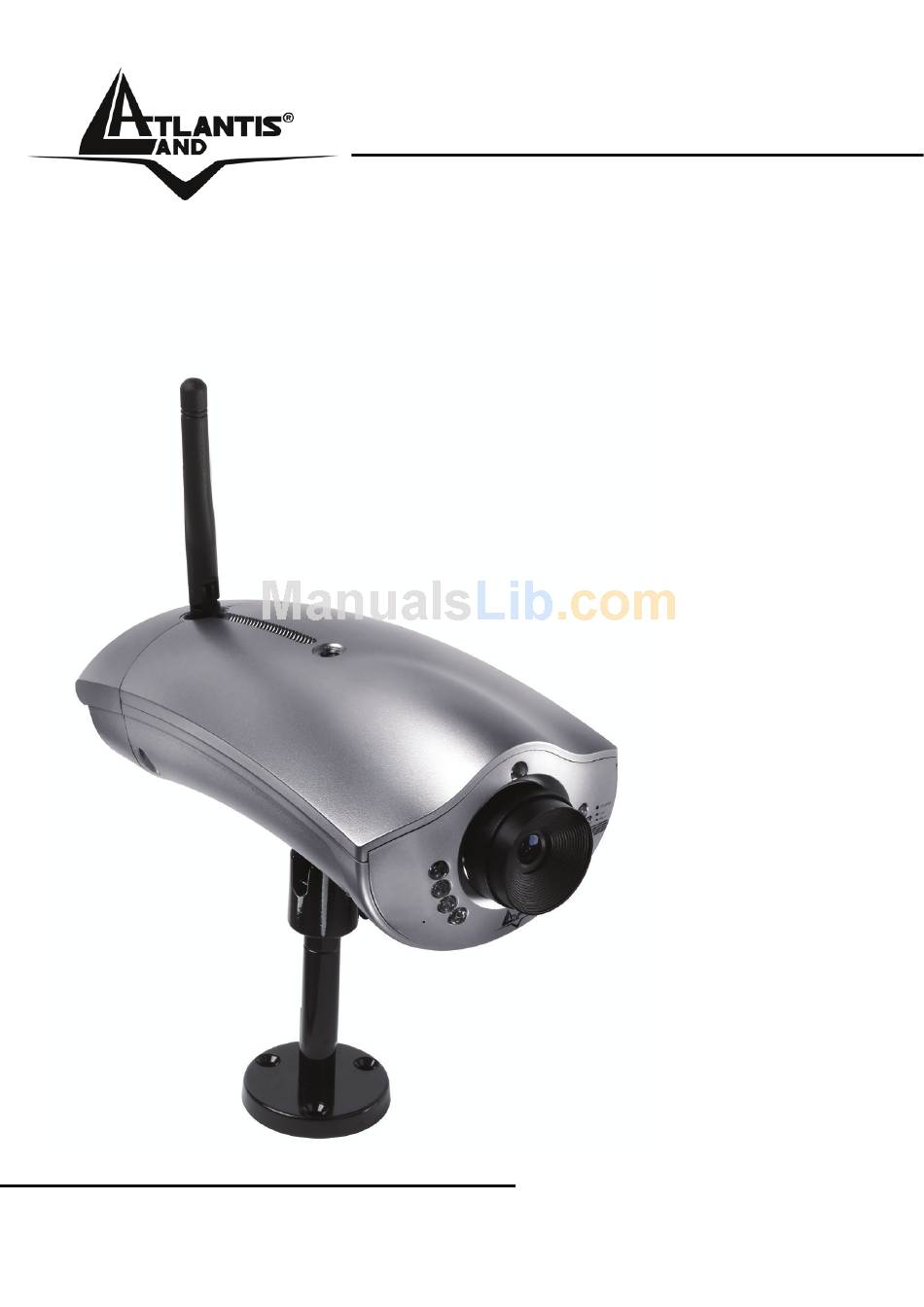

NetCamera NVW IP Security Wireless Night Vision Camera A02-IPCAM4-W54 MANUAL A02-IPCAM4-W54_ME01 Where solutions begin ISO 9001:2000 Certified Company... - Page 2 Dieses Produkt ist durch die Atlantis Land 3 Jahre Fast-Swap Garantie gedeckt. Für weitere Informationen, beziehen Sie sich bitte auf Web Site www.atlantis-land.com. ESPAÑOL Este producto esta cubierto por Atlantis Land con una garantía Fast-Swap de 3 años. Para mayor información diríjase a nuestro sitio Web www.atlantis-land.com.
- Page 3 The award of the information is facultative, but its lack will prevent ATLANTIS LAND® from starting the Guarantee process requested. Registration on the web site www.atlantis-land.com within 15 days from the purchase of the product dismiss the customer from showing a valid proof of purchase (Sale Receipt or Invoice) in case of the request of intervention.
-
Page 4: Table Of Contents
4.1.1 System ... 27 Status ... 28 Log ... 29 Time ... 30 Firmware ... 31 4.1.2 Network ... 33 Ethernet... 34 Wireless ... 36 PPPoE... 41 DDNS ... 42 4.1.3 User... 43 User... 43 Password ... 43 A02-IPCAM4-W54 NetCamera NVW... - Page 5 A.4 General Questions... 57 APPENDIX B: Trouble Shooting ... 62 APPENDIX C: Adjusting the Camera Focus... 67 APPENDIX D: GPIO ... 68 APPENDIX E: Glossary of Terms ... 74 APPENDIX F: Technical Features ... 83 A02-IPCAM4-W54_ME01(V1.0 December 2006) A02-IPCAM4-W54 NetCamera NVW...
- Page 6 Windows™ 98SE/2000/ME/XP are trademarks of Microsoft® Corp. Pentium is trademark of Intel. All copyright reserved. The Atlantis Land logo is a registered trademark of Atlantis Land SpA. All other names mentioned mat be trademarks or registered trademarks of their respective owners.
- Page 7 For more info, consult the website telecom.fr. Location Indoor (no restriction) Outdoor Italy: For more info, consult the website Frequency Band (MHz) 2400-2483,5 2400-2454 2454-2483,5 www.comunicazioni.it A02-IPCAM4-W54 NetCamera NVW www.art- Power (EIRP) 100mW(20dBm) 100mW(20dBm) 10mW(10dBm)
-
Page 8: Chapter 1
Using the web browser of any PC or notebook connected to the Internet (or Intranet), the NetCamera NVW provides the user with a highly intuitive interface to manage and control it remotely, making it the ideal tool for remote monitoring and video surveillance. A02-IPCAM4-W54... -
Page 9: System Requirements
One IP Security Wireless Night Vision Camera One Quick Installation Guide One Installation CDRom wiyh Manuals and Utility One Metal Clip (wall mounting). One DC Power Adapter One RJ-45 Ethernet Cable If any of the above items are missing, please contact your reseller. A02-IPCAM4-W54 NetCamera NVW... -
Page 10: Chapter 2
Place the NetCamera NVW on a stable surface. Only use the power adapter that comes with the package. Do NOT upgrade firmware on any Atlantis Land product over a wireless connection. Failure of the device may result. Use only hard-wired network connections. -
Page 11: The Front Leds
2.2 The Front LEDs Power WLan Meaning Lights when power ON Network activity indicator Flashes when sending/receiving data Network activity indicator Flashes when sending/receiving data A02-IPCAM4-W54 NetCamera NVW... - Page 12 Atlantis disclaims any liability whats oever for any end-user use of the Atlantis product, which fails to comply with applicable state, local, or federal laws. A02-IPCAM4-W54 NetCamera NVW automatic Day/Night...
-
Page 13: The Rear Ports
2.3 The Rear Ports Port Network Cable GPIO Connectors Meaning Ethernet port with connections, connect this port to switch/hub Its back panel contains 3 pairs of connectors (2 x DI input and 1 x DO output) A02-IPCAM4-W54 NetCamera NVW 10/100Mbps Fast Ethernet... - Page 14 NetCamera NVW Connect the Power Adapter DC plug to the AP’s power DC-IN jack Please check the attached pircture in order to obtain more info about GPIO port. A02-IPCAM4-W54...
-
Page 15: Assembling The Stand And Connecting To A Network
360º of rotation and a pan and tilt action. Follow the above steps to mount from the base of the unit, attaching the stand bracket to the mounting point on the base of the unit. A02-IPCAM4-W54 NetCamera NVW... - Page 16 Use only the power adapter with the camera. Using another adapter, not recommended by the manufacturer, may damage the camera and invalidate the warranty. A02-IPCAM4-W54 NetCamera NVW...
-
Page 17: Chapter 3
If not, please refer to MS Windows related manuals. Any TCP/IP capable workstation can be used to communicate with or through the NetCamera NVW. To configure other types of workstations, please consult the manufacturer’s documentation. A02-IPCAM4-W54 NetCamera NVW Chapter 3 Configuration... -
Page 18: Windows 95/98/Me
Double-click LAN Area Connection. In the LAN Area Connection Status window, click Properties. Select Internet Protocol (TCP/IP) and click Properties. Select Use the Following IP Address (EG IP=192.168.1.2 and subnet Mask=255.255.255.0). Click “OK” to finish the configuration. A02-IPCAM4-W54 NetCamera NVW... -
Page 19: Windows Xp
3.2 Default Settings Before you configure thisNetCamera NVW, you need to know the following default settings: • Password: admin • Username: atlantis • Indirizzo IP: 192.168.1.1 • Subnet Mask(255.255.255.0) • Wireless: Connection Type=Infra Contry Region=ETSI(Europe) Channel=6 SSID(ESSID)=NetCameraNVW A02-IPCAM4-W54 NetCamera NVW... -
Page 20: Browser Configuration
Please refer to the appendix on how to install ActiveX. Please refer to the appendix on how to install ActiveX. • At the top click This site might require the following ActiveX Control: ´ATL3.0:VCView´ from ´Atlantis Land SpA ´. Click here to A02-IPCAM4-W54 NetCamera NVW... -
Page 21: Configuration Settings
For more detailed instructions on configuring and usingthe NetCamera NVW, please refer to the online manual. install... • Click Install ActiveX Control... • In the Security Warning window click Install. • The live video will now be streamed. Video Show Area A02-IPCAM4-W54 NetCamera NVW... - Page 22 NetCamera NVW The computer’s IP address must correspond with the camera’s IP address in the same segment for the two devices to communicate (E.G. IP=192.168.1.2 and Subnet Mask=255.255.255.0). A02-IPCAM4-W54...
-
Page 23: Advanced Configuration
“Go” to get the login page. Please refer to the appendix on how to install ActiveX. To access the settings menus, do the following: Click the button on the menu sidebar. A login prompt appears: A02-IPCAM4-W54... - Page 24 IP address in the same segment for the two devices to communicate. If you are denied to enter the Web Configuration Utility, the following warning message will appear on the screen. Please try to enter the correct username and password again, or contact your network administrator. A02-IPCAM4-W54...
-
Page 25: Advanced Settings
NetCamera NVW There are 3 sub menus in the menu sidebar: Home, Basic Setting and Advanced Setting. Home Page Basic Settings Advanced Settings A02-IPCAM4-W54... -
Page 26: Basic Settings
• Video Player 4.1.1 System The System submenu allows you to configure all system-related settings. There are four main screens, accessed via the tabs at the top of the screen: • Status • • Time • Firmware A02-IPCAM4-W54 NetCamera NVW... -
Page 27: Status
NetCamera NVW Status Click the Status tab to access the system status screen: Here is displayed all camera, ethernet and wireless status information, including firmware version and camera name and type. A02-IPCAM4-W54... -
Page 28: Log
Click the Log tab to access the log list screen. Here you can view a log of all recent system activity. Click the PrePage NextPage buttons to move to the previous or next page of the log and the Clear button to clear the log list. A02-IPCAM4-W54... -
Page 29: Time
If you choose Synchronize with computer time, the current time displayed by your PC is shown. Click the Update button to update the system date and time. If you choose Set manually, enter the the date and time manu-ally and click the Update button. A02-IPCAM4-W54... -
Page 30: Firmware
Click the Default button to reset all parameters to original factory settings. If You meet problems, please follow these instructions: NTP Server=pool.ntp.org or 128.138.140.44 Click the Save button to save your settings and the Refresh button to update the system date and time. A02-IPCAM4-W54 NetCamera NVW... - Page 31 Click the Sfoglia(Browse) button and locate the folder where the firmware update is stored. Click the Upgrade button to upgrade the firmware. Do NOT upgrade firmware on any Atlantis Land product over a wireless connection. Failure of the device may result. Use only hard- wired network connections.
-
Page 32: Network
4.1.2 Network The Network submenu allows you to configure all system-related settings. There are four main screens, accessed via the tabs at the top of the screen: • Ethenet • Wireless • PPPoE • Dynamic DNS A02-IPCAM4-W54 NetCamera NVW... -
Page 33: Ethernet
Click the Save button to save your settings. Click the Reload button to clear all fields and reload the page. HTTP Port: This is the port number the router’s embedded web server (for web-based configuration) will use. The default value is the standard HTTP port, 80. Users may A02-IPCAM4-W54... - Page 34 PC within their LAN. For Example: User A changes HTTP port number to 8081. The NetCamera NVW will only allow User A access typing: http://192.168.1.1:8081 in their web browser. A02-IPCAM4-W54...
-
Page 35: Wireless
SSID: SSID (Service Set Identity) is the name assigned to the wireless network. It will auto-detect and display the SSID of wireless network access There are two choices: Infrastructure A “channel” is a range of frequencies to be used in A02-IPCAM4-W54 NetCamera NVW wireless settings Select the... - Page 36 Enter the name in the Pre- Shared Key box, and this name must match the Pre-Shared Key value in the remote device. You can check in the picture an example of configuration in WPA-PSK. A02-IPCAM4-W54 NetCamera NVW...
- Page 37 Infrastructure Networking Mode: The difference between Infrastructure network and Ad-hoc network is that the former one includes an Access Point. In an Infrastructure network, the Access Point can manage the bandwidth to maximize A02-IPCAM4-W54 NetCamera NVW 10*Y 26*Y...
- Page 38 For some European Country, it may have its own domain; users are responsible for ensuring that the channel set configuration is in compliance with the regulatory standards of these countries. You can check under System-Status the status/quality of wireless Link. A02-IPCAM4-W54 NetCamera NVW...
- Page 39 NetCamera NVW A02-IPCAM4-W54...
-
Page 40: Pppoe
PPPoE. Click the Reload button to reload the page. Status details are displayed under Status. Click the Refresh button to update these details at any time. Dynamic DNS client can works correctly only if PPPoE is activated. A02-IPCAM4-W54 NetCamera NVW... -
Page 41: Ddns
When the IP address of the camera changes, it will update its new address to DDNS automatically and the camera can be contacted using a domain name instead of an IP address. DNS status is displayed under Status. Dynamic DNS client can works correctly only if PPPoE is activated. A02-IPCAM4-W54 NetCamera NVW... -
Page 42: User
Click the Remove button to delete the user. You cannot delete the default admin user. Password Click the Password tab to access the password settings screen. Enter your username and new password. Re-confirm the new password and click the Save button to change the password. A02-IPCAM4-W54 NetCamera NVW... -
Page 43: Video
4.1.4 Video The Video submenu enables you to configure all video settings. There are two main screens, accessed via the tabs at the top of the screen: • Video • Audio A02-IPCAM4-W54 NetCamera NVW... -
Page 44: Video
Compression: Select the image compression you require from the drop- down box. • Maximum Frame Rate: Enter the maximum frame rate you require. • P-Frame / I-Frame Ratio: Select the P-Frame / I -Frame ration you require from the drop-down box. A02-IPCAM4-W54 NetCamera NVW... - Page 45 Make any adjustments for brightness, contrast, saturation, and hue of the image using the + or - buttons. Click the Default button to reset to the parameters to their default value. • Vertical Flip: Check to flip the display image vertically. A02-IPCAM4-W54...
-
Page 46: Audio
Check the Enable Audio checkbox to turn audio on or off. When enabled, select the audio bit rate you require from the Bit Rate drop-down box. Select the volume level from the Audio Volume drop-down box. Click the button to confirm all settings. A02-IPCAM4-W54 NetCamera NVW... -
Page 47: Video Player
.av to .avi format. Check the Transform all files in the same folder checkbox to batch convert all files in a folder to AVI format. Click the Transform FTP File to JPEG Format button to convert an FTP file to .jpeg format. Use this function only if Motion Detection is inactive. A02-IPCAM4-W54... -
Page 48: Advanced
Enter your FTP server and server port address, along with your username and password. Click the Save button to save all changes. All uploade files on FTP are in .AV format. In order to convert in JPEG please check section 4.1.5 in this mauual. A02-IPCAM4-W54 NetCamera NVW... -
Page 49: Mail
Settings” for details on how to activate this option). Enter your mail server address, mail sender address, and mail receiver address. Check the radio buttons to enable notification via SMTP and enter your username and password. Click the Save button to save all changes. A02-IPCAM4-W54... -
Page 50: Gpio
Under DO Configuration, select Normal On or Normal Off for the DO alarm. Check the Auto Reset to Normal, after triggering 30 seconds checkbox to automatically reset the alarm 30 seconds after it is triggered. Click the Save button to confirm all settings and the Refresh button to update the page. A02-IPCAM4-W54... -
Page 51: Breach Manager
• Send images to FTP server : The system will send captured images to the FTP server when the device is triggered. • Trigger GPIO output : The system will send a signal to the alarm devices. A02-IPCAM4-W54 NetCamera NVW... - Page 52 NetCamera NVW • Enable motion detection, if it is not enabled: The system will automatically enable motion detection when the device is trig-gered. A02-IPCAM4-W54...
-
Page 53: Chapter 5
5.1 Support If you have any problems with the IP Wireless Night Vision Camera, please consult this manual. If you have any other questions you can contact the Atlantis Land company directly at the following address: Atlantis Land SpA Viale De Gasperi, 122 20017 Mazzo di Rho(MI) Tel: +39. -
Page 54: Appendix A: Frequently Asked Questions
Ethernet NetCamera NVW and the computer or hub. Check for faulty Ethernet cables. Make sure your computer’s Ethernet card is working properly. If these steps fail to correct the problem, contact Atlantis Land SpA for assistance. A02-IPCAM4-W54 NetCamera NVW cable... -
Page 55: Web
The Reset function is to reset the setting back to factory default setting, once you press the “RESET” button within 10 seconds. Before configurating this device , you need to know the following default settings: Password : admin IP Address : 192.168.1.1 Subnet Mask : 255.255.255.0 A02-IPCAM4-W54 NetCamera NVW... -
Page 56: General Questions
300 meters outdoors. The range is limited by the number of walls, ceilings, or other objects that the wireless signals must pass through. depends on the types of materials and background Radio A02-IPCAM4-W54 NetCamera NVW It is different from the The IP... - Page 57 IP addresses? The IP Wireless Security Night Vision Camera can be connected to LAN with private IP addresses. Can the IP Wireless Security Night Vision Camera be installed and work if a firewall exists on the network? A02-IPCAM4-W54 NetCamera NVW...
- Page 58 To an unintended receiver, DSSS appears as low power wideband noise and is rejected (ignored) by most narrowband receivers. Spread-Spectrum during transmission, A02-IPCAM4-W54 NetCamera NVW (FHSS) uses statistical techniques...
- Page 59 GHz, in particular, is being made available worldwide. This presents a truly revolutionary opportunity to place convenient high-speed wireless capabilities in the hands of users around (Wi-Fi) standard. Like 802.11b, 802.11g operates in range and is thus compatible with it. A02-IPCAM4-W54 NetCamera NVW IEEE standard for wireless local...
- Page 60 NetCamera NVW the globe. A02-IPCAM4-W54...
-
Page 61: Appendix B: Trouble Shooting
To fix the problem, run the PING utility. If the utility returns “no response” or similar, the finding is probably correct, then you should proceed as follows:- In Windows 95/98/2000 and Windows NT, double check the IP A02-IPCAM4-W54 NetCamera NVW... - Page 62 The power supply used might be at fault. Confirm that you are Answer using the provided power supply DC 5V for the IP Wireless Security Night Vision Camera and verify that the power supply is well connected. A02-IPCAM4-W54 NetCamera NVW If the...
- Page 63 Might be caused from the firewall protection. Need to check the Internet firewall with your system administrator. The default router setting might be a possible reason. Need to double check if the configuration of the default router settings is required. A02-IPCAM4-W54 NetCamera NVW ESS-ID...
- Page 64 65’000 colors for example at least 16-bit. Applying only 16 or 256 colors on your computer will produce dithering artifacts in the image. The configuration on the IP Wireless Security Night A02-IPCAM4-W54 NetCamera NVW...
- Page 65 Vision Camera image display is incorrect. Through the Web Configuration Image section you need to adjust the image related parameter for improve images such as brightness, contrast, hue and light frequency. Please refer to the Web Configuration section for detail information. A02-IPCAM4-W54 NetCamera NVW...
-
Page 66: Appendix C: Adjusting The Camera Focus
Setup->Basic->Video. Please refer to section 4.1.4 for further details. Direct exposure to sunlight may cause permanent damage to the device. Therefore do not expose the Internet Camera’s lens directly to sunlight. The NetCamera NVW is designed for indoor usage. A02-IPCAM4-W54 NetCamera NVW... -
Page 67: Appendix D: Gpio
Under DI Configuration, select Normal Open or Normal Close for each DI1 and DI2. Click the Submit button to confirm all settings. Under DO Configuration, select Normal Open or Normal Close for the DO alarm. Click the Submit button to confirm all settings. A02-IPCAM4-W54... - Page 68 NetCamera NVW A02-IPCAM4-W54...
- Page 69 A normally open sensor (NO/COM ) is like an open switch that closes when triggered. In this case the Motion Detection switch on a spot. Please check the maximum Voltage/Ampere (DO): Max 24VDC/1A Max 125VAC /0.5A A02-IPCAM4-W54 NetCamera NVW...
- Page 70 NetCamera NVW For example, entrance guarding (DO) A02-IPCAM4-W54...
- Page 71 NetCamera NVW For example, entrance guarding (DO and DI) A02-IPCAM4-W54...
- Page 72 NetCamera NVW A02-IPCAM4-W54...
-
Page 73: Appendix E: Glossary Of Terms
Address Resolution Protocol. ARP is a protocol that resides at the TCP/IP Internet layer that delivers data on the same network by translating an IP address to a physical address. Audio Video Interleave, it is a Windows platform audio and video file format. A02-IPCAM4-W54 NetCamera NVW... - Page 74 IP address. DHCP allows the specification for the service provided by a router, gateway, or other network device that automatically assigns an IP address to any device that requests one four networking, devices A02-IPCAM4-W54 NetCamera NVW components: sender, establish connection receiver,...
- Page 75 Firewalls are frequently used to prevent unauthorized Internet users from accessing private networks connected to the Internet, especially Intranets all messages entering or leaving the example, operates A02-IPCAM4-W54 NetCamera NVW domain name company’s mission-critical...
- Page 76 Internet provides different ways to access private and public information worldwide. To participate in Internet communications and on Internet Internet address Protocol-based networks, a node must have an Internet address that identifies it to the other nodes. All Internet addresses are IP A02-IPCAM4-W54 NetCamera NVW...
- Page 77 Internet without the fear of viruses. It is an object- oriented multi-thread programming best for creating applets and applications for the Internet, Intranet and other complex, distributed network. A02-IPCAM4-W54 NetCamera NVW...
- Page 78 Packet Internet Groper, a utility used to determine whether a PING specific IP address is accessible. It functions by sending a packet to the specified address and waits for a reply. It is primarily used The computers are in different A02-IPCAM4-W54 NetCamera NVW...
- Page 79 Ethernet address, to be translated into an IP address. RJ-45 RJ-45 connector is used for Ethernet cable connections. A router is the network software or hardware entity charged with Router A02-IPCAM4-W54 NetCamera NVW...
- Page 80 On a 10BASE-5 network, the transceiver connects the network adapter or other network device to the medium. Transceivers also can be used on 10BASE- 2 or 10BASE-T networks to attach devices with AUI ports. A02-IPCAM4-W54 NetCamera NVW...
- Page 81 Workstation refers to the intelligent computer on the user’s Workstations desktop. This computer may be an Intel-based PC, a Macintosh, or a UNIX-based workstation. The workstation is any intelligent device a user works from. communicate with each A02-IPCAM4-W54 NetCamera NVW other common carrier...
-
Page 82: Appendix F: Technical Features
LED Indicator: Power LED, LAN, WLan Power Supply: DC 5V, switching type GPIO: 2 x Sensor IN / 1 x Sensor OUT Communication Support Communication: 10/100Mbps Ethernet Communication protocol: HTTP, TCP/IP, UDP, ARP, ICMP,DHCP, PPPoE, DDNS, DNS, FTP A02-IPCAM4-W54... - Page 83 Microsoft and Windows are registered trademarks of Microsoft Corporation All trade names and marks are registered trademarks of respective companies Specifications are subjected to change without prior notice. No liability for technical errors and/or omissions Performance and Throughput are influenced by many factors (interference, noise, environments) A02-IPCAM4-W54...
- Page 84 NetCamera NVW *available with new firmware release A02-IPCAM4-W54...
- Page 85 Atlantis Land S.p.A. Viale De Gasperi, 122 Mazzo di Rho – MI – Italy info@atlantis-land.com sales@atlantis-land.com Where solutions begin ISO 9001:2000 Certified Company...
