IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
Unpack all parts from carton to ensure there are no missing or damaged parts.
If any parts are missing or damaged, do not attempt to assemble or use the product.
CARTON CONTENTS
Part #
Description
A
T-Bar
B
Blade
C
Blade
D
Nut
E
Washer
F
Cap Nut
Oct 8, 2015
ITM. / ART. 463766
Model #: GN2539
For assistance with assembly or installation, parts and customer service, call toll free:
1-855-766-1880 (US, CA / English and Spanish only) Monday - Friday
8:00 am - 5:00 pm (Central Time) or email
Please contact customer service for replacement.
Quantity
Diagram
1pc
1pc
1pc
2pcs
2pcs
2pcs

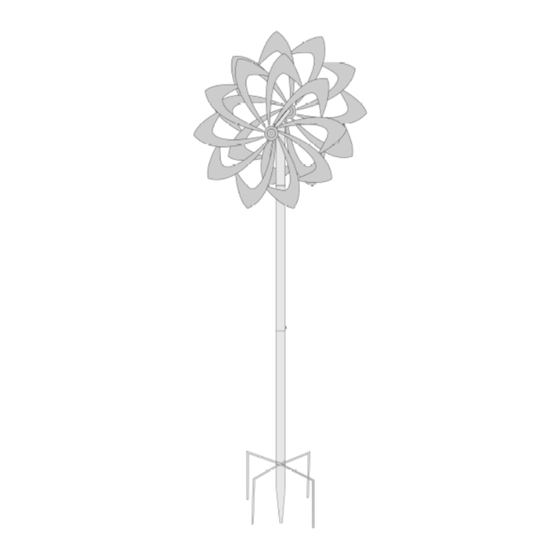

Large Wind Catcher
customerservice@stylecraftlamps.com
Part # Description Quantity
G
Top Bar
Two-Prong
H
Stake
I
Stake Bar
J
"L" wrench
Locking
K
Screw
L
Wrench
Diagram
1pc
1pc
1pc
1pc
1pc
1pc
○
E
Advertisement
Table of Contents
Related Manuals for Style Craft GN2539
Summary of Contents for Style Craft GN2539
- Page 1 ITM. / ART. 463766 Large Wind Catcher Model #: GN2539 For assistance with assembly or installation, parts and customer service, call toll free: 1-855-766-1880 (US, CA / English and Spanish only) Monday - Friday 8:00 am - 5:00 pm (Central Time) or email customerservice@stylecraftlamps.com...
- Page 2 ASSEMBLY INSTRUCTIONS Caution: Using the wrench (F) to tighten parts may cause damage to painted surfaces. If possible, protect parts before wrench tightening. 1. Connect the T-Bar (A) with one of the two Blades (B or C) by inserting one of the threaded ends of the T-bar through the middle hole of the Blade.
- Page 3 TROUBLE SHOOTING 1. If the blade does not spin, make sure the two blades are assembled correctly. The front side of the blades (where the ball bearing is visible) should face outside. The backside of blades (where the ball bearing is covered) should face inside.
