ITM. / ART. 1900704
Model #: GN2735
For assistance with assembly or installation, parts and customer service, call toll free:
1-855-766-1880 (US, Canada / English and Spanish only) Monday - Friday
8:00 am - 5:00 pm (Central Time) or email
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
Unpack all parts from carton to ensure there are no missing or damaged parts.
If any parts are missing or damaged, do not attempt to assemble or use the product.
This item is intended for outdoor domestic use only. Not for commercial use.
CARTON CONTENTS:
Part #
Description
A
T-Bar
C
Washer
E
Small Blade
G
Cap Nut
H
Stake Bar
J
Middle Bar
Please contact customer service for replacement.
Quantity
Diagram
1pc
1pc
1pc
1pc
1pc
1pc

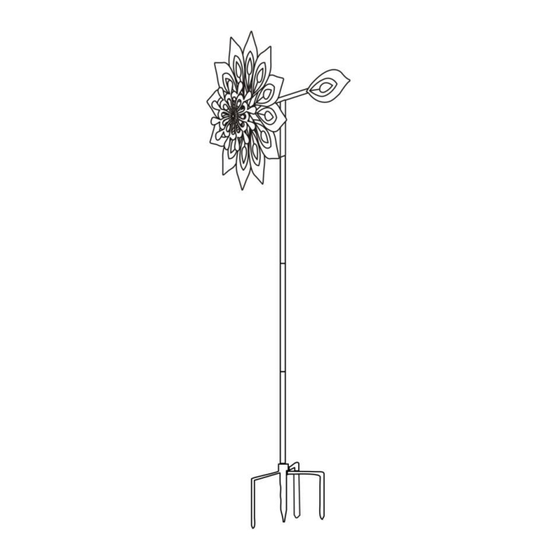

Wind Catcher
customerservice@stylecraft-us.com
Part #
Description
B
Large Blade
D
Sleeve
F
Ring
Two-Prong
I
Stake
K
Top Bar
Quantity
Diagram
1pc
1pc
1pc
1pc
1pc
Advertisement
Table of Contents
Related Manuals for Style Craft GN2735
Summary of Contents for Style Craft GN2735
- Page 1 ITM. / ART. 1900704 Wind Catcher Model #: GN2735 For assistance with assembly or installation, parts and customer service, call toll free: 1-855-766-1880 (US, Canada / English and Spanish only) Monday - Friday 8:00 am - 5:00 pm (Central Time) or email customerservice@stylecraft-us.com...
- Page 2 ASSEMBLY INSTRUCTIONS Step 1: Assemble the Blades: Insert the threaded end of the T-Bar (A) through the middle hole of the Large Blade (B), then apply the Washer (C), the Sleeve (D), the Small Blade (E), the Ring (F). Fasten the assembly by applying the Cap Nut (G). Step 2: Assemble the Bars: A.
- Page 3 TROUBLE SHOOTING If the blade does not spin, make sure the two blades are assembled correctly. The front side of the blades (where the ball bearing is visible) should face outside. The backside of blades (where the ball bearing is covered) should face inside. The two Blades (B &...
