ARTANY Arquivo 4 Gavetas - Y 37 Assembly Instrucons

Manual de Montagem
Assembly Instruc ons

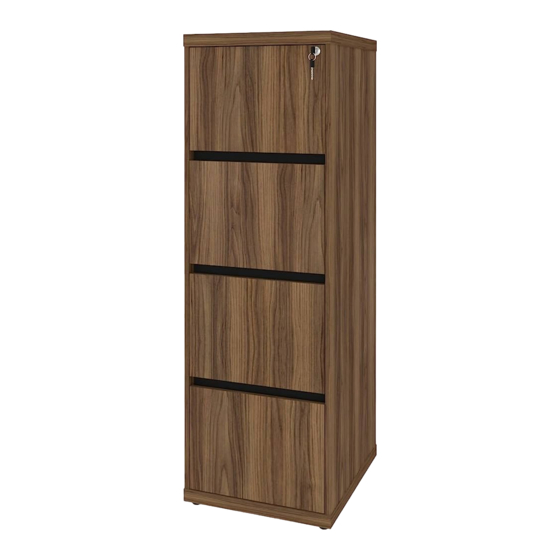

Arquivo 4 Gavetas - Y 37
Y37 – 4 Drawers File Cabinet
Lista de Materiais

Hardware List

A
10
Cavilha
/ Bolt
B
52
Minifix
/ Minifix
C 52
Tambor
/ Minifix Cam
04
D
Batente Tecno
/ Knocker
E
52
Tapa Furo 22mm
/ Hole Cover 22mm
Sapata regulável
04
F
1/4" Flex
/ Adjustable foot ¼"
Bucha sapata
G
04
regulável 1/4" Flex
/ Bushing
01
I Kit Fechadura
Frontal
/ Lock kit
J
08
/ File Rail 380mm
Perfil Pasta Susp. 380mm
K
01
Guia para trava
/ Lock Guide
Instalação Trilho Telescópico
A
Installation of the telescopoc sliders
B
FIXAR O CONJUNTO MAIOR DO TRILHO
NA LATERAL DO PRODUTO. USAR
FURO DO TRILHO.
A ach the larger part of the track on
the side of the product. Use the hole of the track.
A ach the smaller part on the side of the drawer.
C
FIXAR A PARTE MENOR
NA LATERAL DE GAVETA
The spheres of the track must be at the front.
/ 3,5x12mm CC Screw
H
1
Parafuso Ø3,5x12mm CC
/ 3,5x12mm CP Screw
H
2 Parafuso Ø3,5x12mm CP
L
/ Handle 420
Puxador 420 - Y 37
/ Telescopic Slide 400mm
M
Trilho 400 mm
O
Trava 1100mm Arquivo 4G Y 37
/ Lock 1100mm
Peças
01-Tampo
02-Lateral Esq
03-Lateral Dir
62
04-Base
05-Traseira
10
06-Travessa
07-Frente c/ chave
03
08-Frente s/ chave
09-Lateral gaveta
04 10-Traseira gaveta
11-Fundo gaveta
Pieces
01
1- Top
2- Le Side
3- Right side
4- Bo om
5- Back
6- Traverse
7- Front with key
8- Front without key
9- Drawer side
10- Drawer back
Drawer bo om
D
E
F
46cm 50cm
01
02
05
09
10
07
09
11
10
08
09
11
06
10
09
11
08
10
09
11
08
04
Ajustar a gaveta e colocar os parafusos
Adjust the drawer and put the screws
03
