- Page 2 E M P O W E R S Y O U Thank you for choosing our XM-series. www.amarew.com...

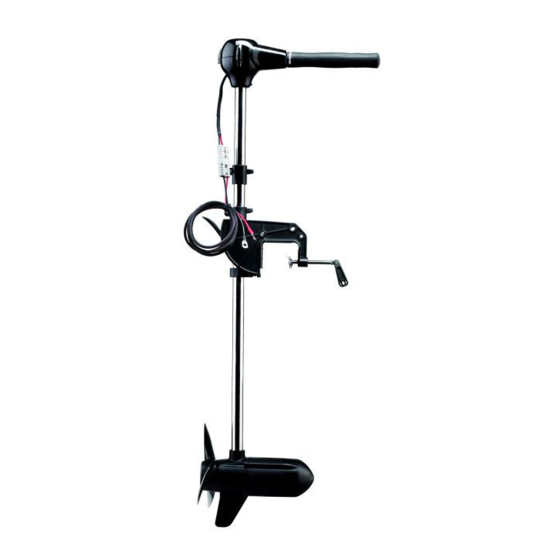

- Page 3 Amarew XM-series product manual Figure A Extendable tiller Battery indicator Power cord plugs Depth adjustment collar Counter force bold Transom mount screws Angle adjustment lever Propeller Battery cable Anode...
-
Page 4: Table Of Contents
Amarew XM-series product manual Table of contents General information p. 4 Safety information p. 4 Benefits p. 4/5 AMAREW® XM Technology p. 5 Usage instructions p. 6/7 Advanced features p. 8 Replacing the propeller p. 8 Calibrating the tiller p. 9 Maintanence p. -
Page 5: General Information
General information Congratulations! Thank you for choosing an AMAREW® electric outboard motor. We hope you will love using it. AMAREW® electric outboard motors are designed and developed by our specialized engineering team. After years of effort, we have succeeded in producing superior electric outboard motor series that fit various customers’... -
Page 6: Amarew Xm Technology
6. Robust mounting system: AMAREW® XM-series are designed with durability in mind. Especially the mounting system, which we have introduced, is very strong. 7. Stall protection: AMAREW® XM-series are unlike many others on the market, because they come fitted with the latest AMAREW® XM stall protection technology. -
Page 7: Usage Instructions
Amarew XM-series product manual Usage instructions Figure B Propeller installment: Make sure the propeller and the pin are aligned correctly. Otherwise the propeller cannot be properly fixed. Place the propeller, washer and locknut respectively. Then hold the propeller with one hand and use a... - Page 8 Amarew XM-series product manual Connecting a battery: Before connecting the motor’s cables to the battery terminals, ensure that the tiller is in the zero (“↓”) position and stand clear of the propeller. Make sure that the battery terminals are clean, as a clean connection will minimize power waste and extracts maximum power from the battery.
-
Page 9: Advanced Features
Amarew XM-series product manual Advanced features 1. Low voltage protection: When the voltage displayed is below 10V (XM80) or 20V (XM120 or higher), the motor will enter the low voltage protection mode: power output will be reduced to 50% in order to protect the battery. -
Page 10: Calibrating The Tiller
Amarew XM-series product manual Calibrating the tiller If the “dido” sound does not go off when the motor and the battery(ies) are connected, even with the tiller handle in the zero position, open the top cover and check if the screw of the potentiometer is loose. -
Page 11: Trouble Shooting
Amarew XM-series product manual Trouble shooting... -
Page 12: Technical Data
Amarew XM-series product manual Technical data... -
Page 13: Year Warranty
3 Year warranty Limited warranty coverage (1 year) AMAREW® warrants its products against defects in material or workmanship. This warranty offers coverage for one year from the date of purchase, depending on the specific parts for which warranty is requested (see the table below). The reference for the coverage period is the product serial number together with your original proof of purchase. - Page 14 AMAREW®, or the modification and/or removal of parts. The following table provides information about which parts are covered by warranty...
