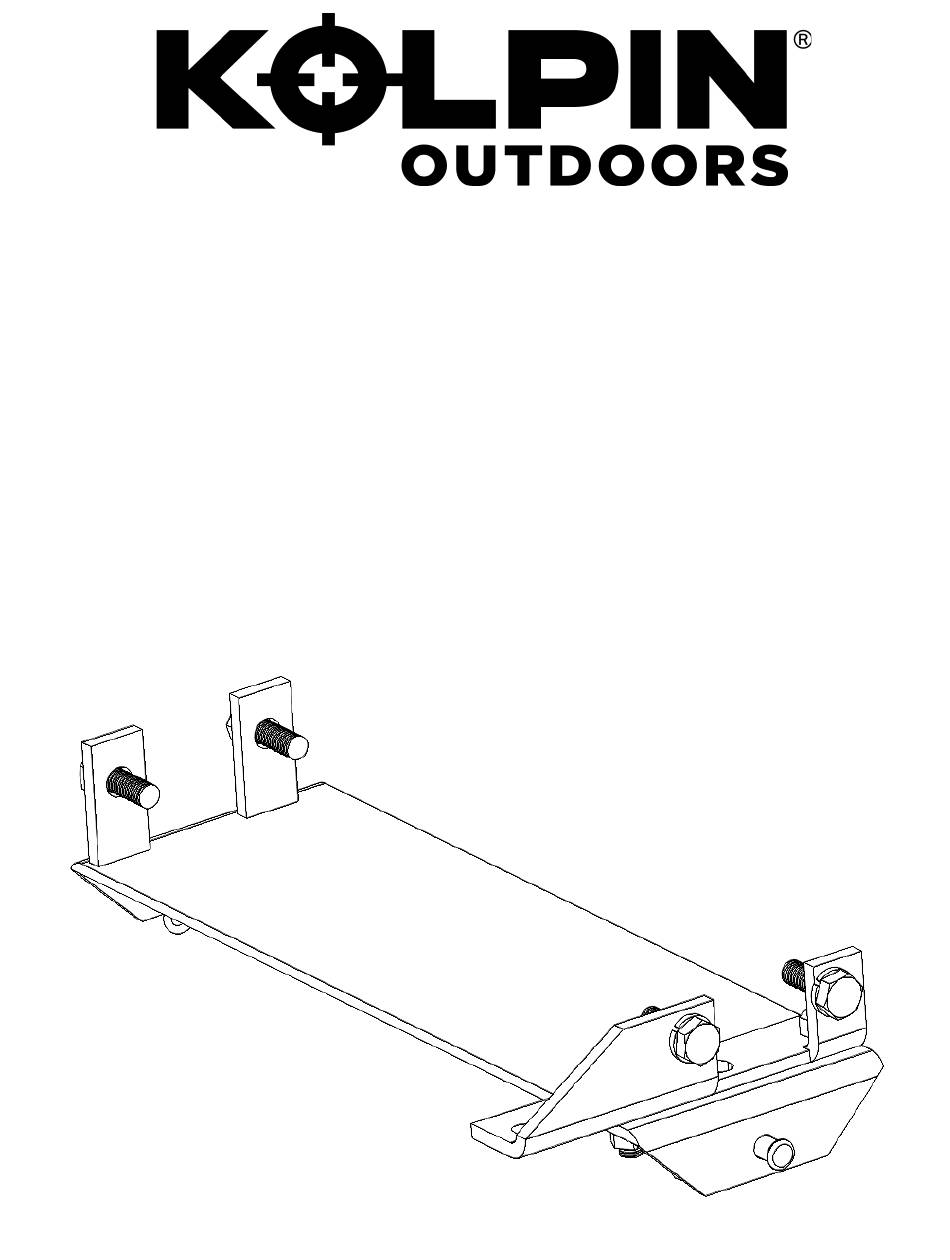

MID-MOUNT KIT
FOR YAMAHA ATV's
P/N 15-5520
ASSEMBLY / OWNERS MANUAL
Application
PLOW PUSH FRAME NO. 15-0070, 33-0000 or 33-0070
Before you begin, please read these instructions and check to be sure all parts and tools are ac-
counted for. The following instructions contain details required to install and service the contents of
this kit.
© 2017 Kolpin Outdoors Inc.
REV 07
Advertisement
Table of Contents
Related Manuals for Kolpin Outdoors 15-5520
Summary of Contents for Kolpin Outdoors 15-5520
- Page 1 Before you begin, please read these instructions and check to be sure all parts and tools are ac- counted for. The following instructions contain details required to install and service the contents of this kit. © 2017 Kolpin Outdoors Inc. REV 07...
- Page 2 IN UP POSITION. DO NOT ATTEMPT TO RAISE BLADE BY HAND; USE THE LIFT MECHANISM ONLY. LOWER BLADE TO DOWN POSITION WHEN BLADE AND ATV/UTV ARE NOT IN USE. READ BLADE'S INSTRUCTION SHEETS AND ATV/UTV OWNER MANUAL. © 2017 Kolpin Outdoors Inc. REV 07...
- Page 3 Hex Bolt, Zinc Plated, M10-1.25 x 30mm Lockwasher, Zinc Plated, M10 Hex Bolt, Zinc Plated, M10-1.5 x 25mm Hex Locknut, Zinc Plated, M10-1.5 Clevis Pin, Zinc Plated, 10mm x 35mm Hair Pin, Zinc Plated, #3 Instruction Guide (not shown) © 2017 Kolpin Outdoors Inc. REV 07...
- Page 4 Hex Bolt, Zinc Plated, M10-1.25 x 30mm Lockwasher, Zinc Plated, M10 Hex Bolt, Zinc Plated, M10-1.5 x 25mm Hex Locknut, Zinc Plated, M10-1.5 Clevis Pin, Zinc Plated, 10mm x 35mm Hair Pin, Zinc Plated, #3 © 2017 Kolpin Outdoors Inc. REV 07...
- Page 5 Place the mount plate assembly under the ATV so the four bolts holes line up with the four bolts on the ATV. Secure mount plate to ATV using the four bolts, item #3, and lockwashers, item #4, as shown. Tighten bolts to specification. 10MM FASTENER TORQUE: 30 ft. lbs. (41 Nm) © 2017 Kolpin Outdoors Inc. REV 07...
- Page 6 8.8 specification. Kolpin Outdoors, Inc. Kolpin Outdoors, Inc. Telephone: (763)-478-5800 Telephone: (763)-478-5800 Toll Free: (877)-956-5746 Toll Free: (877)-956-5746 Fax Number: (800)-245-7569 Fax Number: (800)-245-7569 www.kolpin.com www.kolpin.com Email: customerservice@kolpin.com Email: customerservice@kolpin.com © 2017 Kolpin Outdoors Inc. REV 07...
