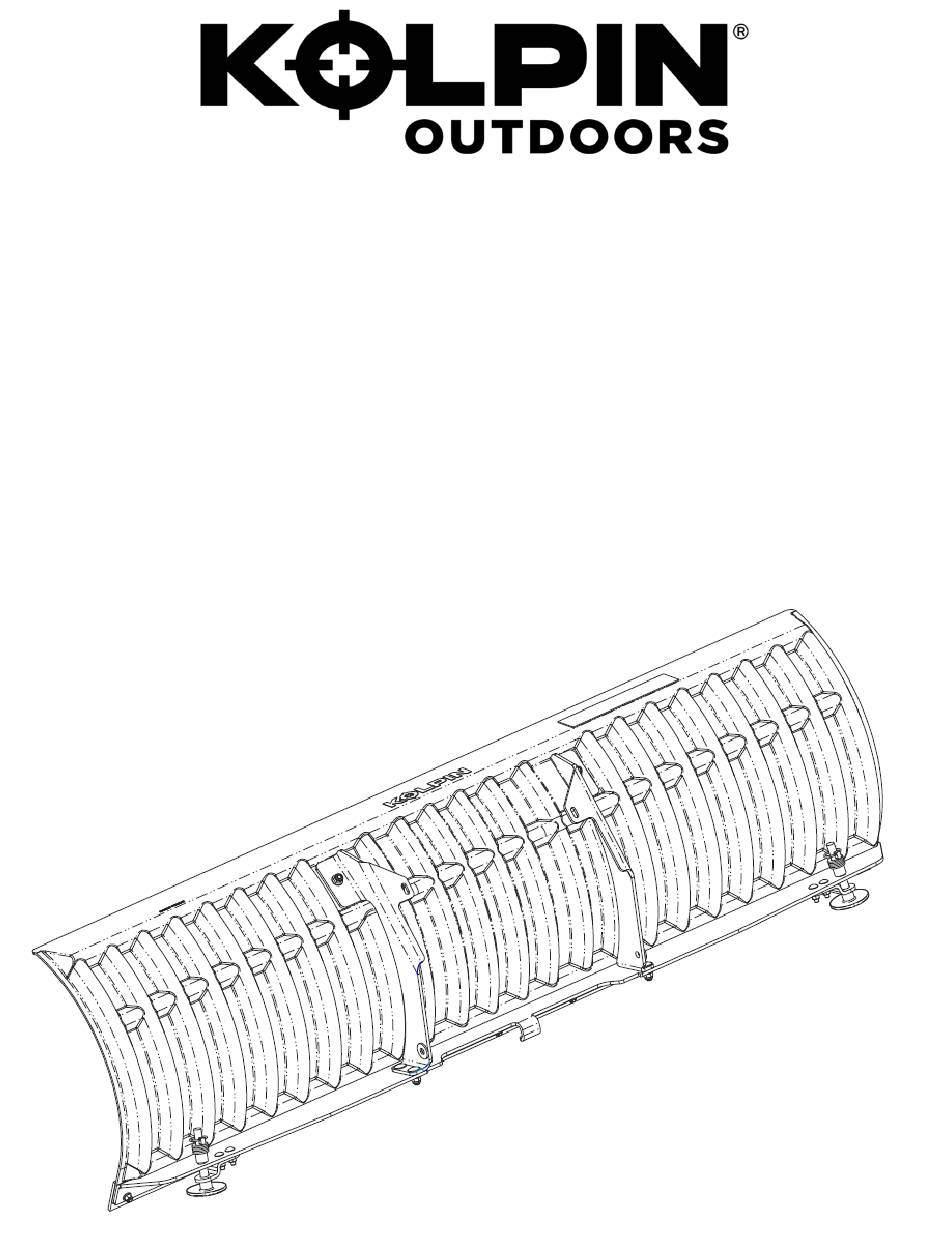

POLY BLADE KIT
P/N 31-2060 / 31-2072
ASSEMBLY / SPARE PARTS MANUAL
Application
PLOW PUSH FRAME NO. 33-0000, 33-0070, 34-0000 or 34-0070
Before you begin, please read these instructions and check to be sure all parts and tools are
accounted for. The following instructions contain details required to install and service the contents
of this kit.
© 2019 Kolpin Outdoors Inc.
REV 00
Advertisement
Table of Contents
Related Manuals for Kolpin Outdoors 31-2060
Summary of Contents for Kolpin Outdoors 31-2060
- Page 1 POLY BLADE KIT P/N 31-2060 / 31-2072 ASSEMBLY / SPARE PARTS MANUAL Application PLOW PUSH FRAME NO. 33-0000, 33-0070, 34-0000 or 34-0070 Before you begin, please read these instructions and check to be sure all parts and tools are accounted for. The following instructions contain details required to install and service the contents of this kit.
- Page 2 BEFORE ADJUSTING BLADE: STOP ATV ENGINE; SET AND LOCK BRAKES; RAISE AND LOCK BLADE LOWER BLADE TO DOWN POSITION WHEN BLADE AND ATV ARE NOT IN USE READ BLADE INSTRUCTION SHEETS AND ATV OWNER’S MANUAL © 2019 Kolpin Outdoors Inc. REV 00...
- Page 3 31-2060 / 31-2072 Kit Contents: © 2019 Kolpin Outdoors Inc. REV 00...
- Page 4 31-2060 / 31-2072 Kit Contents (continued): Item Qty Part Description Part Number 60” Rear Angle Blade Support 72” Rear Angle Blade Support 60” Plastic Moldboard Blade 31-2060-CP01 72” Plastic Moldboard Blade 31-2072-CP01 60” Wear Bar, Double Sided 31-2160 72” Wear Bar, Double Sided 31-2172 Carriage Bolt, Zinc Plated, M10-1.50 X 30mm LG...
- Page 5 • USE AND CARE INFORMATION: Note: The wear bar cutting edge is double-sided, so when bottom side wears thin, flip the bar over and use the top side for extended cutting edge life. © 2019 Kolpin Outdoors Inc. REV 00...
- Page 6 M8 carriage bolts (item #10) as shown. Fasten using M8 locknuts (item #7). (See illustration 1-3). 4. Torque M8 fasteners to specification. 8MM FASTENER TORQUE: 17 ft. lbs. (23 Nm) Ill. 1-3 © 2019 Kolpin Outdoors Inc. REV 00...
- Page 7 Set the skids even with the wear bar cutting edge for level surfaces such as concrete or asphalt. For irregular surfaces, lower the skids to raise the wear bar cutting edge. © 2019 Kolpin Outdoors Inc. REV 00...
- Page 8 Most hardware is general in nature and is easily obtained locally. Be sure to replace with minimum metric class 8.8 specification. Kolpin Outdoors, Inc. Telephone: (763)-478-5800 Toll Free: (877)-956-5746 Fax Number: (800)-245-7569 www.kolpin.com Email: customerservice@kolpin.com © 2019 Kolpin Outdoors Inc. REV 00...
