Summary of Contents for Storyteller Overland MODE 2022

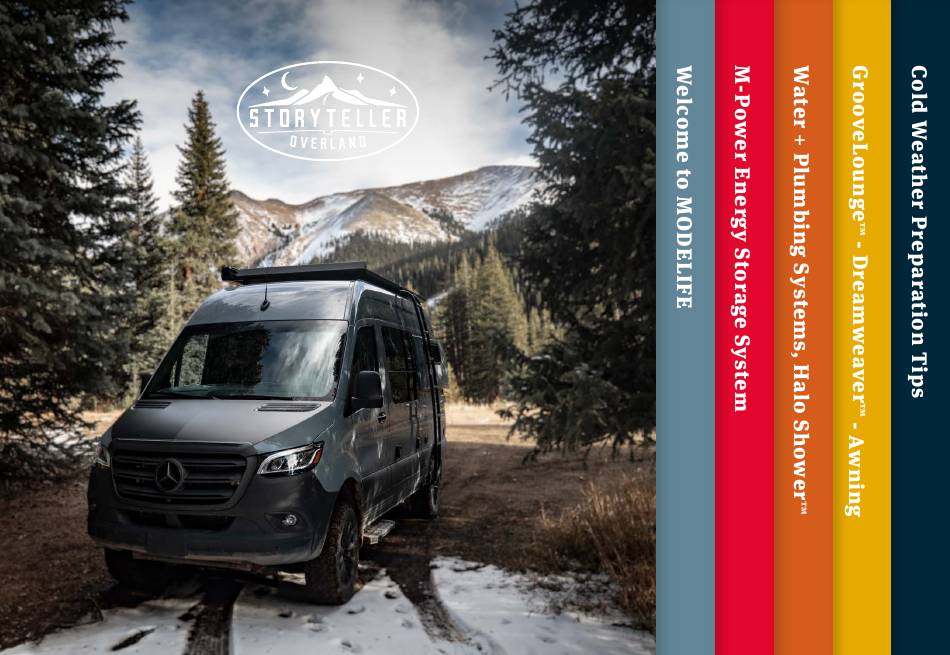

- Page 1 2022 QUICK START GUIDE...
- Page 2 Welcome to MODELIFE!
- Page 3 LIVE FREE. EXPLORE ENDLESSLY. TELL BETTER STORIES. This Quick Start Guide should be a handy tool for basic information about the MODE. For more thorough information, check out the full User Guide provided with the vehicle and available on StorytellerOverland.com.
- Page 4 Power up the M-Power Energy Storage System (ESS) Push the Volta button to turn on the M-Power ESS to operate such things as the cabin lights, outlets, water systems, heating and cooling. Check the state of charge. Do not leave the M-Power System completely depleted.
- Page 5 Charge the M-Power System Option 1 Plug into shore power. The system will automatically charge when plugged into shore power. The charge rate can be changed from the Volta screen and should be set 5A below the shore power available to avoid tripping the shore power circuit.
- Page 6 MODE COM Control System With M-Power on, touch the MODE COM screen anywhere to wake it up. Touch the Storyteller icon to put the screen to sleep. Turn on the lights Lights can be controlled through the MODE COM screen or switches located throughout the vehicle.
- Page 7 Cabin Climate Control Select A/C or Heat from the MODE COM home screen, then set your target temp using the UP/DOWN arrows. Remember, the inverter must be on to run the A/C. The heating system takes a few minutes to reach operating temperature. ✦...
- Page 8 Water + Plumbing Systems Using the fresh water system Fill fresh water tank by connecting water supply to the exterior Freshwater Connection port. On the Water Control Panel, point the Siphon Port handle up and the External Port handle to the left. Always use a 45psi pressure regulator and water filter (not supplied with the RV).
- Page 9 Use fresh water from the tank by pointing the Siphon Port handle up and the External WATER CONTROL PANEL Port handle pointed up. Turn on the Water Pump to use water from the fresh water SIPHON PORT tank. Keep the water pump off when not TO USE FRESH WATER...
- Page 10 Halo Shower Open the shower cabinet front panel. Locate and release the lower panel screw latches to open the lower panel. Release the shower curtain holding straps. Holding the shower hose out of the way, pull the shower curtain frame outward. Place the shower head and hose inside the curtain and hang them on the shower head holder.
- Page 11 Using the Sink Drain Pump Press the Sink Drain Pump button to empty the sink into the gray water tank. Stop pressing the sink drain pump when the noise changes. Running the pump without water in the drain line will damage the pump. Empty the gray water tank Unscrew the cap, connect the waste water hose.
- Page 12 Use the GrooveLounge Always use seat belts while the vehicle is moving. To use child restraint systems, the provided locking clip must be used. Pull handles to tilt panels and transform the seat into a lounge or bed. Be careful not to let the seat cushion impact the driver’s seat.
- Page 13 Set up the work surface After setting up the driver’s side bed panel and support legs, remove the cushion to use the easy clean work surface. Never leave bed panels unsupported by the legs. This will damage the bed system. Open the awning AWNING AWNING...
- Page 14 COLD WEATHER PREPARATION TIPS...
- Page 15 If the plumbing system is not winterized and the onboard water freezes, damage may occur. Help protect the plumbing by running the cabin heat set to at least 60 degrees. ✦ When driving, keep the graywater tank warm by activating Hot Water. ✦...
- Page 16 Roadside Assistance - Technical Support Should I contact Storyteller Overland or the chassis manufacturer? For help with Storyteller components (Sections in blue) Contact Storyteller Overland 1-888-999-7422 For help with chassis components (Sections in yellow) Contact your nearest chassis dealership. We are committed to our customers well after the purchase of the vehicle. Should you need service or technical assistance, please reach out at StorytellerOverland.com under Customer Support for the fastest...
